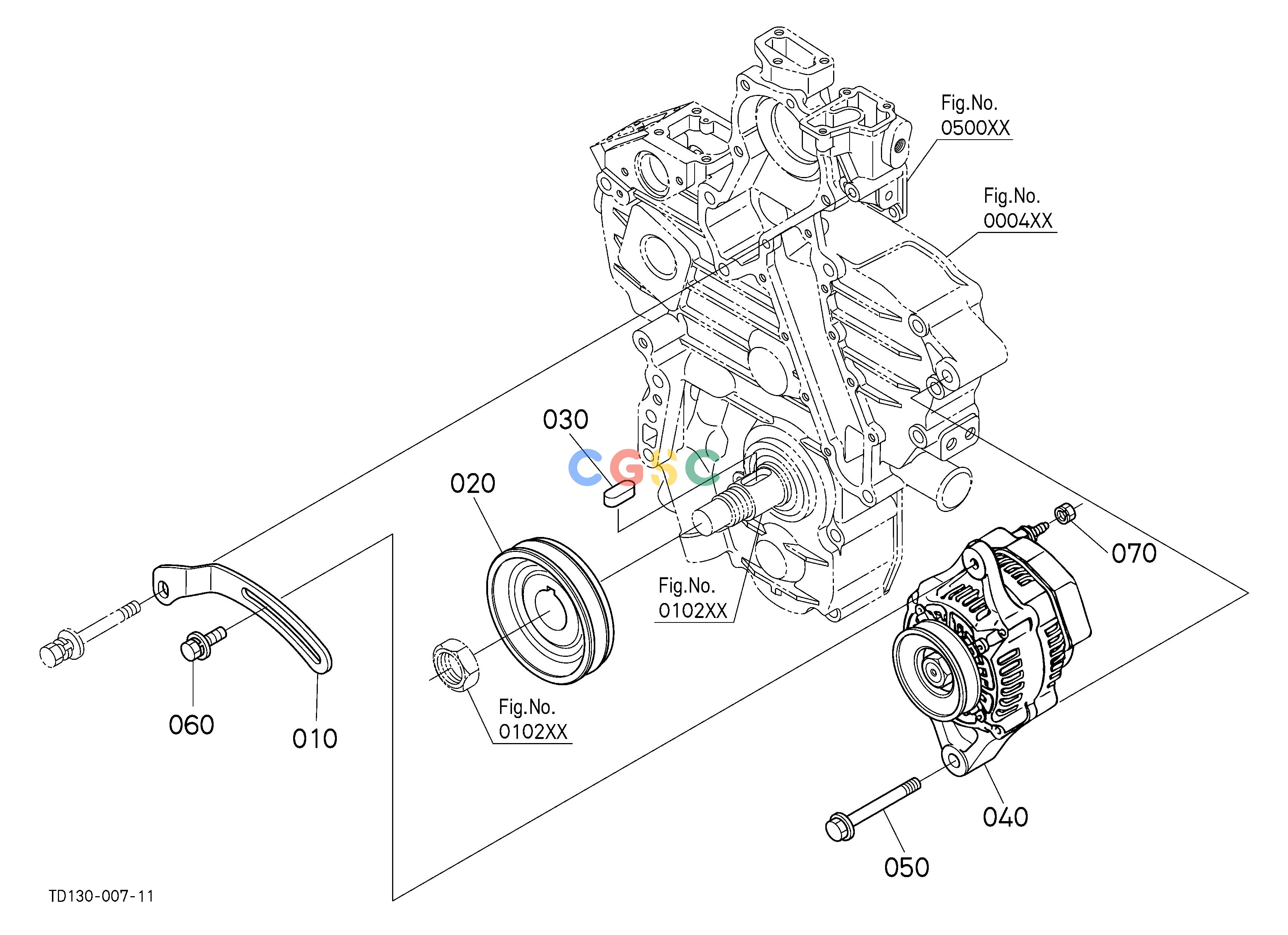

久保田零件查询A51501 ALTERNATOR[EXCEPT HST TYPE] ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
321 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1A03364420
|
[1] |
STAY,DYNAMO
|
0.2970(lbs); 0.135
|
| 020. |
1G42274280
|
[1] |
PULLEY,FAN DRIVE
|
3.8280(lbs); 1.740
|
| 020. |
1G79074280
|
[1] |
PULLEY,FAN DRIVE
|
2.0900(lbs); 0.950
|
| 030. |
0571200720
|
[1] |
KEY,FEATHER
|
0.0176(lbs); 0.008
|
| 040. |
T106015682
|
[1] |
ASSY ALTERNATOR
|
6.7100(lbs); 3.050
|
| 050. |
0175451070
|
[1] |
BOLT,FLANGE
|
0.0220(lbs); 0.010
|
| 060. |
0112750830
|
[1] |
BOLT
|
0.0506(lbs); 0.023
|
| 070. |
1226492020
|
[1] |
NUT,SPRING WASHER
|
0.1100(lbs); 0.050
|
