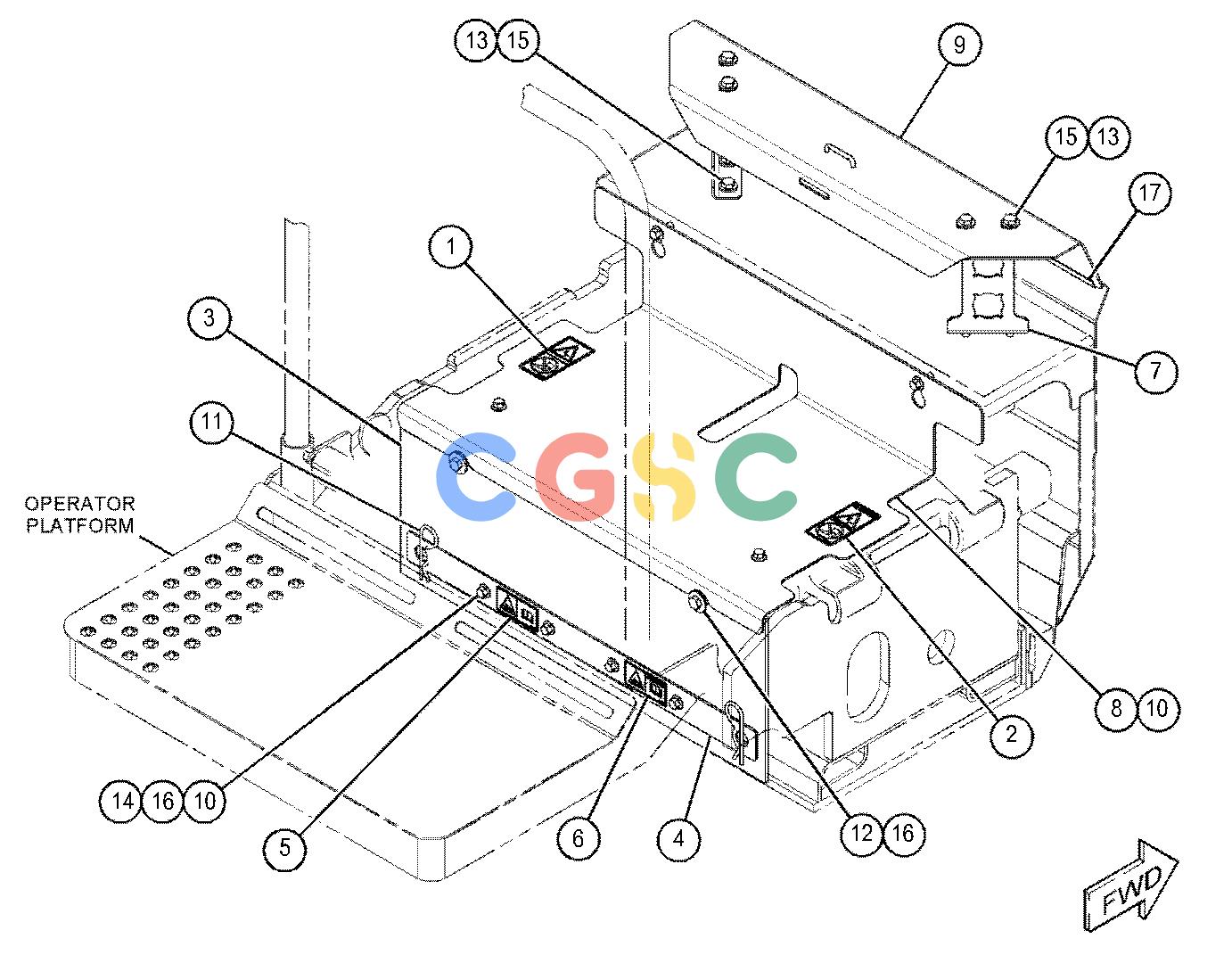

卡特零件查询（AP655F） 477-2635: COVER GP-SCREED
广数供应链运营团队, 17 02月, 2025，浏览：
959 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 242-5054 | [1] | FILM-WARNING(NO STEP) | |
| 2. | 242-5055 | [1] | FILM-WARNING(NO STEP) | |
| 3. | 453-7977 | [1] | COVER-RUBBER | |
| 4. | 462-0448 | [1] | PLATE | |
| 5. | 462-0583 | [1] | FILM-WARNING(ENTANGLEMENT HAZARD, STAY BACK) | |
| 6. | 462-0584 | [1] | FILM-WARNING(ENTANGLEMENT HAZARD, STAY BACK) | |
| 7. | 469-8340 | [1] | COVER | |
| 8. | 470-6460 | [2] | BRACKET AS | |
| | 8T-3490M | [2] | NUT-WELD(M10X1.5-THD) | |
| 9. | 474-3127 | [1] | COVER AS-PLATFORM | |
| 10. | 342-9914M | [8] | BOLT-FLANGE HEAD(M10X1.5X25-MM) | |
| 11. | 5P-8837 | [2] | LOCK PIN | |
| 12. | 7X-2621M | [2] | BOLT(M10X1.5X12-MM) | |
| 13. | 7X-7729 | [8] | WASHER(11X25X3-MM THK) | |
| 14. | 8T-0389M | [4] | LOCKNUT(M10X1.5-THD) | |
| 15. | 8T-4137M | [8] | BOLT(M10X1.5X20-MM) | |
| 16. | 8T-4222 | [6] | WASHER-PLATED(11X32X2.5-MM THK) | |
| 17. | 7X-7877E | | STRIP-EDGE(71-CM) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
