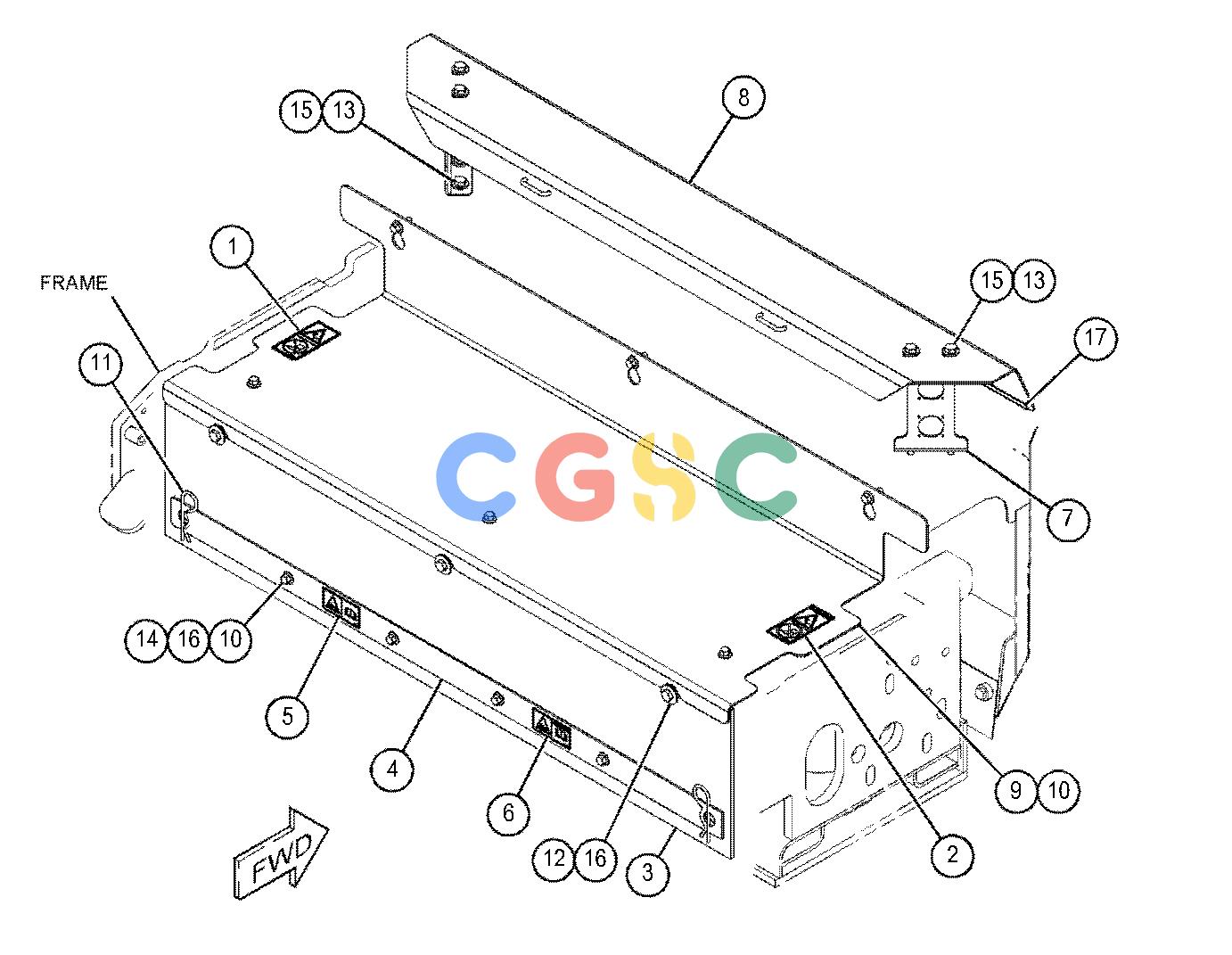

卡特零件查询（AP655F） 477-3120: COVER GP-SCREED
广数供应链运营团队, 17 02月, 2025，浏览：
477 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 242-5054 | [1] | FILM-WARNING(NO STEP) | |
| 2. | 242-5055 | [1] | FILM-WARNING(NO STEP) | |
| 3. | 453-7978 | [1] | COVER-RUBBER | |
| 4. | 462-0449 | [1] | PLATE | |
| 5. | 462-0583 | [1] | FILM-WARNING(ENTANGLEMENT HAZARD, STAY BACK) | |
| 6. | 462-0584 | [1] | FILM-WARNING(ENTANGLEMENT HAZARD, STAY BACK) | |
| 7. | 470-6460 | [2] | BRACKET AS | |
| | | | (EACH INCLUDES) |
| | 8T-3490M | [2] | NUT-WELD(M10X1.5-THD) | |
| 8. | 472-4080 | [1] | COVER AS-PLATFORM | |
| | 417-0628 | [2] | LINK | |
| 9. | 473-6463 | [1] | COVER | |
| 10. | 342-9914M | [10] | BOLT-FLANGE HEAD(M10X1.5X25-MM) | |
| 11. | 5P-8837 | [2] | LOCK PIN | |
| 12. | 7X-2621M | [3] | BOLT(M10X1.5X12-MM) | |
| 13. | 7X-7729 | [8] | WASHER(11X25X3-MM THK) | |
| 14. | 8T-0389M | [4] | LOCKNUT(M10X1.5-THD) | |
| 15. | 8T-4137M | [8] | BOLT(M10X1.5X20-MM) | |
| 16. | 8T-4222 | [7] | WASHER-PLATED(11X32X2.5-MM THK) | |
| 17. | 7X-7877E | | STRIP-EDGE(121-CM) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
