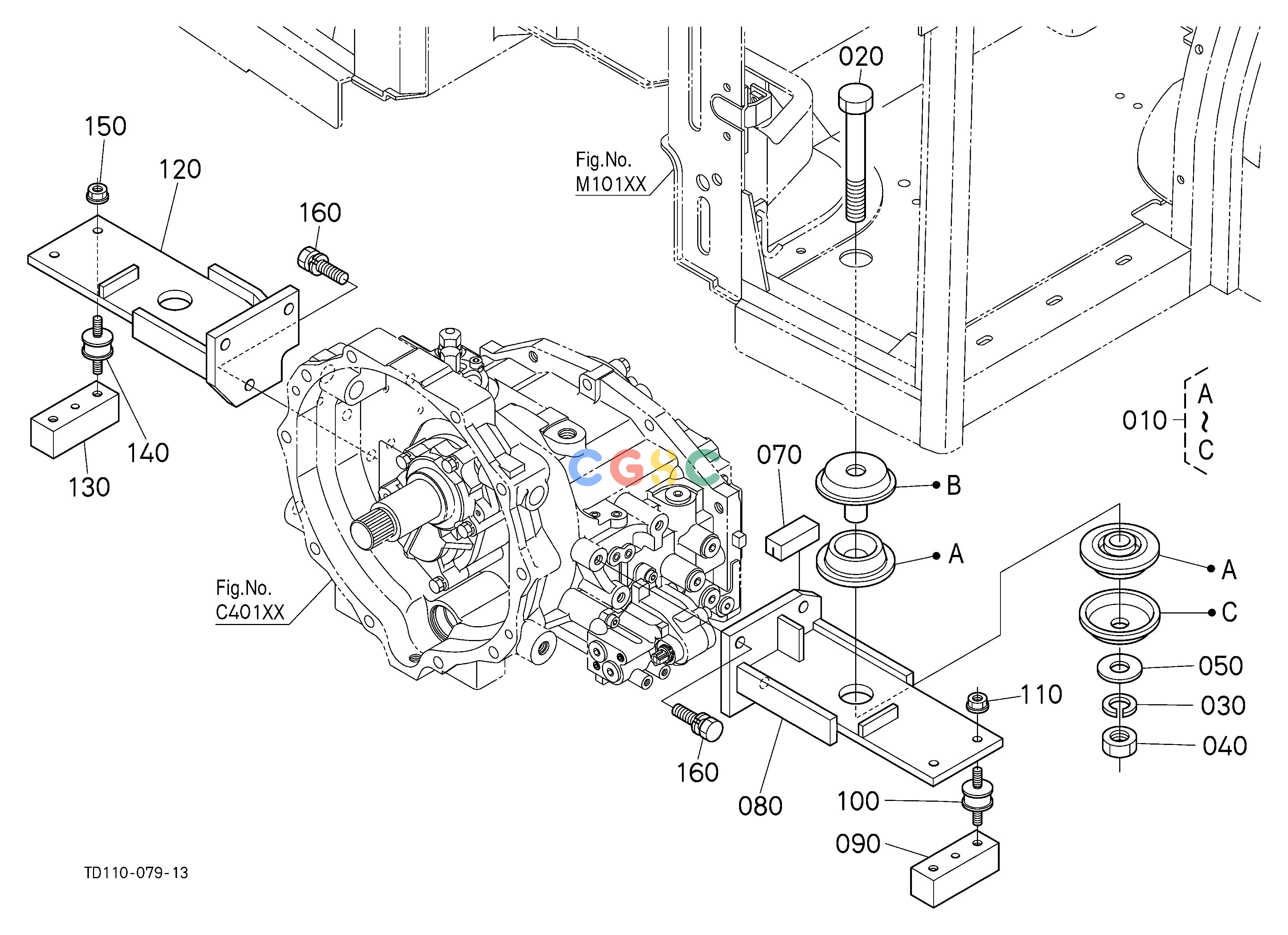

久保田零件查询M16101 CAB BRACKET FRONT CABEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
940 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TD17071732
|
[2] |
ASSY RUBBER
|
1.0670(lbs); 0.485
|
| 020. |
0117351402
|
[2] |
BOLT
|
0.2860(lbs); 0.130
|
| 030. |
0451260140
|
[2] |
WASHER,SPRING
|
0.0176(lbs); 0.008
|
| 040. |
0217650140
|
[2] |
NUT
|
0.0308(lbs); 0.014
|
| 050. |
0401360140
|
[2] |
WASHER,PLAIN
|
0.0220(lbs); 0.010
|
| 070. |
4562382850
|
[1] |
RUBBER
|
0.0110(lbs); 0.005
|
| 080. |
TD14071713
|
[1] |
BRACKET,FRONT LH
|
7.4800(lbs); 3.400
|
| 090. |
TD14071062
|
[1] |
DAMPER
|
1.5620(lbs); 0.710
|
| 100. |
TD17071050
|
[2] |
RUBBER
|
0.1210(lbs); 0.055
|
| 110. |
0275150080
|
[2] |
NUT,FLANGE
|
0.0132(lbs); 0.006
|
| 120. |
TD14071722
|
[1] |
BRACKET,FRONT RH
|
7.4800(lbs); 3.400
|
| 120. |
TD14071723
|
[1] |
BRACKET,FRONT RH
|
7.4800(lbs); 3.400
|
| 130. |
TD14071062
|
[1] |
DAMPER
|
1.5620(lbs); 0.710
|
| 140. |
TD17071050
|
[2] |
RUBBER
|
0.1210(lbs); 0.055
|
| 150. |
0275150080
|
[2] |
NUT,FLANGE
|
0.0132(lbs); 0.006
|
| 160. |
0113351230
|
[6] |
BOLT
|
0.0880(lbs); 0.040
|
