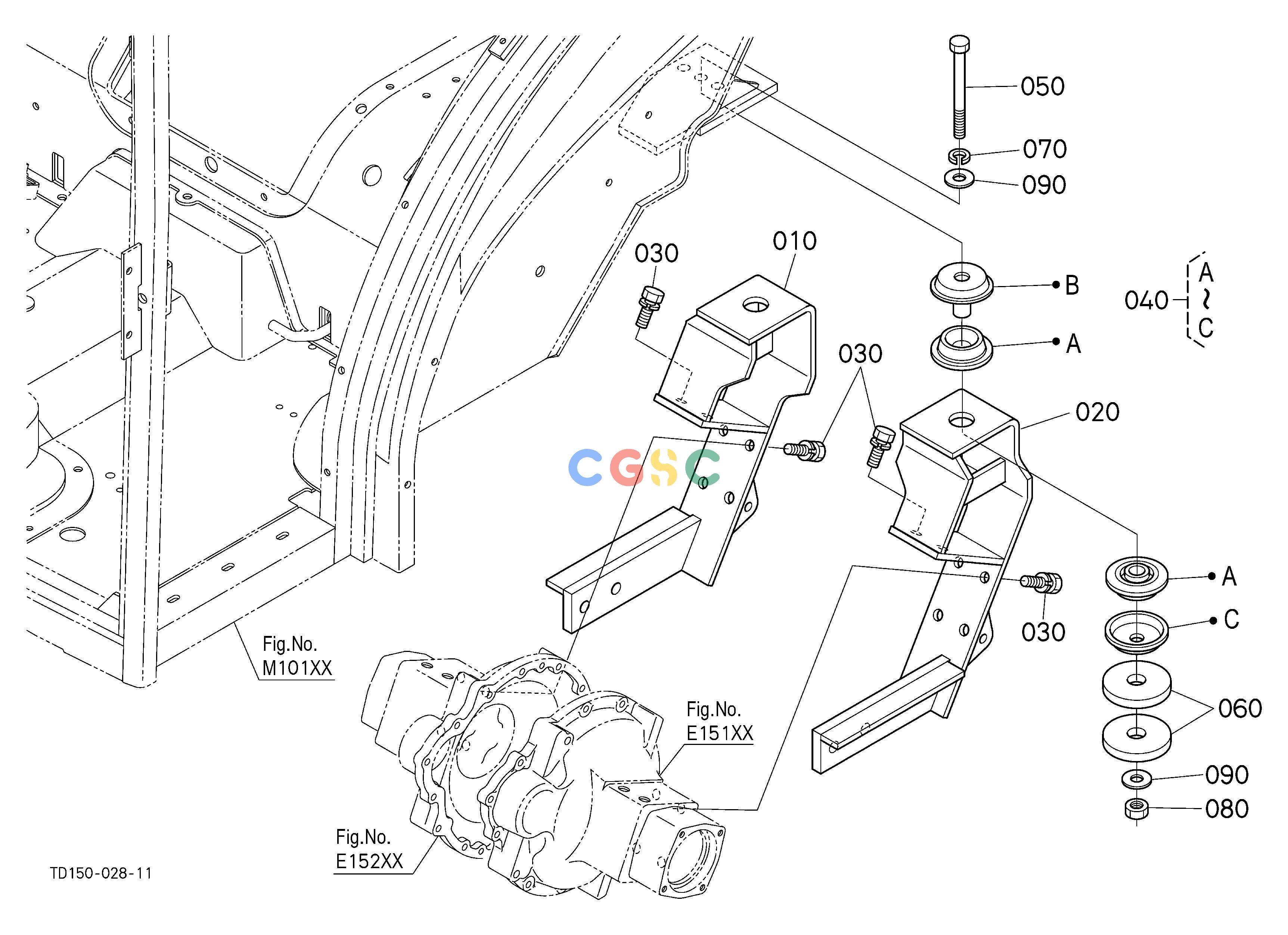

久保田零件查询M16201 CAB BRACKET REAR CABEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
420 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TD05079910
|
[1] |
BRACKET,REAR RH
|
20.0200(lbs); 9.100
|
| 020. |
TD05079920
|
[1] |
BRACKET,REAR LH
|
20.0200(lbs); 9.100
|
| 030. |
0113351430
|
[12] |
BOLT
|
0.1100(lbs); 0.050
|
| 040. |
TD17071750
|
[2] |
ASSY CUSHION,CAB
|
1.0670(lbs); 0.485
|
| 050. |
0117351404
|
[2] |
BOLT
|
0.3300(lbs); 0.150
|
| 060. |
T106570150
|
[4] |
WASHER
|
0.9130(lbs); 0.415
|
| 070. |
0451260140
|
[2] |
WASHER,SPRING
|
0.0176(lbs); 0.008
|
| 080. |
0217650140
|
[2] |
NUT
|
0.0308(lbs); 0.014
|
| 090. |
0401360140
|
[4] |
WASHER,PLAIN
|
0.0220(lbs); 0.010
|
