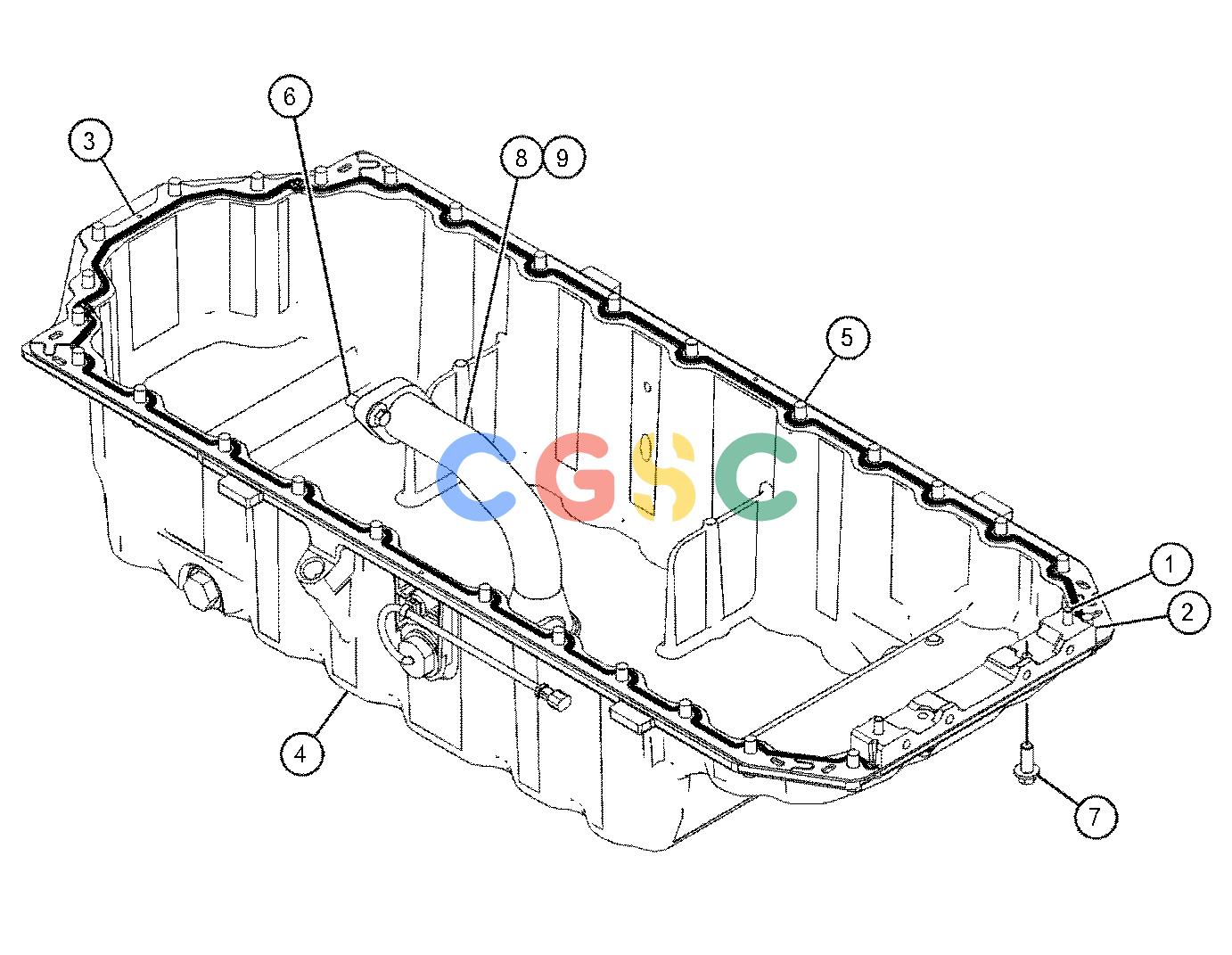

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 6I-0363M | [2] | BOLT(M6X1X20-MM) | |
| 2. | 230-8094 | [1] | BRIDGE | |
| 3. | 351-4749 | [1] | GASKET-OIL PAN | |
| 4. | 461-2841Y | [1] | PAN GP-OIL | |
| 5. | 6I-0217M | [28] | BOLT(M8X1.25X20-MM) | |
| 6. | 6I-0260M | [2] | BOLT(M8X1.25X25-MM) | |
| 7. | 6I-0572M | [2] | BOLT(M8X1.25X20-MM) | |
| 8. | 283-4302 | [1] | TUBE-OIL SUCTION | |
| 9. | 6I-4681 | [1] | GASKET | |
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION | |||
