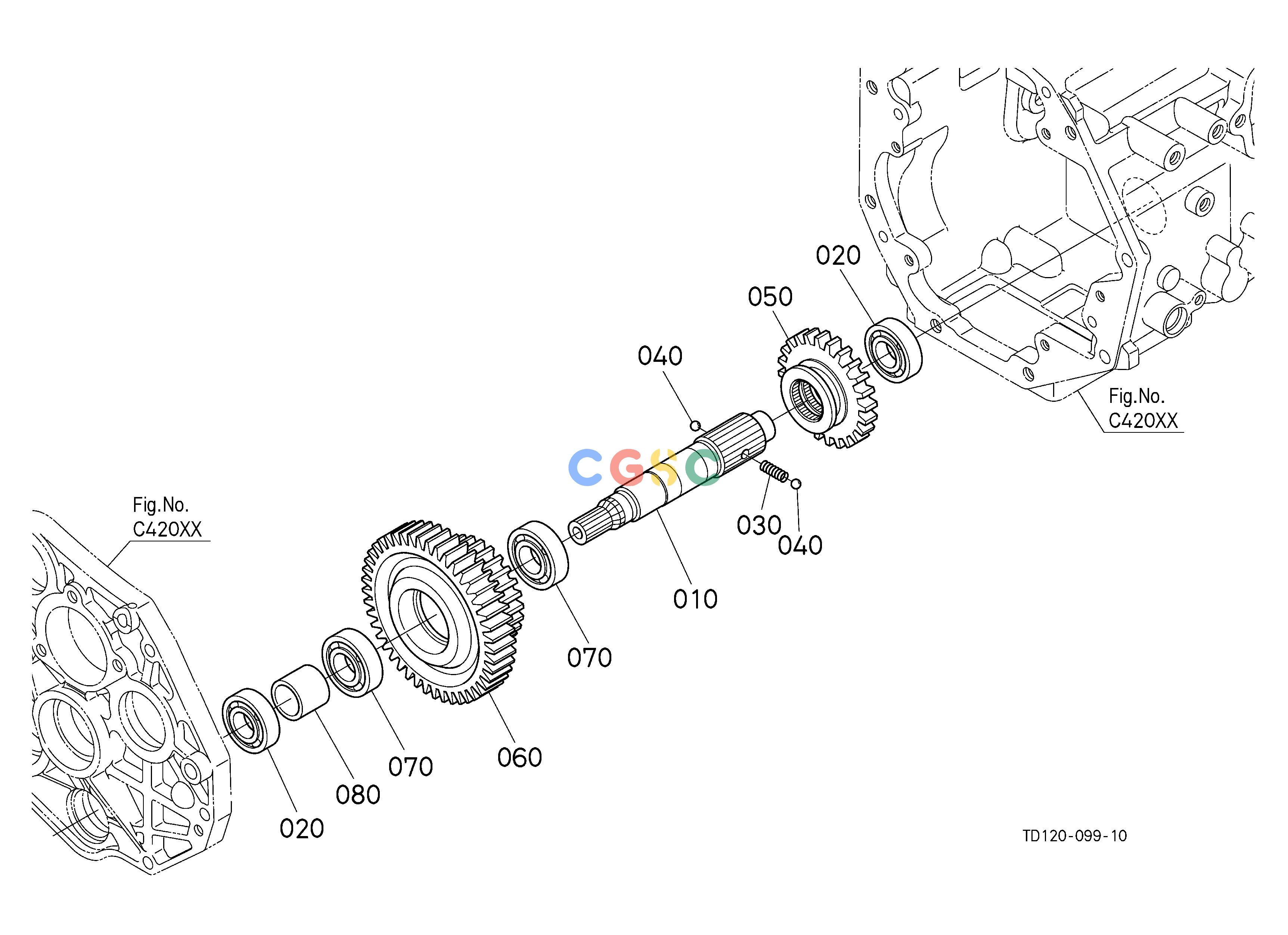

久保田零件查询F12203 FRONT WHEEL DRIVE SHAFT [CA] FRONT AXLE/CHASSISEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
501 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TD13015220
|
[1] |
SHAFT,DT DRIVE
|
2.0790(lbs); 0.945
|
| 020. |
3741057190
|
[2] |
BEARING,BALL
|
0.3080(lbs); 0.140
|
| 030. |
3526024110
|
[1] |
SPRING
|
0.0440(lbs); 0.020
|
| 040. |
0771501605
|
[2] |
BALL
|
0.0066(lbs); 0.003
|
| 050. |
TD17015170
|
[1] |
GEAR,4WD SHIFT
|
1.2870(lbs); 0.585
|
| 060. |
TD03025100
|
[1] |
GEAR,M-PTO
|
5.6100(lbs); 2.550
|
| 070. |
3243025560
|
[2] |
BEARING,BALL
|
0.3960(lbs); 0.180
|
| 080. |
TD03025120
|
[1] |
COLLAR
|
0.1452(lbs); 0.066
|
