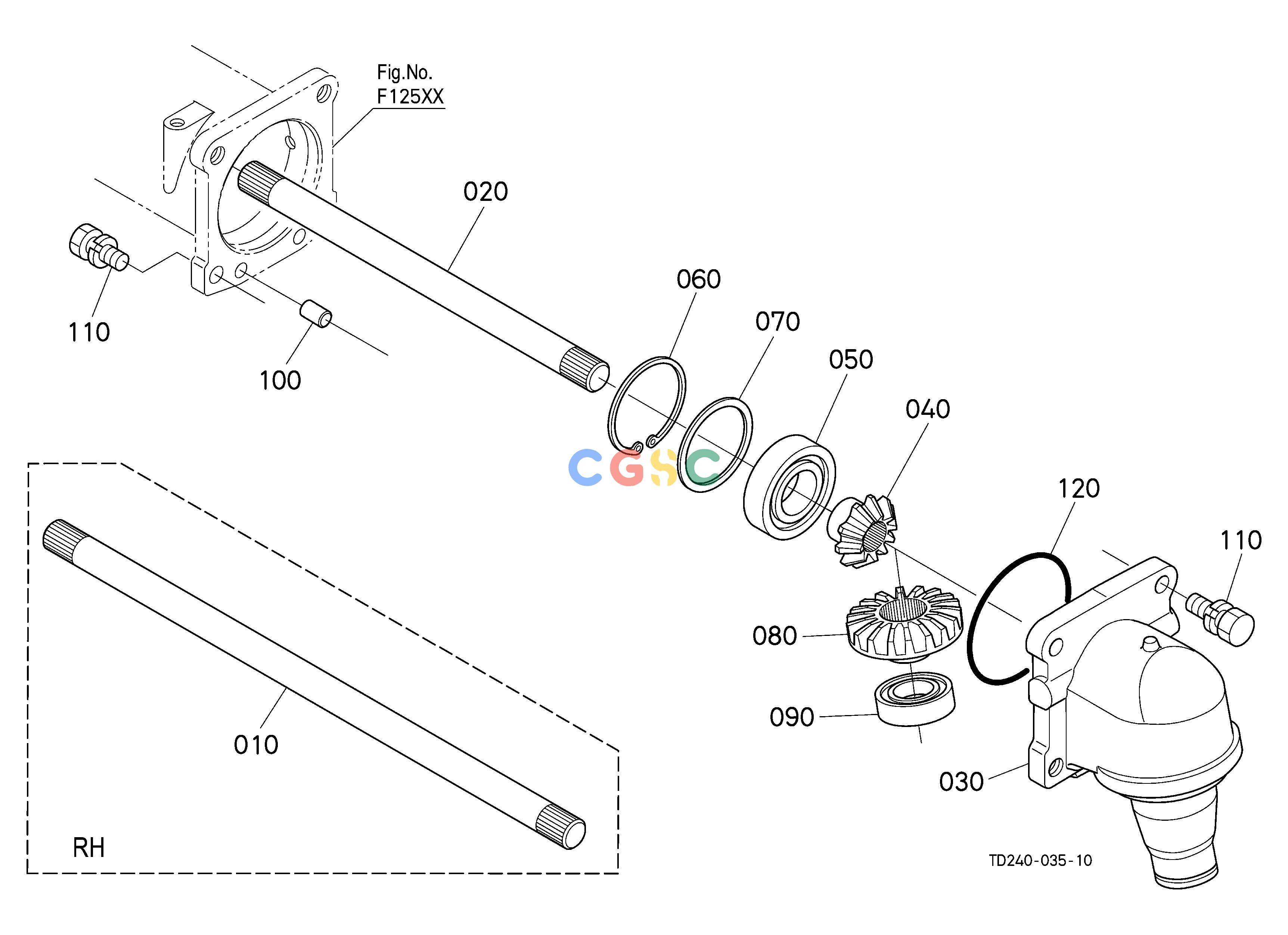

久保田零件查询F14501 BEVEL GEAR SHAFT FRONT AXLE/CHASSISEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
863 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
T007012450
|
[1] |
SHAFT,YOKE LH
|
3.8940(lbs); 1.770
|
| 020. |
T007012460
|
[1] |
SHAFT,YOKE RH
|
2.4200(lbs); 1.100
|
| 030. |
TA14012804
|
[2] |
CASE,BEVEL GEAR
|
9.6800(lbs); 4.400
|
| 040. |
TD13012520
|
[2] |
GEAR,BEVEL
|
0.5148(lbs); 0.234
|
| 050. |
0810106307
|
[2] |
BEARING,BALL
|
0.9680(lbs); 0.440
|
| 060. |
0461100800
|
[2] |
CIR-CLIP,INTERNAL
|
0.0440(lbs); 0.020
|
| 070. |
3135343750
|
[2] |
SHIM
|
0.0176(lbs); 0.008
|
| 070. |
3135343760
|
[2] |
SHIM
|
0.0220(lbs); 0.010
|
| 070. |
3135343770
|
[2] |
SHIM
|
0.0330(lbs); 0.015
|
| 070. |
3135343780
|
[2] |
SHIM
|
0.0308(lbs); 0.014
|
| 070. |
3135343790
|
[2] |
SHIM
|
0.0330(lbs); 0.015
|
| 080. |
TD13012530
|
[2] |
GEAR,BEVEL
|
1.7820(lbs); 0.810
|
| 090. |
0810106207
|
[2] |
BEARING,BALL
|
0.6160(lbs); 0.280
|
| 100. |
3135343880
|
[4] |
PIN,STRAIGHT
|
0.0440(lbs); 0.020
|
| 110. |
0113851435
|
[8] |
BOLT,SEMS
|
0.1386(lbs); 0.063
|
| 120. |
0481151050
|
[2] |
O RING
|
0.0066(lbs); 0.003
|
