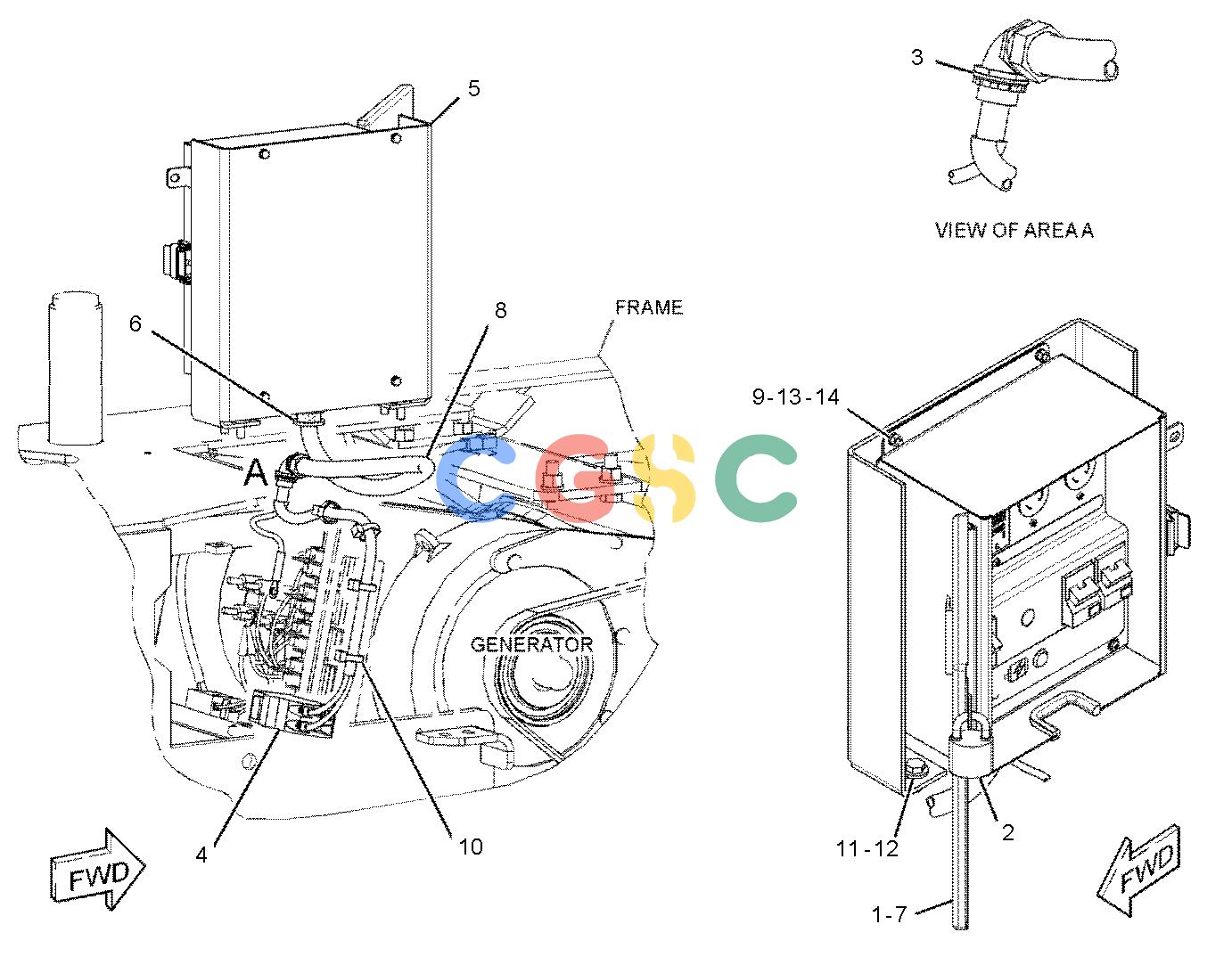

卡特零件查询（BG655D） 283-4417: WIRING GP-PANEL
广数供应链运营团队, 17 02月, 2025，浏览：
633 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3V-4694 | [1] | PLUG-BUTTON | |
| 2. | 246-2641 | [1] | PADLOCK GP | |
| | 5P-8500 | [1] | KEY | |
| 3. | 6Y-6815 | [1] | GASKET AS(CONNECTOR) | |
| 4. | 197-1381 | [1] | CIRCUIT BREAKER AS(35-AMPERE) | |
| 5. | 241-7709 | [1] | PLATE | |
| 6. | 246-8370 | [1] | GROMMET | |
| 7. | 306-7612Y | [1] | PANEL GP-POWER | |
| 8. | 306-7615 | [1] | CABLE AS | |
| | 6Y-6812 | [1] | ELBOW-CONNECTOR | |
| | 6Y-6814 | [1] | CONNECTOR | |
| | 9X-2294E | | CONDUIT-FLEXIBLE(16.05-MM ID)(55-CM) | |
| | 2L-8066 | [1] | TERMINAL-RING(10-GA TO 12-GA, NO. 10 SCREW) | |
| | 2L-8069 | [1] | TERMINAL-RING(2-GA TO 10-GA, 3/8-IN SCREW) | |
| 9. | 5C-2890M | [4] | NUT(M6X1-THD) | |
| 10. | 7K-1181 | [4] | STRAP-CABLE | |
| 11. | 7X-7729 | [4] | WASHER(11X25X3-MM THK) | |
| 12. | 8T-4136M | [4] | BOLT(M10X1.5X25-MM) | |
| 13. | 8T-4138M | [4] | BOLT(M6X1X20-MM) | |
| 14. | 9X-8256 | [8] | WASHER(6.6X12X2-MM THK) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
