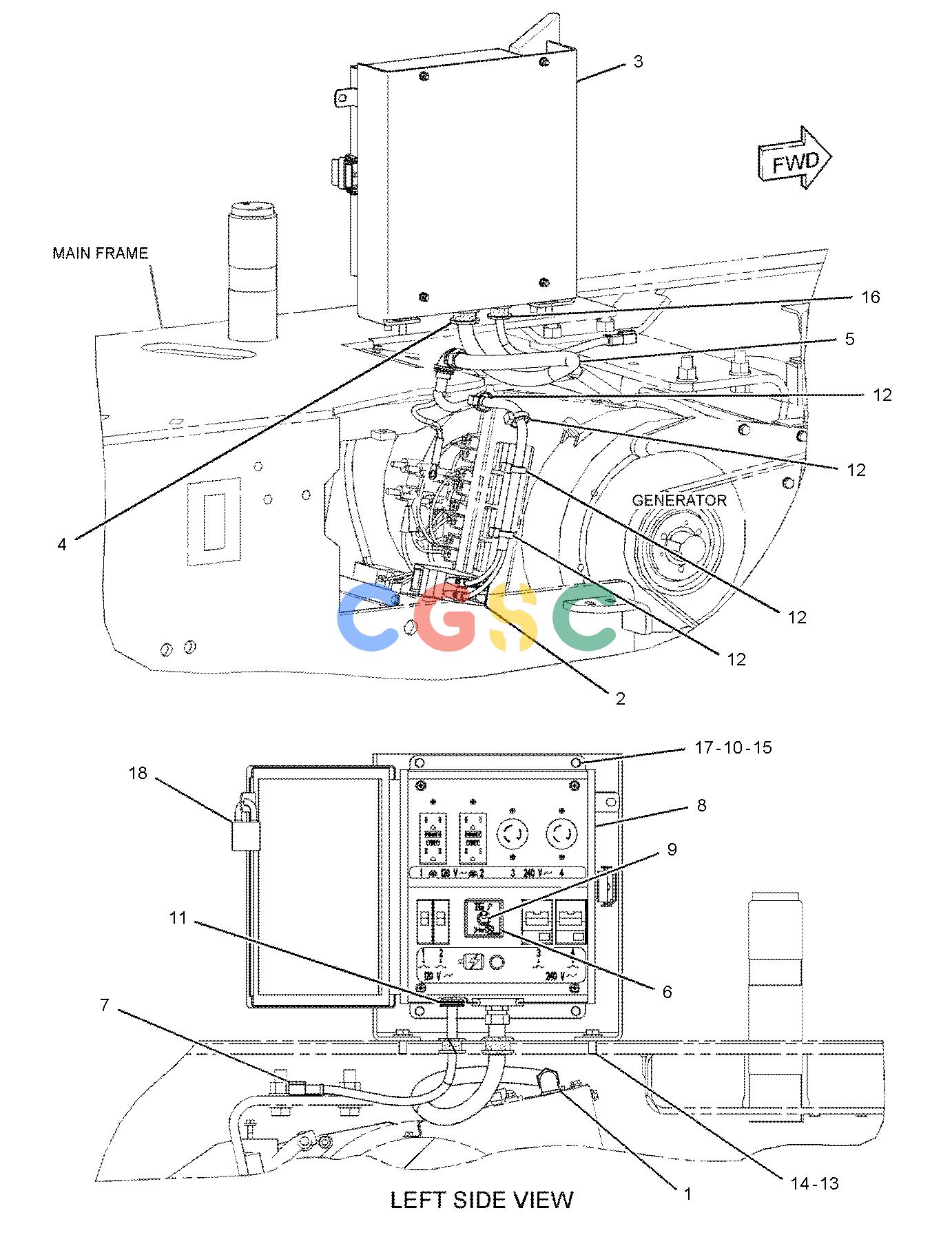

卡特零件查询（BG655D） 302-3912: WIRING GP-POWER RECEPTACLE
广数供应链运营团队, 17 02月, 2025，浏览：
725 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6Y-6815 | [1] | GASKET AS(CONNECTOR) | |
| 2. | 197-1381 | [1] | CIRCUIT BREAKER AS(35-AMPERE) | |
| 3. | 241-7709 | [1] | PLATE | |
| 4. | 246-8370 | [1] | GROMMET | |
| 5. | 306-7615 | [1] | CABLE AS | |
| 6. | 286-7243 | [1] | FILM-INSTRUCTION(HOLD FREQUENCY, READ OMM) | |
| 7. | 302-3911 | [1] | HARNESS AS-SWITCH | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 5P-2321 | [2] | TERMINAL-FORK(14-GA TO 16-GA, NO. 6 SCREW) | |
| | 180-9339 | [2] | PIN-CONNECTOR(14-GA TO 18-GA) | |
| 8. | 306-7612Y | [1] | PANEL GP-POWER | |
| 9. | 4D-1836 | [1] | SWITCH-TOGGLE(HOLD FREQUENCY) | |
| 10. | 5C-2890M | [4] | NUT(M6X1-THD) | |
| 11. | 5P-8440 | [1] | GROMMET | |
| 12. | 7K-1181 | [4] | STRAP-CABLE | |
| 13. | 7X-7729 | [4] | WASHER(11X25X3-MM THK) | |
| 14. | 8T-4136M | [4] | BOLT(M10X1.5X25-MM) | |
| 15. | 8T-4138M | [4] | BOLT(M6X1X20-MM) | |
| 16. | 9G-4191 | [1] | GROMMET | |
| 17. | 9X-8256 | [8] | WASHER(6.6X12X2-MM THK) | |
| 18. | 246-2641 | [1] | PADLOCK GP | |
| | 5P-8500 | [1] | KEY | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
