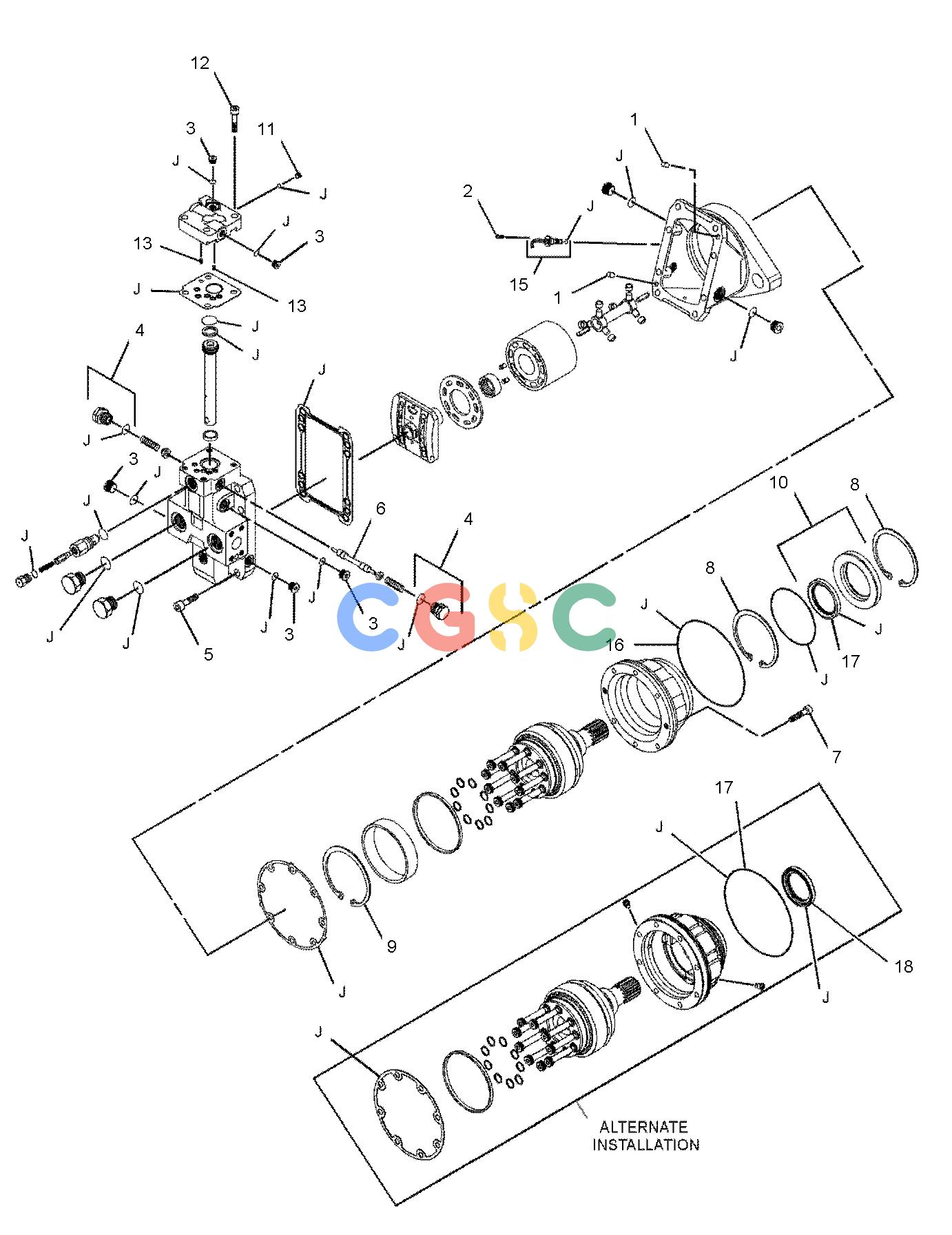

卡特零件查询（BG655D） 291-9119: MOTOR GP-PISTON
广数供应链运营团队, 17 02月, 2025，浏览：
465 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 077-8353 | [2] | PIN(SPRING) | |
| 2. | 8T-0267M | [1] | BOLT-SOCKET HEAD(M6X1X12-MM) | |
| 3. | 9S-8004 | [5] | PLUG(9/16-18-THD) | |
| 4. | 1G-5732 | [2] | PLUG | |
| 5. | 8T-2223M | [8] | BOLT-SOCKET HEAD(M10X1.5X45-MM) | |
| 6. | 1G-5735 | [1] | SPOOL | |
| 7. | 6V-8337M | [8] | BOLT-SOCKET HEAD(M8X1.25X35-MM) | |
| 8. | 8T-0707 | [2] | RING-RETAINING(INTERNAL) | |
| 9. | 9T-2584 | [1] | RING-RETAINING(INTERNAL) | |
| 10. | 192-5474 | [1] | CARRIER-SEAL | |
| 11. | 132-9257 | [1] | PLUG | |
| 12. | 159-3040M | [4] | BOLT-SOCKET HEAD(M12X1.5X45-MM) | |
| 13. | 132-4995 | [2] | ORIFICE | |
| 15. | 311-0863 | [1] | KIT-SENSOR | |
| | | | (INCLUDES SENSOR & O-RING SEAL) |
| 16. | 8T-9598 | [1] | RING-RETAINING | |
| 17. | 109-5700 | [1] | SEAL-O-RING | |
| 18. | 319-5223 | [1] | SEAL-LIP TYPE | |
| | | | |
| | | | PARTS SHOWN IN GRAPHIC(S) WITHOUT A REFERENCE NUMBER ARE NOT SERVICED SEPARATELY |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 261-0036 | [1] | KIT-SEAL | |
| | | | (INCLUDES O-RINGS, RING-SEAL, LIP SEAL, GASKETS, NUT SEAL & PARTS MARKED J IN GRAPHICS) |
| | M | | METRIC PART |
