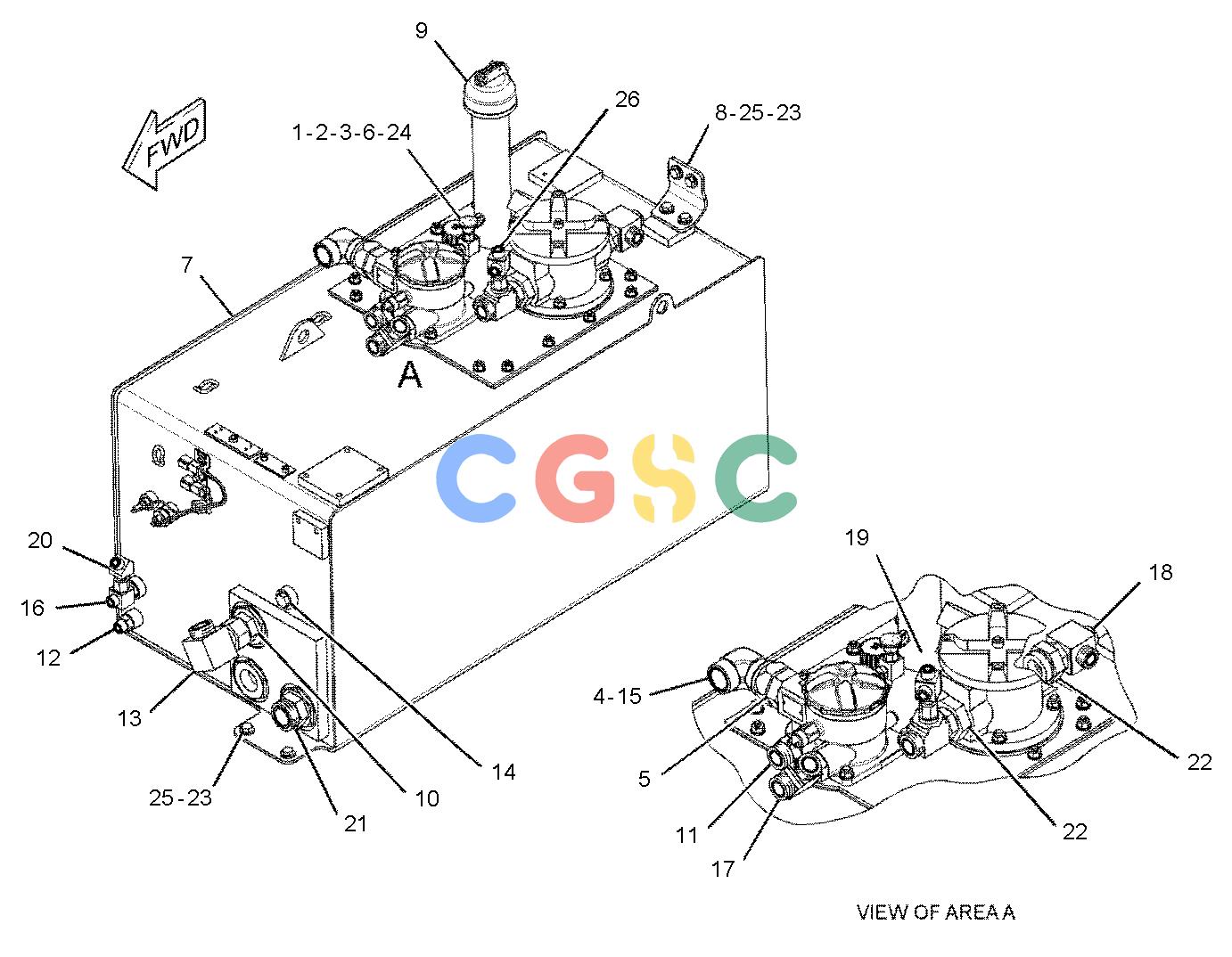

卡特零件查询（BG655D） 269-7127: TANK & MTG GP-HYDRAULIC
广数供应链运营团队, 17 02月, 2025，浏览：
274 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8C-3451 | [1] | CAP-DUST(HYDRAULIC OIL) | |
| 2. | 8C-6863 | [1] | ADAPTER | |
| 3. | 164-6874 | [1] | FITTING AS-ELBOW(QUICK DISCONNECT, MALE) | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 085-7356 | [1] | FITTING | |
| 4. | 174-5811 | [1] | ELBOW | |
| 5. | 205-4132 | [1] | CONNECTOR AS | |
| | 2S-4078 | [1] | SEAL-O-RING | |
| | 8T-0315 | [1] | SEAL-O-RING | |
| | 8T-8985 | [1] | CONNECTOR | |
| 6. | 233-4770 | [1] | FITTING AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 183-7264 | [1] | VALVE AS-FLUID SAMPLING(HYDRAULIC OIL) | |
| 7. | 270-7254Y | [1] | TANK GP-HYDRAULIC | |
| 8. | 281-3107 | [1] | BRACKET | |
| 9. | 284-9560 | [1] | GAUGE-LIQUID LEVEL(HYDRAULIC TANK) | |
| 10. | 148-8334 | [1] | CONNECTOR AS | |
| | 2S-4078 | [1] | SEAL-O-RING | |
| | 6V-8400 | [1] | SEAL-O-RING | |
| | 8T-3611 | [1] | CONNECTOR | |
| 11. | 148-8335 | [1] | CONNECTOR AS | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 6V-8635 | [1] | CONNECTOR | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| 12. | 148-8345 | [1] | CONNECTOR AS | |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8638 | [1] | CONNECTOR | |
| 13. | 148-8387 | [1] | ELBOW AS | |
| | 6V-8400 | [1] | SEAL-O-RING | |
| | 6V-9855 | [1] | ELBOW | |
| 14. | 148-8411 | [1] | PLUG AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 9S-4185 | [1] | PLUG(3/4-16-THD) | |
| 15. | 8T-0315 | [1] | SEAL-O-RING | |
| 16. | 148-8428 | [1] | TEE AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [2] | SEAL-O-RING | |
| | 6V-8782 | [1] | TEE(FACE SEAL) | |
| 17. | 148-8431C | [1] | TEE AS | |
| | | | (EACH INCLUDES) |
| | 5K-9090 | [2] | SEAL-O-RING | |
| | 6V-8785 | [1] | TEE | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| 18. | 148-8442 | [1] | TEE AS | |
| | 6V-9746 | [2] | SEAL-O-RING | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| | 8T-1685 | [1] | TEE | |
| 19. | 148-8449C | [1] | TEE AS-SWIVEL | |
| | 6V-9746 | [2] | SEAL-O-RING | |
| | 6V-9839 | [1] | TEE-SWIVEL | |
| 20. | 153-6241 | [1] | ELBOW AS | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 8C-8989 | [1] | ELBOW | |
| 21. | 156-4283 | [1] | CONNECTOR AS | |
| | 6K-6307 | [1] | SEAL-O-RING | |
| | 8T-0315 | [1] | SEAL-O-RING | |
| | 8T-7926 | [1] | CONNECTOR | |
| 22. | 176-0391 | [2] | ADAPTER AS | |
| | | | (EACH INCLUDES) |
| | 6K-6307 | [1] | SEAL-O-RING | |
| | 8V-7764 | [1] | ADAPTER-O-RING | |
| 23. | 8T-4137M | [6] | BOLT(M10X1.5X20-MM) | |
| 24. | 6V-9028 | [1] | SEAL-O-RING | |
| 25. | 7X-7729 | [6] | WASHER(11X25X3-MM THK) | |
| 26. | 148-8422C | [1] | TEE AS | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| | 8T-6356 | [1] | TEE-O-RING PORT | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
