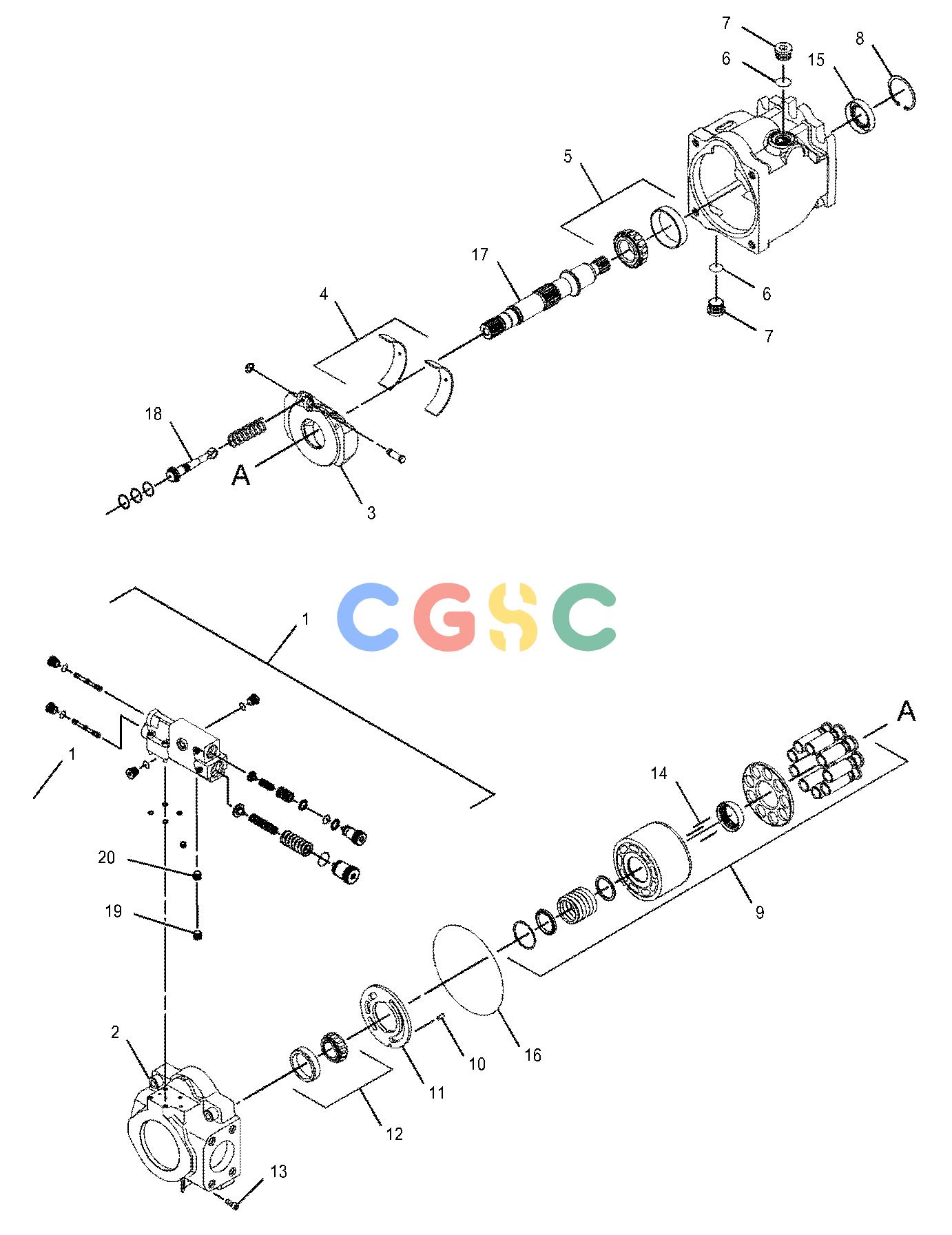

卡特零件查询（BG655D） 289-5227: PUMP GP-PISTON
广数供应链运营团队, 17 02月, 2025，浏览：
596 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 248-1348Y | [1] | VALVE GP-CONTROL(PISTON PUMP) | |
| 2. | 095-0670M | [4] | BOLT(M12X1.75X45-MM) | |
| 3. | 260-3146 | [1] | SWASHPLATE | |
| 4. | 260-3145 | [1] | KIT-SWASHPLATE(PISTON PUMP) | |
| | | | (INCLUDES PINS & BEARINGS) |
| 5. | 232-3587 | [1] | KIT-BEARING(PISTON PUMP) | |
| | | | (INCLUDES RING & BEARING) |
| 6. | 2M-9780J | [2] | SEAL-O-RING | |
| 7. | 9S-8006 | [2] | PLUG(7/8-14-THD) | |
| 8. | 6J-7855 | [1] | RING-RETAINING | |
| 9. | 260-3149 | [1] | KIT-CYLINDER(PISTON PUMP) | |
| | | | (INCLUDES PISTON ASSEMBLIES, SLIPPER RETAINER, SLIPPER RETAINER GUIDE, HOLD DOWN PINS, CYLINDER BLOCK, SPRING SEATS, |
| | | | SPRING & RETAINING RING) |
| 10. | 8J-8308 | [1] | PIN-ROLL | |
| 11. | 260-6873 | [1] | PLATE-VALVE | |
| 12. | 232-3586 | [1] | KIT-BEARING(PISTON PUMP) | |
| | | | (INCLUDES RING & BEARING) |
| 13. | 149-4311M | [1] | BOLT-SOCKET HEAD(M6X1X16-MM) | |
| 14. | 165-9762 | [3] | PIN | |
| 15. | 317-5891 | [1] | SEAL-LIP TYPE | |
| 16. | 351-6018 | [1] | SEAL-O-RING | |
| 17. | 351-6039 | [1] | SHAFT-PUMP(15-TEETH) | |
| 18. | 359-5232 | [1] | ROD-PISTON | |
| 19. | 460-0013 | [1] | PLUG-ORIFICE | |
| 20. | 460-0014 | [1] | PLUG-ORIFICE | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 307-3043J | [1] | KIT-SEAL | |
| | | | (INCLUDES O-RING SEALS, O-RING SEAL END CAP, SEAL RINGS, LIP SEALS & SPECIAL PLUG) |
| | | | |
| | | | PARTS SHOWN IN GRAPHIC(S) WITHOUT A REFERENCE NUMBER ARE NOT SERVICED SEPARATELY |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
