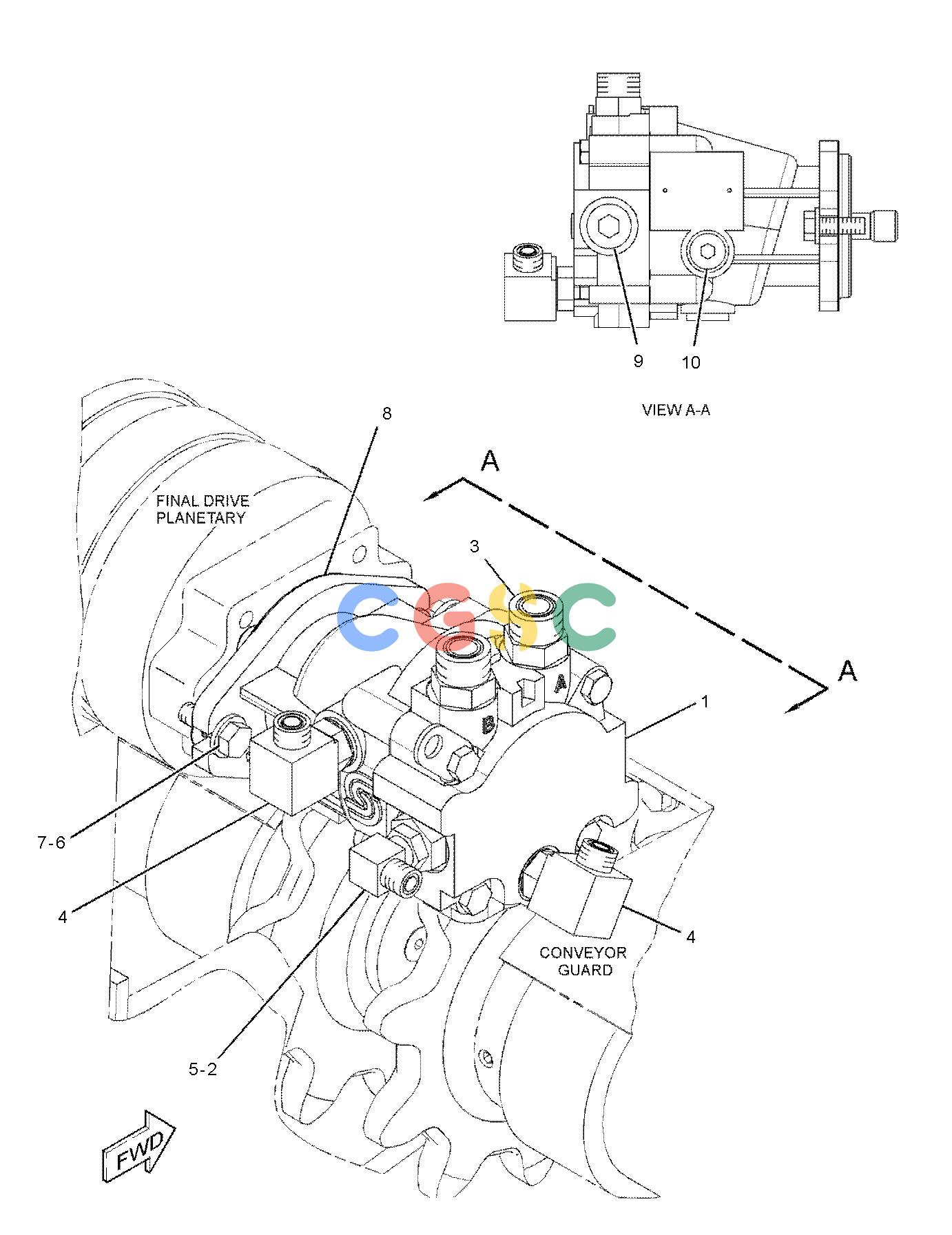

卡特零件查询（BG655D） 230-9597: MOTOR & MTG GP-AUGER
广数供应链运营团队, 17 02月, 2025，浏览：
904 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 190-8789Y | [2] | MOTOR GP-PISTON(AUGER) | |
| 2. | 205-0598 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 118-9080 | [1] | ELBOW | |
| 3. | 148-8327 | [4] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-8637 | [1] | CONNECTOR | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 4. | 148-8372 | [4] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8721 | [1] | ELBOW | |
| 5. | 155-7321 | [2] | ADAPTER AS | |
| | | | (EACH INCLUDES) |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-1722 | [1] | ADAPTER | |
| 6. | 8T-4223 | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 7. | 8T-4956M | [4] | BOLT(M12X1.75X35-MM) | |
| 8. | 9H-8872 | [2] | GASKET | |
| 9. | 148-8409 | [2] | PLUG AS | |
| | | | (EACH INCLUDES) |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 9S-8008 | [1] | PLUG(1-1/16-12-THD) | |
| 10. | 164-5619 | [2] | PLUG AS | |
| | | | (EACH INCLUDES) |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 9S-8006 | [1] | PLUG(7/8-14-THD) | |
| | | | QUANTITIES SHOWN ARE THOSE REQUIRED FOR BOTH LH & RH SIDES |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
