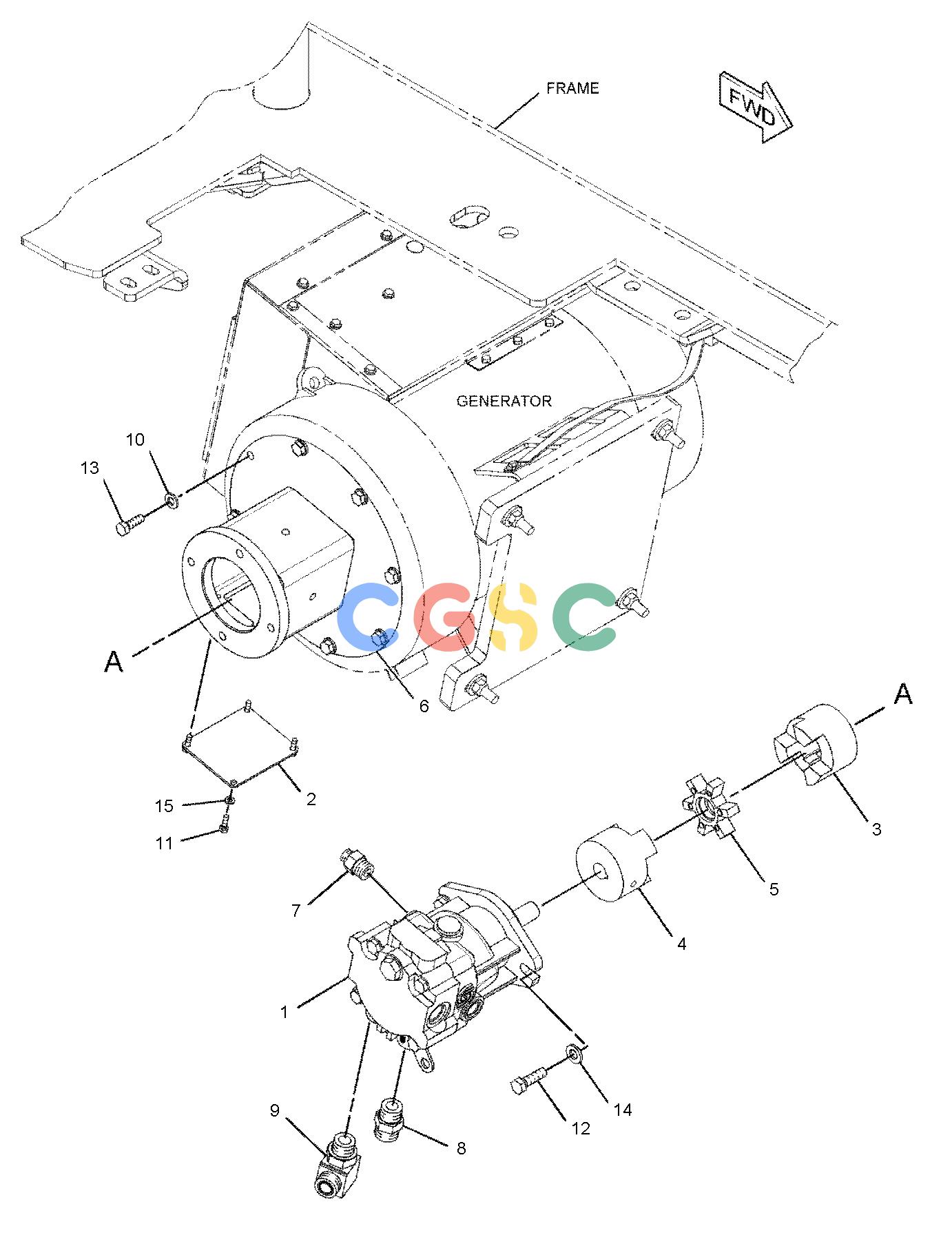

卡特零件查询（BG655D） 289-5224: MOTOR & MTG GP-GENERATOR
广数供应链运营团队, 17 02月, 2025，浏览：
654 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 392-5510Y | [1] | MOTOR GP-PISTON | |
| 2. | 234-2615 | [1] | COVER | |
| 3. | 245-7722 | [1] | COUPLER | |
| 4. | 245-7723 | [1] | COUPLER | |
| 5. | 245-7724 | [1] | ELEMENT-COUPLING | |
| 6. | 259-3086 | [1] | MOUNT AS | |
| 7. | 148-8319 | [1] | CONNECTOR AS | |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8715 | [1] | CONNECTOR | |
| 8. | 200-6311 | [1] | VALVE-CHECK(HYDRAULIC OIL COOLER BYPASS) | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 9. | 148-8347 | [1] | ELBOW AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-9007 | [1] | ELBOW | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 10. | 8T-4121 | [8] | WASHER-HARD(11X21X2.5-MM THK) | |
| 11. | 8T-4138M | [4] | BOLT(M6X1X20-MM) | |
| 12. | 8T-4183M | [2] | BOLT(M12X1.75X40-MM) | |
| 13. | 8T-4195M | [8] | BOLT(M10X1.5X30-MM) | |
| 14. | 8T-4223 | [2] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 15. | 9X-8256 | [4] | WASHER(6.6X12X2-MM THK) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
