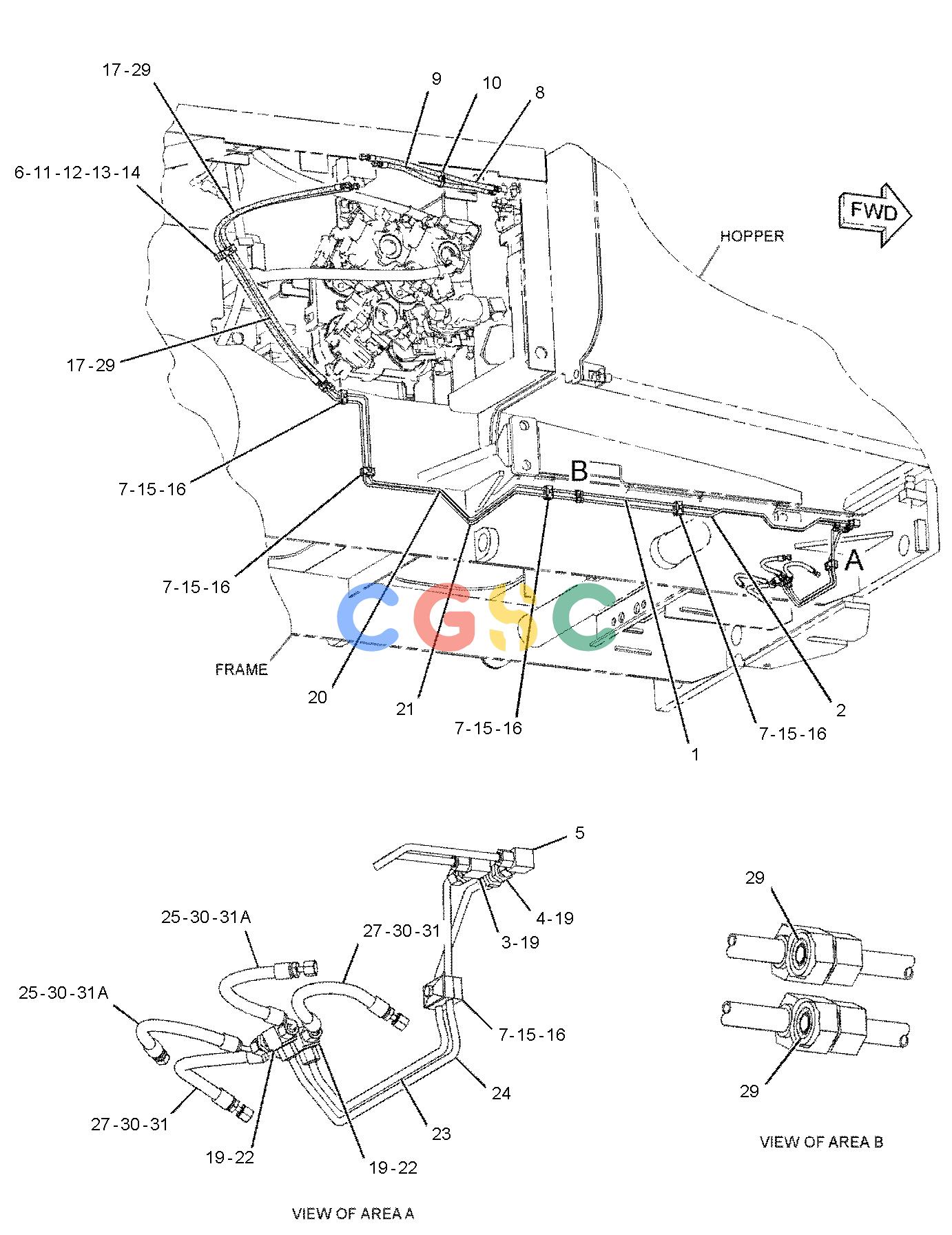

卡特零件查询（BG655D） 278-7739: LINES GP-HOPPER
广数供应链运营团队, 17 02月, 2025，浏览：
822 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 322-3281 | [1] | TUBE AS | |
| 2. | 322-3282 | [1] | TUBE AS | |
| 3. | 148-8377 | [1] | ELBOW AS | |
| | 6V-8397 | [2] | SEAL-O-RING | |
| | 6V-8980 | [1] | ELBOW | |
| 4. | 213-2265 | [1] | UNION AS | |
| | 6V-8397 | [2] | SEAL-O-RING | |
| | 150-0128 | [1] | UNION | |
| 5. | 148-8367 | [1] | ELBOW AS | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-9850 | [1] | ELBOW | |
| 6. | 154-4881 | [4] | CLAMP-HALF | |
| 7. | 206-6409 | [10] | CLAMP-HALF | |
| 8. | 154-4147I | [1] | HOSE AS | |
| 9. | 158-3820I | [1] | HOSE AS | |
| 10. | 177-2215 | [1] | STRAP-DUAL CLAMP | |
| 11. | 206-0451M | [1] | BOLT-STACKING(M8X1.25X44-MM) | |
| 12. | 206-0452 | [1] | PLATE | |
| 13. | 4V-0612 | [1] | PLATE | |
| 14. | 7X-0818M | [1] | BOLT(M8X1.25X45-MM) | |
| 15. | 102-8703 | [5] | PLATE-COVER | |
| 16. | 7X-2537M | [5] | BOLT(M8X1.25X35-MM) | |
| 17. | 278-4517I | [2] | HOSE AS | |
| 19. | 6V-9168 | [4] | NUT(11/16-16-THD) | |
| 20. | 275-2442 | [1] | TUBE AS | |
| 21. | 275-2443 | [1] | TUBE AS | |
| 22. | 153-6246 | [2] | TEE AS | |
| | | | (EACH INCLUDES) |
| | 6V-8397 | [3] | SEAL-O-RING | |
| | 7X-0820 | [1] | TEE | |
| 23. | 282-6752 | [1] | TUBE AS | |
| 24. | 282-6753 | [1] | TUBE AS | |
| 25. | 216-5209I | [2] | HOSE AS | |
| 27. | 283-5176I | [2] | HOSE AS | |
| 29. | 6V-8397 | [4] | SEAL-O-RING | |
| 30. | 7K-1181 | [8] | STRAP-CABLE | |
| 31. | 160-2243G | | SLEEVE-ABRASION(11.8-IN EACH) | |
| 31A. | 160-2243G | | SLEEVE-ABRASION(11-IN EACH) | |
| | G | | ORDER BY THE INCH |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
