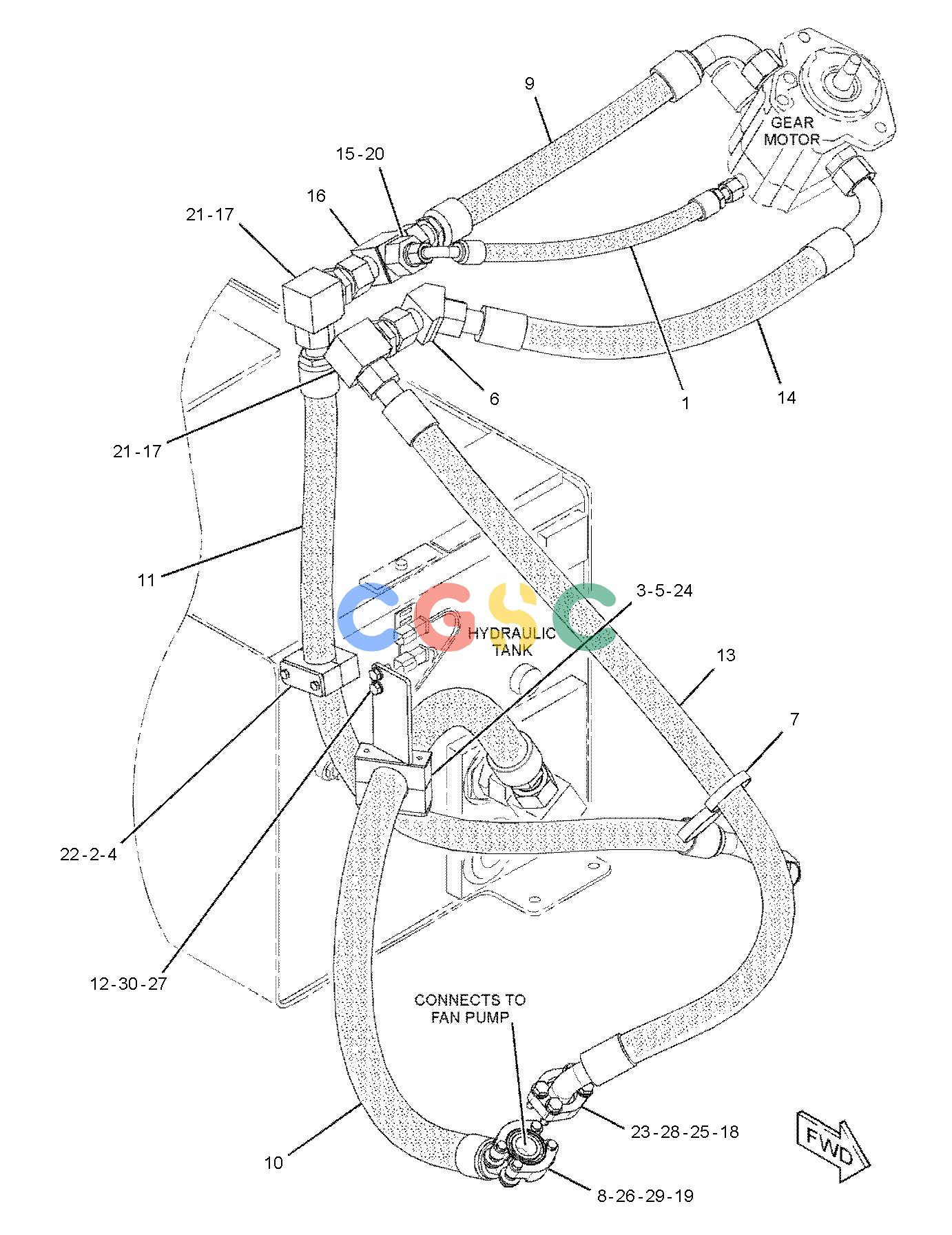

卡特零件查询（BG655D） 270-7253: LINES GP-HYDRAULIC FAN
广数供应链运营团队, 17 02月, 2025，浏览：
592 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 152-0246I | [1] | HOSE AS | |
| 2. | 5V-6152 | [2] | CLAMP | |
| 3. | 6R-2678 | [2] | CLAMP | |
| 4. | 7R-7951 | [1] | PLATE | |
| 5. | 7R-7952 | [1] | COVER | |
| 6. | 177-1061 | [1] | ELBOW AS | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 142-0038 | [1] | ELBOW | |
| 7. | 178-3620 | [1] | STRAP-DUAL CLAMP | |
| 8. | 197-3295 | [2] | FLANGE-HALF | |
| 9. | 251-3209I | [1] | HOSE AS | |
| 10. | 275-2444I | [1] | HOSE AS | |
| 11. | 351-4470I | [1] | HOSE AS | |
| 12. | 283-0143 | [1] | BRACKET AS | |
| 13. | 284-8522I | [1] | HOSE AS | |
| 14. | 184-4342I | [1] | HOSE AS | |
| 15. | 148-8412 | [1] | REDUCER AS | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8944 | [1] | REDUCER | |
| 16. | 148-8429 | [1] | TEE AS | |
| | 5K-9090 | [2] | SEAL-O-RING | |
| | 6V-9840 | [1] | TEE-SWIVEL | |
| 17. | 164-5577 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 5K-9090 | [2] | SEAL-O-RING | |
| | 6V-8984 | [1] | ELBOW | |
| 18. | 4J-0520 | [1] | SEAL-O-RING | |
| 19. | 4J-0522 | [1] | SEAL-O-RING | |
| 20. | 9X-6579 | [1] | NUT-ORIFICE(7/16-12-THD) | |
| 21. | 6V-9172 | [2] | NUT(1-7/16-12-THD) | |
| 22. | 7X-2535M | [2] | BOLT(M6X1X60-MM) | |
| 23. | 8C-3206 | [2] | FLANGE-HALF | |
| 24. | 8T-3844M | [2] | BOLT(M6X1X70-MM) | |
| 25. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| 26. | 8T-4139M | [4] | BOLT(M12X1.75X30-MM) | |
| 27. | 8T-4189M | [2] | BOLT(M8X1.25X20-MM) | |
| 28. | 8T-4196M | [4] | BOLT(M10X1.5X35-MM) | |
| 29. | 7X-3392 | [4] | WASHER-HARD(13.5X22.5X3-MM THK) | |
| 30. | 8T-4224 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
