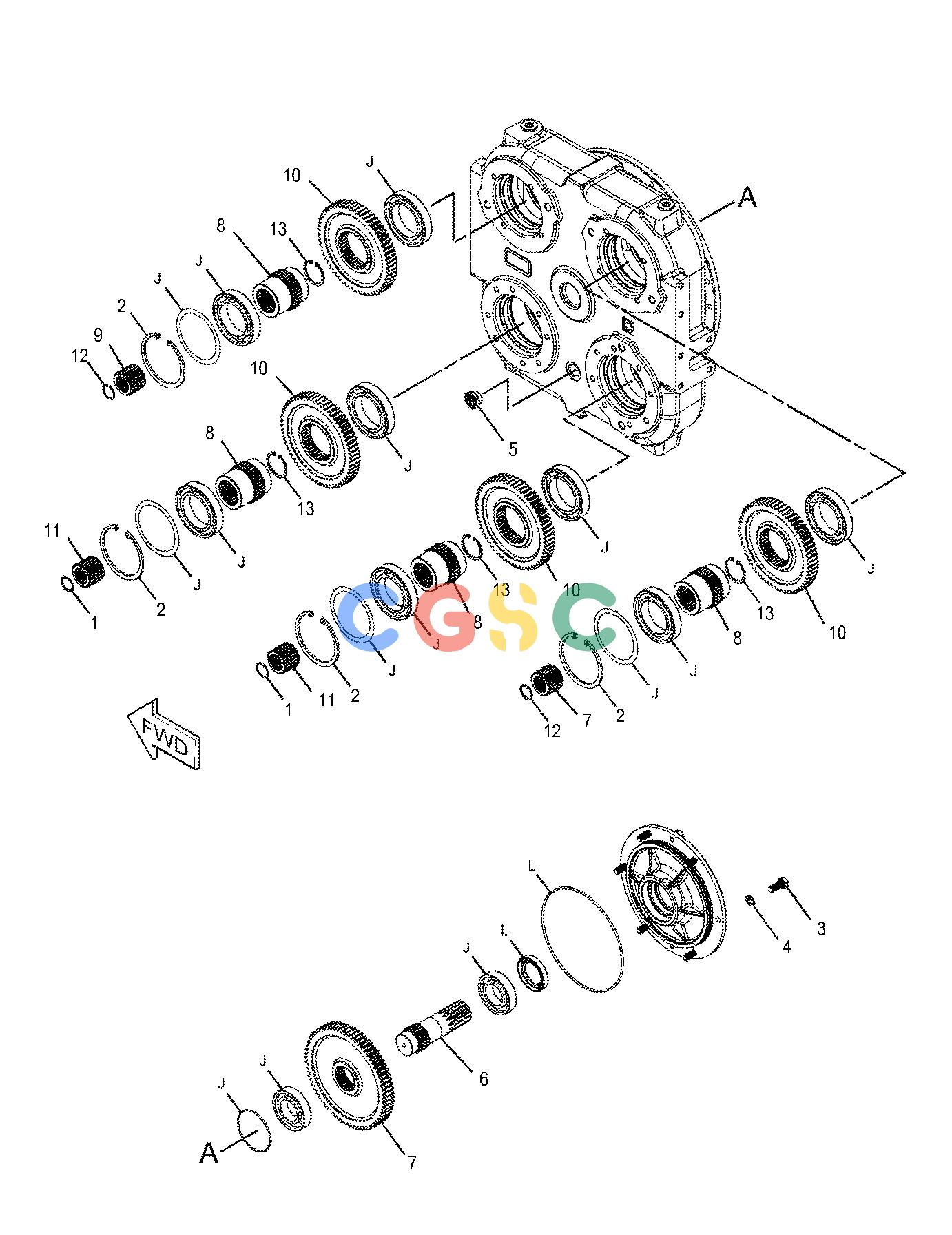

卡特零件查询（BG655D） 352-2524: DRIVE GP-HYDROSTATIC
广数供应链运营团队, 17 02月, 2025，浏览：
820 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8T-9597N | [2] | RING-RETAINING | |
| 2. | 068-9932N | [4] | RING-RETAINING(INTERNAL) | |
| 3. | 8T-4139M | [6] | BOLT(M12X1.75X30-MM) | |
| 4. | 7X-0546 | [6] | WASHER-HARD(12X25.5X2-MM THK) | |
| 5. | 321-7890 | [1] | GAUGE-SIGHT(OIL LEVEL) | |
| 6. | 418-6534 | [1] | SHAFT-DRIVER | |
| 7. | 418-6535 | [1] | GEAR(69-TEETH) | |
| 8. | 418-6536 | [4] | COUPLING-GEAR | |
| 9. | 418-6537 | [2] | COUPLING | |
| 10. | 418-6543 | [4] | GEAR(61-TEETH) | |
| 11. | 418-6544 | [2] | COUPLING | |
| 12. | 199-7560N | [2] | RING-RETAINING | |
| 13. | 6V-5589N | [4] | RING-RETAINING | |
| | | | |
| | | | PARTS SHOWN IN GRAPHIC(S) WITHOUT A REFERENCE NUMBER ARE NOT SERVICED SEPARATELY |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 276-3740 | [1] | KIT-SEAL(PUMP DRIVE) | |
| | | | (INCLUDES PARTS MAKED L IN THE GRAPHICS) |
| | 276-3741N | [1] | KIT-BEARING | |
| | | | (INCLUDES PARTS MARKED J IN THE GRAPHICS) |
| | M | | METRIC PART |
| | N | | KIT MARKED N SERVICES PART(S) MARKED N |
