卡特零件查询（BG655D） 358-0385: DRIVE GP-FINAL
广数供应链运营团队, 17 02月, 2025，浏览：
478 次

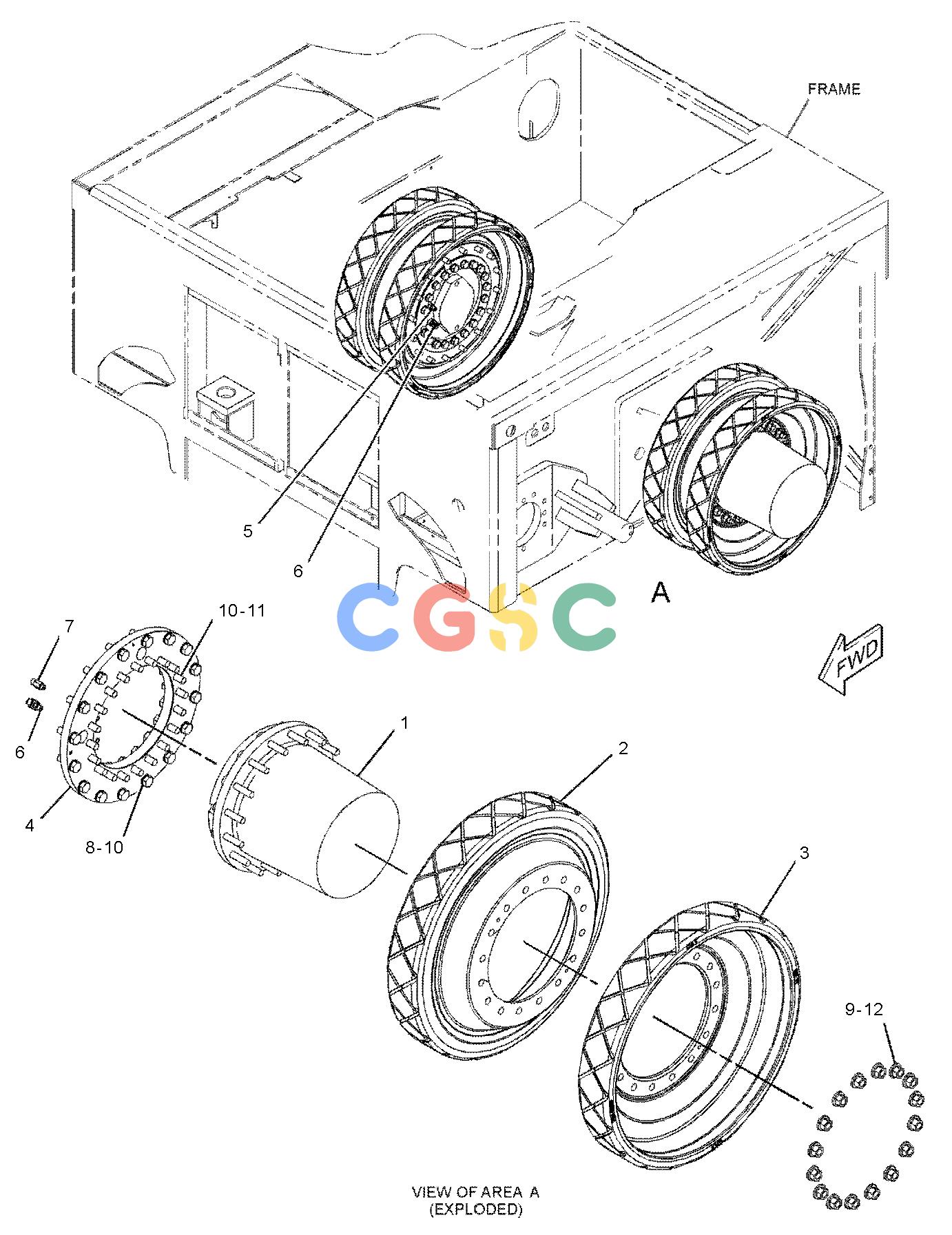

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 325-4689Y | [2] | PLANETARY GP-FINAL DRIVE | |
| 2. | 354-8335 | [2] | WHEEL AS(INNER) | |
| 3. | 354-8336 | [2] | WHEEL AS(OUTER) | |
| 4. | 356-3674 | [2] | PLATE-ADAPTER | |
| 5. | 148-8336 | [1] | CONNECTOR AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8636 | [1] | CONNECTOR | |
| 6. | 148-8353 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-9001 | [1] | ELBOW | |
| 7. | 150-4044 | [1] | CONNECTOR AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 8T-1779 | [1] | CONNECTOR | |
| 8. | 7X-2563M | [32] | BOLT(M20X2.5X60-MM) | |
| 9. | 8T-3573M | [32] | NUT(M20X1.5-THD) | |
| 10. | 8T-4123 | [72] | WASHER(3.62X5.75X0.375-MM THK) | |
| 11. | 8T-4141M | [40] | BOLT(M20X2.5X70-MM) | |
| 12. | 8T-5439 | [32] | WASHER-HARD(21.5X45X6-MM THK) | |
| | M | | METRIC PART |
| | R | | REMANUFACTURED PART MAY BE AVAILABLE |
| | Y | | SEPARATE ILLUSTRATION |
