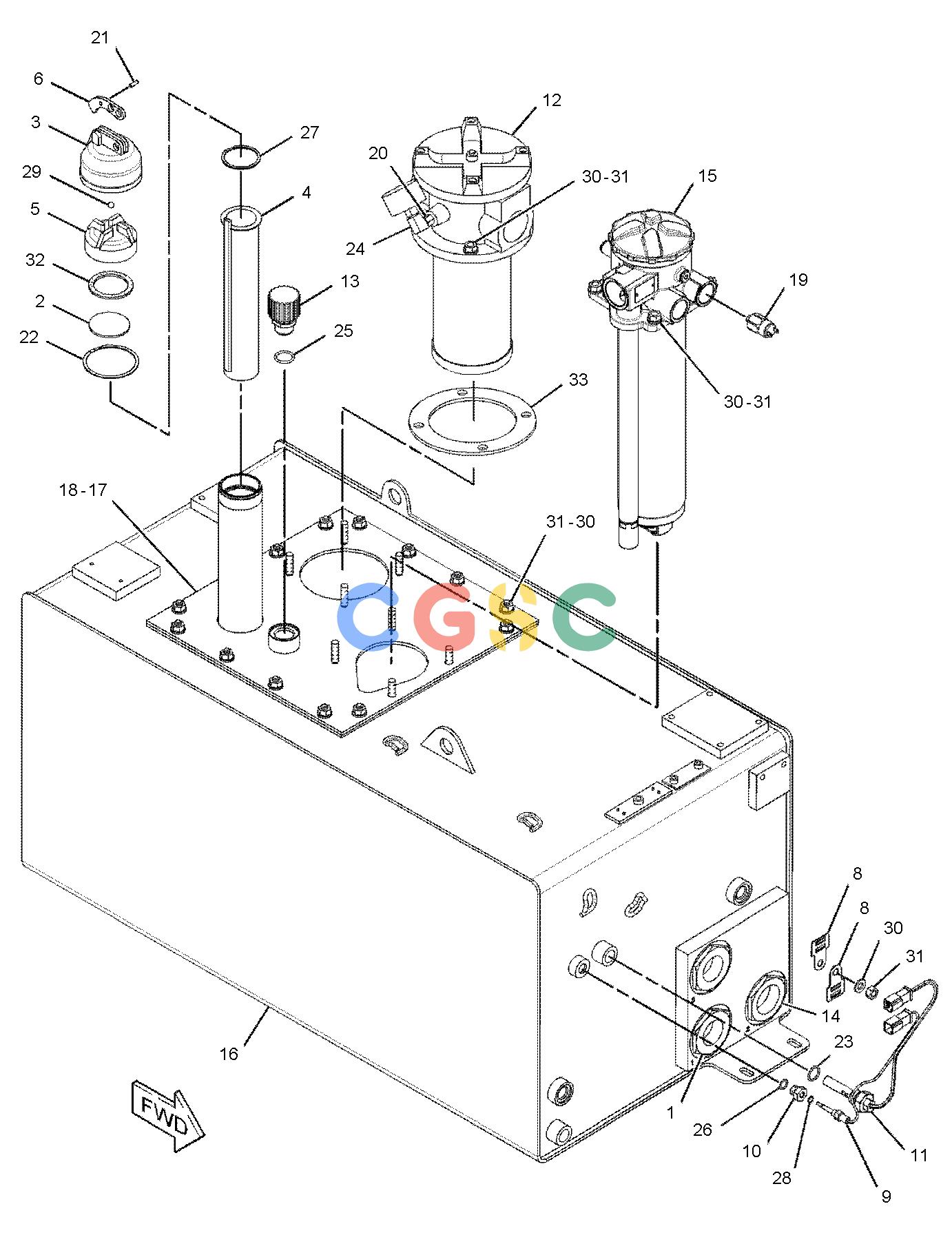

卡特零件查询（BG655D） 270-7254: TANK GP-HYDRAULIC
广数供应链运营团队, 17 02月, 2025，浏览：
138 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1G-7663 | [2] | STRAINER AS(HYDRAULIC TANK) | |
| 2. | 2D-4202 | [1] | PLATE | |
| 3. | 5D-1911 | [1] | COVER-HYDRAULIC CAP | |
| 4. | 5D-7927 | [1] | STRAINER AS-OIL(HYDRAULIC TANK) | |
| | 5F-3488 | [1] | END-STRAINER | |
| 5. | 7H-1447 | [1] | CAP-FILLER(HYDRAULIC TANK) | |
| 6. | 9M-7394 | [1] | LEVER | |
| 8. | 130-5300 | [2] | CLIP | |
| 9. | 145-7028Y | [1] | SENSOR GP-TEMPERATURE(HYDRAULIC TANK) | |
| 10. | 164-3651 | [1] | ADAPTER | |
| 11. | 172-8660Y | [1] | SWITCH GP-LIQUID LEVEL(HYDRAULIC TANK) | |
| 12. | 176-9415Y | [1] | FILTER GP-OIL(HYDRAULIC TANK) | |
| 13. | 188-8844 | [1] | VALVE-BREAKER RELIEF(HYDRAULIC TANK) | |
| 14. | 250-2783 | [1] | STRAINER AS(SUCTION)(HYDRAULIC TANK) | |
| 15. | 255-1193 | [1] | FILTER ELEMENT AS-OIL(HYDRAULIC TANK) | |
| | 281-4256 | [1] | FILTER ELEMENT AS-OIL(HYDRAULIC) | |
| | 287-3752 | [1] | SEAL-O-RING | |
| | 287-3753 | [1] | SEAL-O-RING | |
| | 369-4732 | [1] | SEAL-O-RING | |
| 16. | 271-6439 | [1] | TANK AS-HYDRAULIC | |
| 17. | 271-6499 | [1] | PLATE AS | |
| 18. | 271-6532 | [1] | GASKET | |
| 19. | 272-7240 | [1] | SWITCH AS-PRESSURE(HYDRAULIC TANK) | |
| 20. | 002-0639 | [1] | ADAPTER-PIPE | |
| 21. | 1L-5072 | [1] | DOWEL | |
| 22. | 2J-7761 | [1] | RING-RETAINING | |
| 23. | 2M-9780 | [1] | SEAL-O-RING | |
| 24. | 3B-6552 | [1] | ELBOW-PIPE | |
| 25. | 3D-2824 | [1] | SEAL-O-RING | |
| 26. | 3J-1907 | [1] | SEAL-O-RING | |
| 27. | 6H-9361 | [1] | RING-RETAINING | |
| 28. | 7J-0204 | [1] | SEAL-O-RING | |
| 29. | 8T-2275 | [1] | BALL | |
| 30. | 8T-4121 | [23] | WASHER-HARD(11X21X2.5-MM THK) | |
| 31. | 8T-4133M | [23] | NUT(M10X1.5-THD) | |
| 32. | 9H-6454 | [1] | GASKET | |
| 33. | 309-5157 | [1] | GASKET | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
