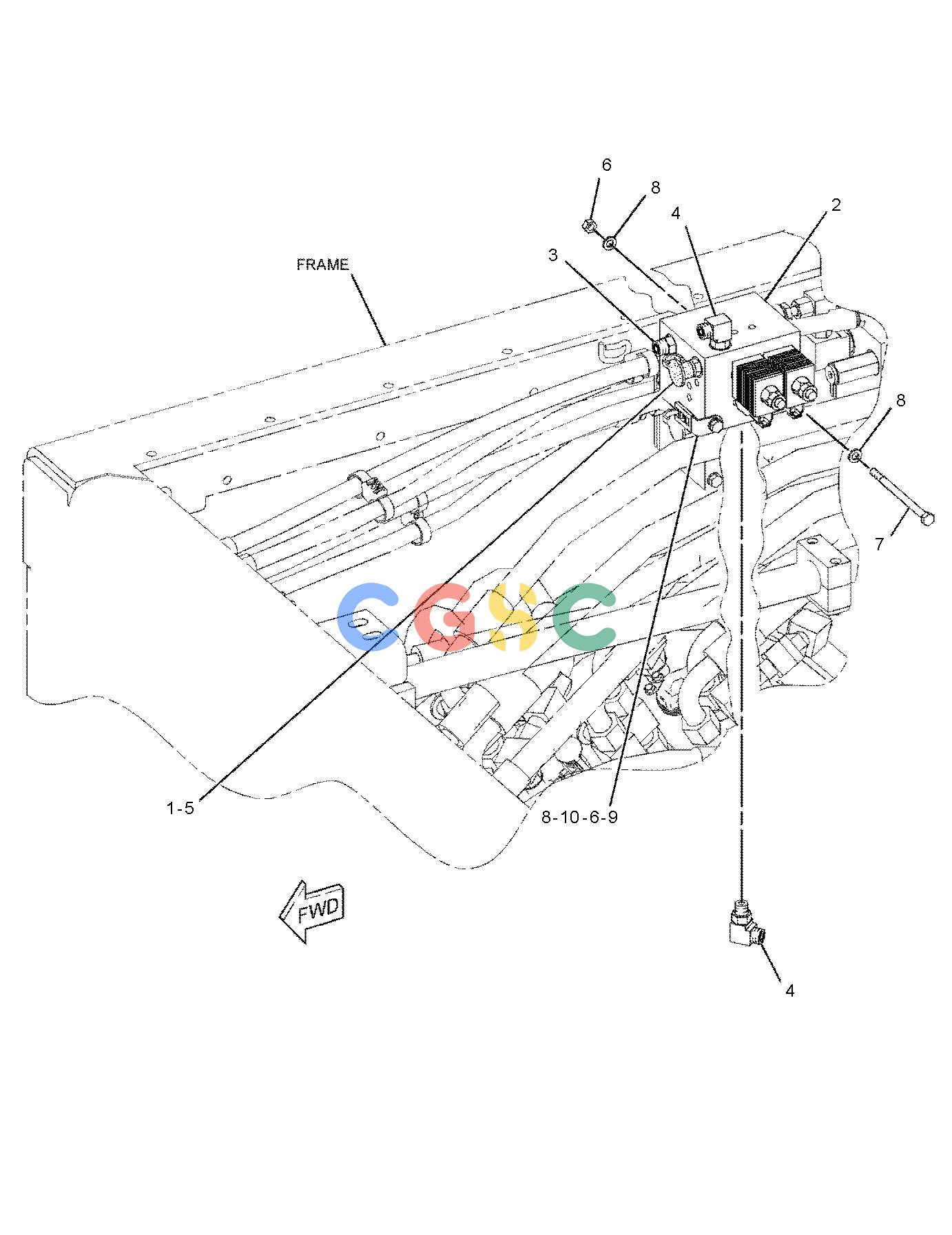

卡特零件查询（BG655D） 274-5857: VALVE & MOUNTING GP
广数供应链运营团队, 17 02月, 2025，浏览：
617 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6V-0852 | [1] | CAP-DUST | |
| 2. | 270-3549Y | [1] | VALVE GP-CONTROL(BANK 2) | |
| 3. | 148-8336 | [1] | CONNECTOR AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8636 | [1] | CONNECTOR | |
| 4. | 148-8378 | [3] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8724 | [1] | ELBOW | |
| 5. | 164-5567 | [1] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| | 214-7568 | [1] | SEAL-O-RING | |
| | 6V-3965 | [1] | FITTING(QUICK DISCONNECT) | |
| 6. | 5C-7261M | [2] | NUT(M8X1.25-THD) | |
| 7. | 7X-2540M | [1] | BOLT(M8X1.25X120-MM) | |
| 8. | 8T-4224 | [4] | WASHER-HARD(8.8X16X2-MM THK) | |
| 9. | 132-5789 | [1] | CLIP(LADDER) | |
| 10. | 153-3061M | [1] | BOLT(M8X1.25X130-MM) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
