卡特零件查询（BG655D） 317-9349: PUMP GP-PISTON
广数供应链运营团队, 17 02月, 2025，浏览：
849 次

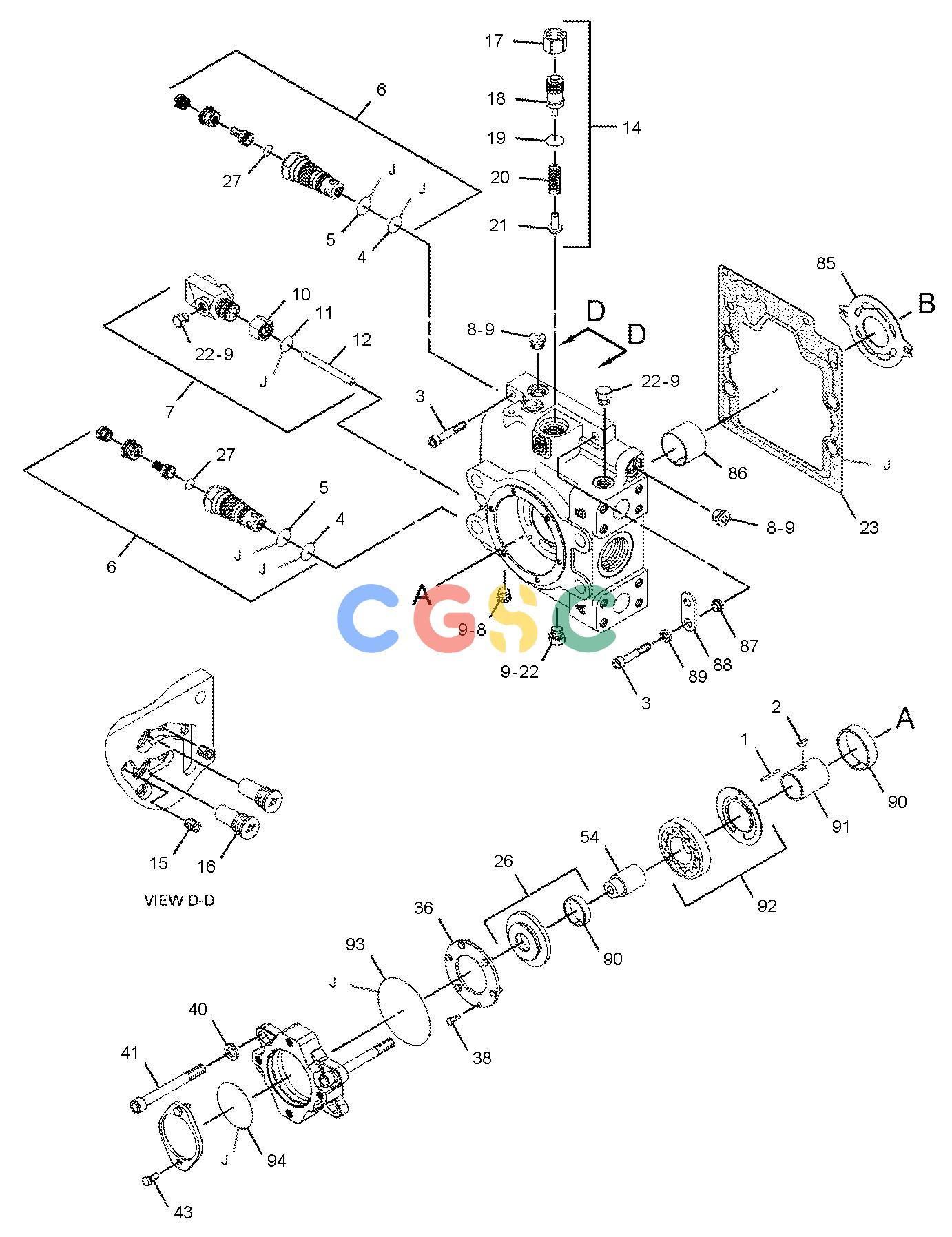

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1G-9196 | [1] | PIN | |
| 2. | 7R-3453 | [1] | KEY-WOODRUFF | |
| 3. | 8T-0338M | [2] | BOLT-SOCKET HEAD(M8X1.25X45-MM) | |
| 4. | 5E-9816J | [2] | SEAL-O-RING | |
| 5. | 8J-2413J | [2] | SEAL-O-RING | |
| 6. | 229-8393 | [2] | KIT-VALVE(PROPEL PUMP) | |
| | | | (INCLUDES O-RING SEAL & VALVE) |
| 7. | 107-5896 | [1] | KIT-MANIFOLD | |
| | | | (INCLUDES REMOTE FILTER ADAPTER & HEX O-RING BOSS PLUG AS) |
| 8. | 9S-8004 | [8] | PLUG(9/16-18-THD) | |
| 9. | 3J-1907 | [11] | SEAL-O-RING | |
| 10. | 5E-8764 | [1] | NUT(1-5/16-12-THD) | |
| 11. | 7M-8485J | [1] | SEAL-O-RING | |
| 12. | 5E-8750 | [1] | TUBE | |
| 13. | 1G-9175 | [1] | KIT-BEARING | |
| | | | (INCLUDES BEARING) |
| 14. | 7R-3825T | [1] | KIT-RELIEF VALVE | |
| | | | (INCLUDES PLUG AS, O-RING SEAL, SPRING, POPPET CHARGE & NUT) |
| 15. | 5E-8777 | [2] | PLUG | |
| 16. | 5E-8747 | [2] | VALVE-CHECK | |
| 17. | 6R-1702T | [1] | NUT-SPECIAL(7/8-14-THD) | |
| 18. | 6R-1704T | [1] | PLUG AS | |
| 19. | 2M-9780JT | [1] | SEAL-O-RING | |
| 20. | 5E-8748T | [1] | SPRING | |
| 21. | 6R-1703T | [1] | POPPET | |
| 22. | 9S-4191 | [3] | PLUG(9/16-18-THD) | |
| 23. | 126-6638J | [1] | GASKET-END CAP | |
| 24. | 319-5220L | [1] | KIT-CYLINDER(BLOCK) | |
| | | | (ALSO INCLUDES CYLINDER) |
| 25. | 319-5221NY | [1] | ROTATING GP-PUMP | |
| 26. | 109-5166 | [1] | COVER-CHARGE | |
| 27. | 2P-2975 | [1] | SEAL-O-RING | |
| 28. | 126-6637 | [1] | BLOCK-SLIDER | |
| | | | (INCLUDES PARTS MARKED K IN GRAPHICS) |
| 29. | 319-5222V | [1] | SCREW(M8X35-MM) | |
| 30. | 203-9019V | [1] | BOLT(M8X1.25X53-MM) | |
| 31. | 203-8509V | [1] | LINK-FEEDBACK | |
| 32. | 5E-8774V | [1] | PIN | |
| 33. | 5E-8791V | [1] | WASHER(3.53X6.86X1.52-MM THK) | |
| 34. | 9S-8008 | [1] | PLUG(1-1/16-12-THD) | |
| 35. | 3D-2824 | [1] | SEAL-O-RING | |
| 36. | 229-8394 | [1] | PLATE-COVER | |
| 37. | 229-8395Y | [1] | VALVE GP-PUMP CONTROL(PROPEL) | |
| 38. | 6V-8837M | [6] | BOLT(M6X1X16-MM) | |
| 39. | 8T-9534M | [6] | BOLT(M6X1X50-MM) | |
| 40. | 1G-8026 | [4] | WASHER(17X30X4-MM THK) | |
| 41. | 096-0008M | [4] | BOLT-SOCKET HEAD(M16X2X140-MM) | |
| 43. | 6H-1717 | [4] | BOLT(1/2-13X1.125-IN) | |
| 44. | 123-0542J | [1] | GASKET | |
| 45. | 7X-9232 | [3] | PLUG-VENT(PISTON PUMP) | |
| 46. | 126-6643 | [1] | SHAFT-PUMP | |
| 47. | 1G-9185 | [1] | BEARING-ROLLER | |
| 48. | 6V-7700 | [1] | RING-RETAINING | |
| 49. | 319-5224P | [1] | KIT-SEAL | |
| | | | (ALSO INCLUDES CARRIER SEAL) |
| 50. | 229-8396 | [1] | PLATE-RETAINER | |
| 51. | 8T-0269M | [4] | BOLT-SOCKET HEAD(M6X1X20-MM) | |
| 52. | 319-5223JP | [1] | SEAL-LIP TYPE | |
| 53. | 1G-9188JP | [1] | SEAL-O-RING | |
| 54. | 1G-9198 | [1] | COUPLING | |
| 55. | 9S-8002 | [1] | PLUG(7/16-20-THD) | |
| 56. | 3J-7354 | [1] | SEAL-O-RING | |
| 58. | 203-8493HU | [1] | PISTON AS | |
| | 4L-7711 | [2] | SEAL-O-RING | |
| 59. | 1G-9192JS | [2] | SEAL-O-RING | |
| 60. | 1G-9191JS | [2] | SEAL-O-RING | |
| 61. | 6V-5215SM | [6] | BOLT(M8X1.25X16-MM) | |
| 62. | 1G-9190S | [2] | KIT-DISPLACEMENT LIMITER | |
| 63. | 077-8353 | [2] | PIN(SPRING) | |
| 64. | 161-3931 | [2] | POST-GUIDE | |
| 65. | 1G-9182J | [1] | SEAL-O-RING | |
| 66. | 203-8494 | [1] | INSERT AS | |
| 67. | 319-5225 | [1] | COVER | |
| 68. | 132-6697JM | [6] | BOLT(M8X1.25X20-MM) | |
| 69. | 5E-8765J | [2] | NUT | |
| 70. | 203-8505 | [2] | SHIM(0.51-MM THK) | |
| 71. | 307-8305 | [2] | SPRING | |
| 72. | 180-2430 | [1] | GUIDE | |
| 73. | 199-7051V | [1] | PIN | |
| 74. | 1G-9177V | [1] | LINK | |
| 75. | 319-5226V | [1] | KIT-SWASHPLATE | |
| | | | (ALSO INCLUDES VARIABLE SWASH PLATE) |
| 76. | 134-1836N | [9] | PISTON AS | |
| 77. | 319-5227N | [1] | GUIDE | |
| 78. | 173-3266N | [4] | SPACER | |
| 79. | 134-1839N | [2] | GUIDE-BEARING | |
| 80. | 5E-8784JNM | [4] | BOLT(M6X1X20-MM) | |
| 81. | 134-1829LN | [1] | SEAT | |
| 82. | 319-5228LN | [1] | SPRING | |
| 83. | 134-1830LN | [1] | RETAINER-SPRING | |
| 84. | 145-8613LN | [1] | RING-RETAINING | |
| 85. | 145-6892 | [1] | PLATE-VALVE | |
| 86. | 1G-9193 | [1] | BEARING-JOURNAL | |
| 87. | 134-1827 | [1] | SPACER | |
| 88. | 126-6640 | [1] | BRACKET-LIFTING | |
| 89. | 098-3039 | [1] | WASHER(8.33X15X2.12-MM THK) | |
| 90. | 5E-8743 | [2] | BUSHING-TERMINAL | |
| 91. | 109-5165 | [1] | SHAFT-CHARGE | |
| 92. | 108-8537 | [1] | PUMP GP-GEROTOR(CHARGE) | |
| 93. | 5E-8771J | [1] | SEAL-O-RING | |
| 94. | 170-4717J | [1] | SEAL-O-RING | |
| | | | |
| | | | PARTS SHOWN IN GRAPHIC(S) WITHOUT A REFERENCE NUMBER ARE NOT SERVICED SEPARATELY |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 1G-9205J | [1] | KIT-OVERHAUL SEAL | |
| | | | (ALSO INCLUDES MANIFOLD GASKET, PISTON RING KIT & PARTS MARKED J IN THE GRAPHICS) |
| | 7X-5448U | [1] | KIT-PISTON RING | |
| | | | (INCLUDES O-RINGS & PISTON RINGS) |
| | 364-0735H | [1] | KIT-SERVO PISTON | |
| | H | | KIT MARKED H AVAILABLE AS A SERVICE REPLACEMENT FOR PART MARKED H |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | L | | KIT MARKED L SERVICES PART(S) MARKED L |
| | M | | METRIC PART |
| | N | | KIT MARKED N SERVICES PART(S) MARKED N |
| | P | | KIT MARKED P SERVICES PART(S) MARKED P |
| | S | | KIT MARKED S SERVICES PART(S) MARKED S |
| | T | | KIT MARKED T SERVICES PART(S) MARKED T |
| | U | | KIT MARKED U SERVICES PART(S) MARKED U |
| | V | | KIT MARKED V SERVICES PART(S) MARKED V |
| | Y | | SEPARATE ILLUSTRATION |
