卡特零件查询（BG655D） 339-3533: PUMP GP-PISTON
广数供应链运营团队, 17 02月, 2025，浏览：
405 次

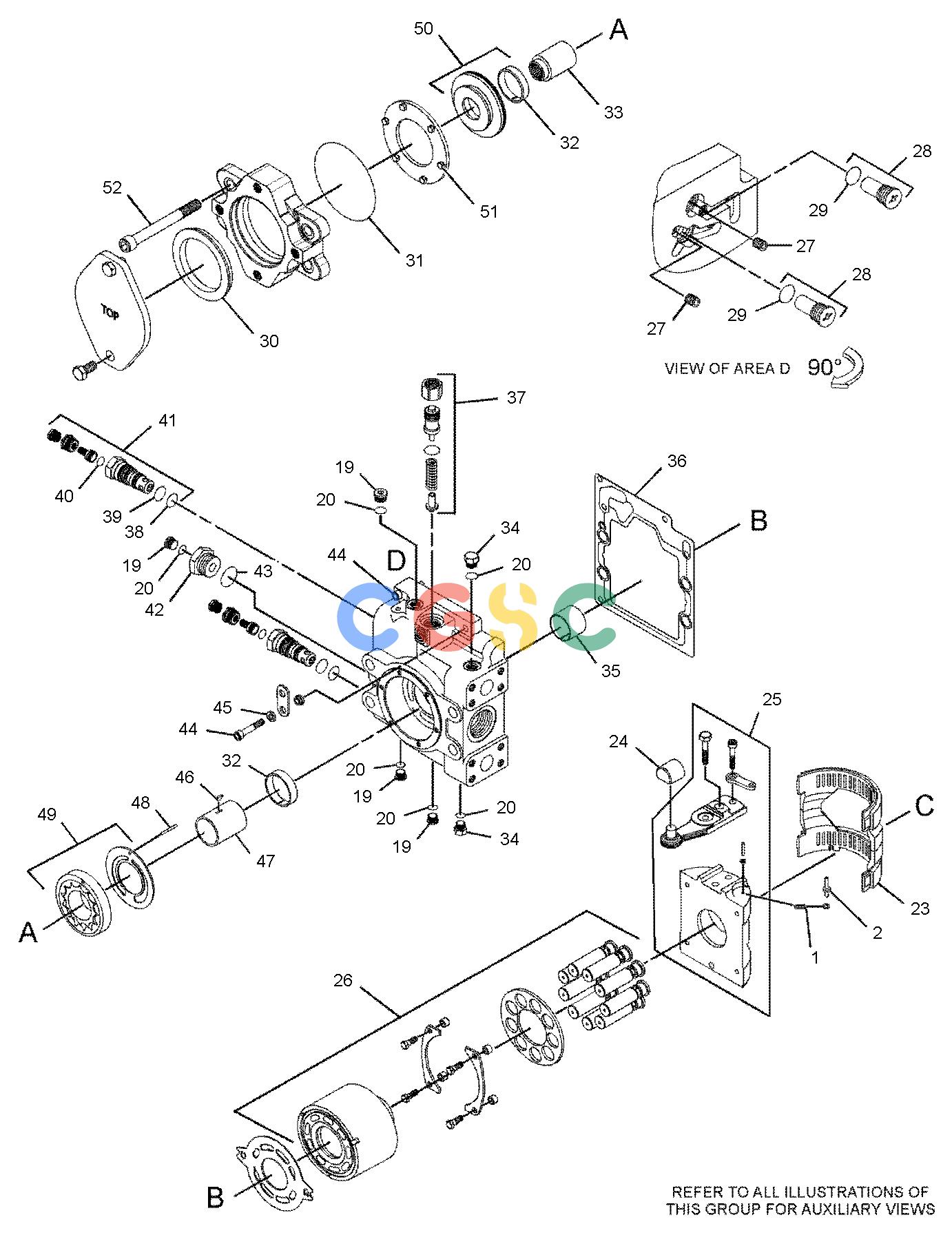

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 5E-8740 | [1] | CAGE-LINK | |
| 2. | 199-7051 | [1] | PIN | |
| 3. | 117-8801 | [1] | SEAL-O-RING | |
| 4. | 3D-2824 | [2] | SEAL-O-RING | |
| 5. | 9S-8008 | [2] | PLUG(1-1/16-12-THD) | |
| 6. | 5E-8765 | [2] | NUT | |
| 7. | 132-6697M | [6] | BOLT(M8X1.25X20-MM) | |
| 8. | 5E-8768 | [2] | SEAL-O-RING | |
| 9. | 6V-8676 | [2] | SEAL-O-RING | |
| 10. | 6V-5215M | [6] | BOLT(M8X1.25X16-MM) | |
| 11. | 5P-8065 | [2] | SEAL-O-RING | |
| 12. | 1G-5737 | [1] | BEARING | |
| 13. | 2L-6965 | [1] | RING-RETAINING | |
| 14. | 6V-3834 | [1] | SEAL-O-RING | |
| 15. | 4J-5918 | [1] | SEAL-LIP TYPE | |
| 16. | 8T-0269M | [3] | BOLT-SOCKET HEAD(M6X1X20-MM) | |
| 17. | 153-4918 | [1] | KIT-SEAL(PROPEL PISTON PUMP) | |
| | | | (INCLUDES O-RING SEAL, LIP SEAL & CARRIER SEAL) |
| 18. | 7X-9232 | [3] | PLUG-VENT(PUMP CONTROL) | |
| 19. | 9S-8004 | [8] | PLUG(9/16-18-THD) | |
| 20. | 3J-1907 | [10] | SEAL-O-RING | |
| 21. | 276-6041Y | [1] | VALVE GP-PUMP CONTROL(PROPEL) | |
| 22. | 077-8353 | [2] | PIN(SPRING) | |
| 23. | 275-6497 | [1] | BEARING-CRADLE | |
| 24. | 108-3002 | [1] | BLOCK-SLIDER | |
| 25. | 295-1945 | [1] | KIT-SWASHPLATE(PISTON PUMP) | |
| | | | (INCLUDES BOLTS, FEEDBACK LINK, SERVO LINK, PIN, WASHER & SWASHPLATE) |
| 26. | 359-8994 | [1] | ROTATING GP-PUMP | |
| | | | (INCLUDES BOLTS, BEARING GUIDES, SPACERS, GUIDE, PISTON AS & BARREL AS) |
| 27. | 5E-8777 | [2] | PLUG | |
| 28. | 5E-8747 | [2] | VALVE-CHECK | |
| 29. | 033-5853 | [2] | SEAL-O-RING | |
| 30. | 340-7078 | [1] | SEAL | |
| 31. | 5E-8771 | [1] | SEAL-O-RING | |
| 32. | 5E-8743 | [2] | BUSHING-TERMINAL | |
| 33. | 1G-9198 | [1] | COUPLING | |
| 34. | 9S-4191 | [2] | PLUG(9/16-18-THD) | |
| 35. | 1G-5764 | [1] | BEARING | |
| 36. | 108-3003 | [1] | GASKET-END CAP | |
| 37. | 7R-3825 | [1] | KIT-RELIEF VALVE(PROPEL PUMP) | |
| | | | (INCLUDES PLUG AS, O-RING SEAL, SPRING, POPPET CHARGE & NUT) |
| 38. | 5E-9816 | [2] | SEAL-O-RING | |
| 39. | 030-4605 | [2] | SEAL-O-RING | |
| 40. | 1S-8947 | [2] | SEAL-O-RING | |
| 41. | 229-8393 | [2] | KIT-VALVE(PROPEL PUMP) | |
| | | | (EACH INCLUDES VALVE & O-RING SEALS) |
| 42. | 7R-3394 | [1] | FITTING | |
| 43. | 7M-8485 | [1] | SEAL-O-RING | |
| 44. | 8T-0338M | [2] | BOLT-SOCKET HEAD(M8X1.25X45-MM) | |
| 45. | 098-3039 | [1] | WASHER(8.33X15X2.12-MM THK) | |
| 46. | 7R-3453 | [1] | KEY-WOODRUFF | |
| 47. | 109-5165 | [1] | SHAFT-CHARGE | |
| 48. | 1G-5767 | [1] | PIN | |
| 49. | 109-5164 | [1] | PUMP-CHARGE | |
| 50. | 109-5166 | [1] | COVER-CHARGE | |
| 51. | 6V-8837M | [6] | BOLT(M6X1X16-MM) | |
| 52. | 7X-2557M | [4] | BOLT(M16X2X140-MM) | |
| | | | |
| | | | PARTS SHOWN IN GRAPHIC(S) WITHOUT A REFERENCE NUMBER ARE NOT SERVICED SEPARATELY |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 111-6216 | | KIT-SEAL(PROPEL PISTON PUMP) | |
| | | | (INCLUDES SEALS) |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
