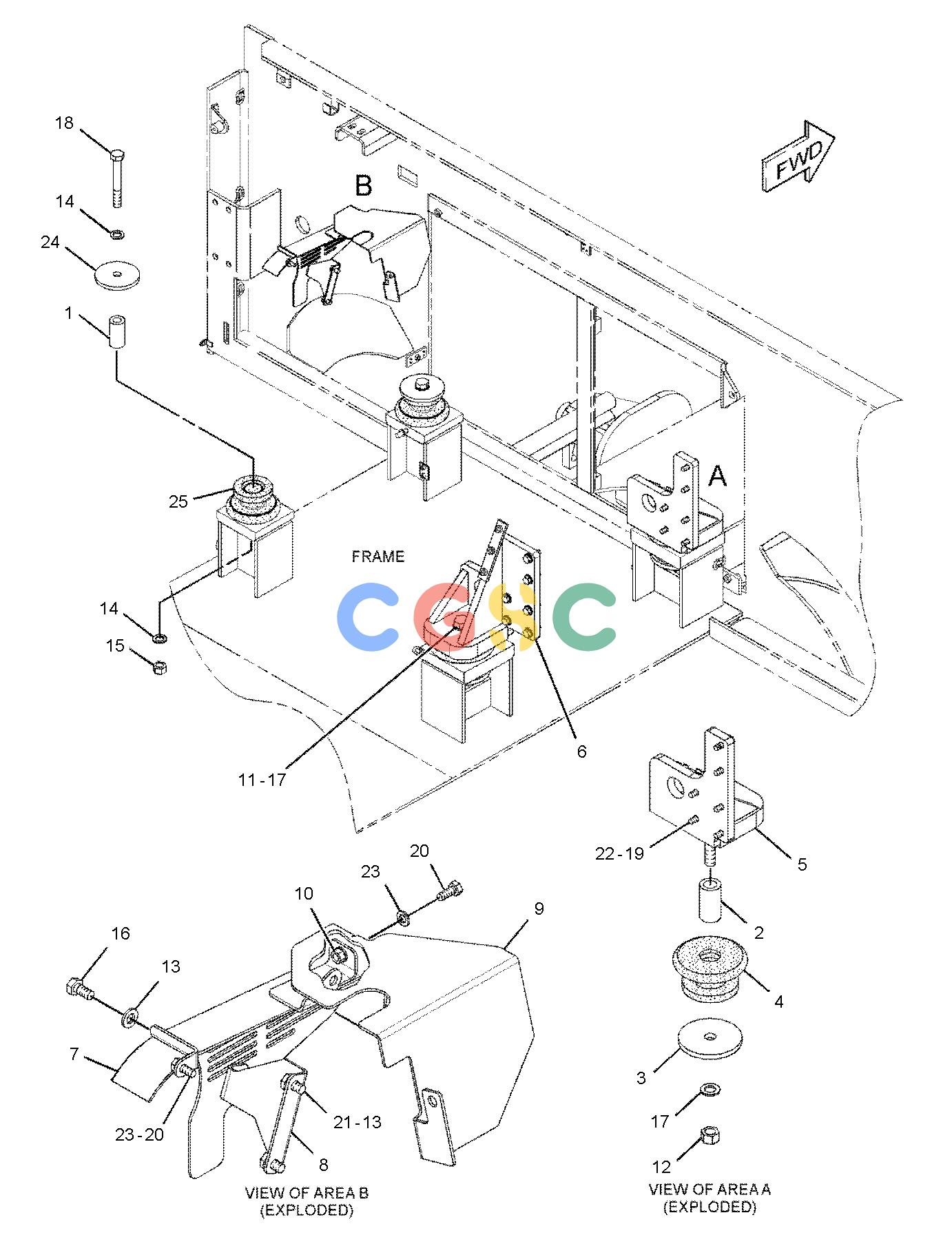

卡特零件查询（BG655D） 270-4250: MOUNTING GP-ENGINE FLEXIBLE
广数供应链运营团队, 17 02月, 2025，浏览：
175 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 9W-6582 | [2] | SLEEVE | |
| 2. | 9W-7385 | [2] | SLEEVE | |
| 3. | 9W-7388 | [2] | WASHER(26X144X12-MM THK) | |
| 4. | 155-9412 | [2] | MOUNT AS | |
| 5. | 236-5044 | [1] | SUPPORT AS | |
| 6. | 236-5045 | [1] | SUPPORT AS | |
| 7. | 276-3498 | [1] | GUARD AS-BELT | |
| 8. | 276-3500 | [1] | MOUNT AS | |
| 9. | 305-6378 | [1] | PLATE AS | |
| 10. | 5C-7261M | [1] | NUT(M8X1.25-THD) | |
| 11. | 7X-2465M | [2] | BOLT(M24X3X180-MM) | |
| 12. | 8T-4001M | [2] | NUT(M24X3-THD) | |
| 13. | 8T-4121 | [3] | WASHER-HARD(11X21X2.5-MM THK) | |
| 14. | 8T-4123 | [4] | WASHER(3.62X5.75X0.375-MM THK) | |
| 15. | 8T-4131M | [2] | NUT(M20X2.5-THD) | |
| 16. | 8T-4137M | [1] | BOLT(M10X1.5X20-MM) | |
| 17. | 8T-4167 | [4] | WASHER-HARD(26X44X4-MM THK) | |
| 18. | 8T-4170M | [2] | BOLT(M20X2.5X150-MM) | |
| 19. | 8T-4183M | [12] | BOLT(M12X1.75X40-MM) | |
| 20. | 8T-4189M | [2] | BOLT(M8X1.25X20-MM) | |
| 21. | 8T-4191M | [2] | BOLT(M10X1.5X16-MM) | |
| 22. | 8T-4223 | [12] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 23. | 8T-4224 | [3] | WASHER-HARD(8.8X16X2-MM THK) | |
| 24. | 9W-6584 | [2] | WASHER(20.5X114X10-MM THK) | |
| 25. | 9W-9930 | [2] | MOUNT AS | |
| | M | | METRIC PART |
