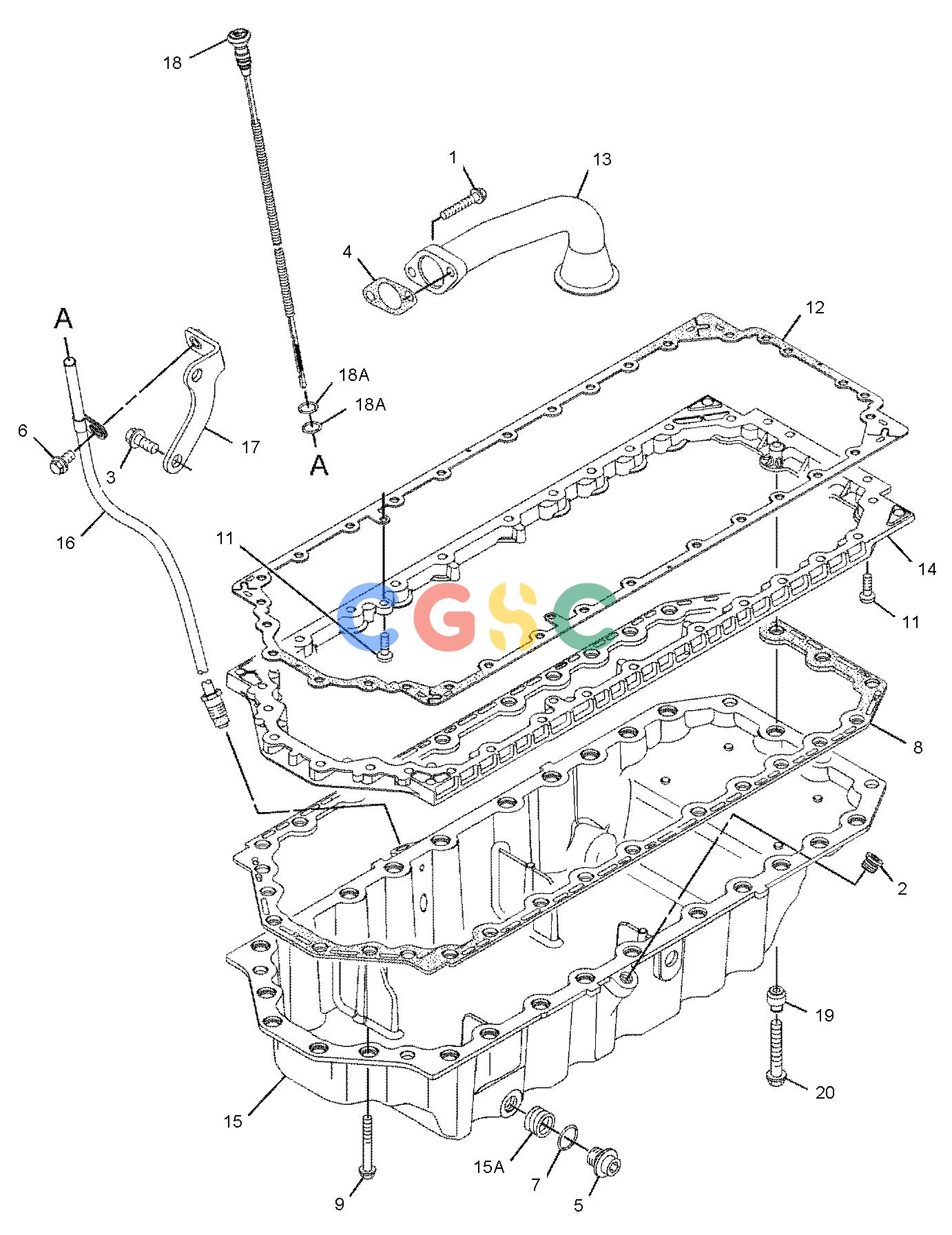

卡特零件查询（BG655D） 300-4439: PAN GP-OIL
广数供应链运营团队, 17 02月, 2025，浏览：
590 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6I-0260M | [1] | BOLT(M8X1.25X25-MM) | |
| 2. | 354-8322 | [1] | PLUG | |
| 3. | 6I-4200CM | [2] | BOLT(M10X1.5X16-MM) | |
| 4. | 6I-4681 | [1] | GASKET | |
| 5. | 7C-0351 | [1] | PLUG-DRAIN(ENGINE OIL) | |
| 6. | 124-3815M | [1] | BOLT(M8X1.25X16-MM) | |
| 7. | 275-9883 | [1] | SEAL | |
| 8. | 275-9884 | [1] | GASKET | |
| 9. | 6I-4374M | [28] | BOLT(M8X1.25X60-MM) | |
| 11. | 276-0142 | [6] | BOLT-SPECIAL(TORX) | |
| 12. | 331-4400 | [1] | GASKET(OIL PAN) | |
| 13. | 283-4302 | [1] | TUBE-OIL SUCTION | |
| 14. | 351-2090 | [1] | FRAME | |
| 15. | 289-9588 | [1] | PAN-OIL | |
| 15A. | 7C-1224 | [1] | INSERT | |
| 16. | 317-6665C | [1] | TUBE-OIL GAUGE | |
| 17. | 317-6664C | [1] | BRACKET | |
| 18. | 367-4073 | [1] | GAUGE AS-OIL(ENGINE) | |
| 18A. | 275-9891 | [2] | SEAL-O-RING | |
| 19. | 351-4685 | [30] | LIMITER | |
| 20. | 6I-1090M | [2] | BOLT(M8X1.25X40-MM) | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | M | | METRIC PART |
