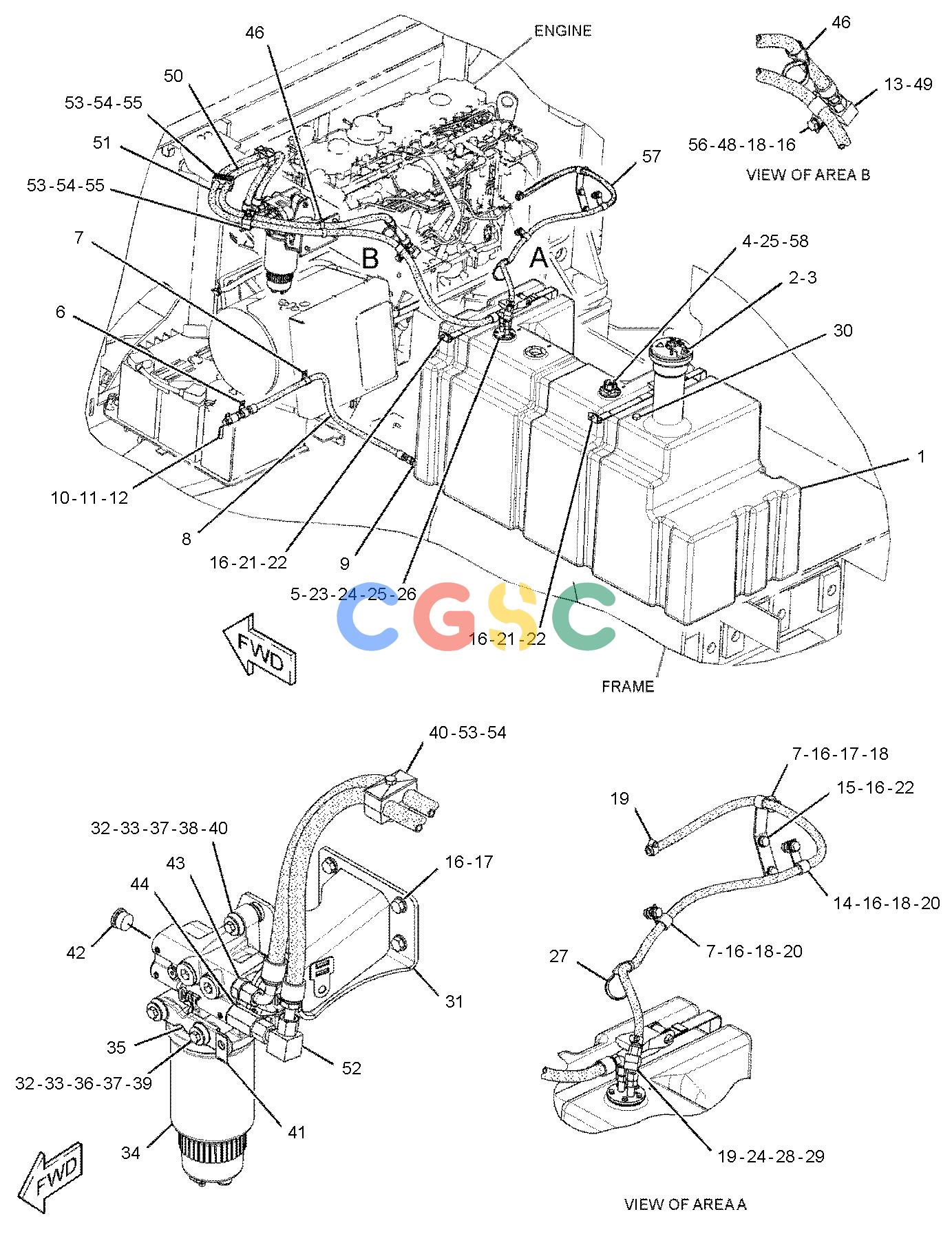

卡特零件查询（BG655D） 270-4256: LINES GP-FUEL
广数供应链运营团队, 17 02月, 2025，浏览：
209 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 305-6376Y | [1] | TANK & MTG GP-FUEL | |
| 2. | 9P-7121 | [1] | STRAINER-FUEL(FUEL TANK) | |
| 3. | 306-4998C | [1] | CAP GP-FUEL FILLER(LOCKABLE, VENTED) | |
| | 276-1243 | [1] | CAP AS-FUEL FILLER(LOCKABLE) | |
| | 278-5689 | [1] | BOOT-FUEL CAP | |
| | 279-9876 | [1] | FILTER ELEMENT-BREATHER(FUEL CAP) | |
| 4. | 274-1472 | [1] | SENDER-FUEL LEVEL(TANK) | |
| 5. | 9R-7240 | [1] | GASKET | |
| 6. | 6D-4244 | [1] | CLIP | |
| 7. | 8M-2773 | [3] | CLIP(LOOP) | |
| 8. | 2T-2524I | [1] | HOSE AS | |
| 9. | 203-2059 | [1] | CONNECTOR AS | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 8C-6869 | [1] | CONNECTOR | |
| 10. | 148-8336 | [1] | CONNECTOR AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8636 | [1] | CONNECTOR | |
| 11. | 124-6809 | [1] | VALVE-BALL(FUEL SHUTOFF) | |
| 12. | 148-8407 | [1] | PLUG AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 9S-4191 | [1] | PLUG(9/16-18-THD) | |
| 13. | 2U-6826 | [1] | CONNECTOR AS | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-9028 | [1] | SEAL-O-RING | |
| 14. | 6K-8178 | [1] | CLIP | |
| 15. | 283-4289 | [1] | PLATE | |
| 16. | 8T-4121 | [18] | WASHER-HARD(11X21X2.5-MM THK) | |
| 17. | 8T-4137M | [5] | BOLT(M10X1.5X20-MM) | |
| 18. | 8T-4133M | [4] | NUT(M10X1.5-THD) | |
| 19. | 5P-4961 | [2] | CLAMP-HOSE | |
| 20. | 8T-4195M | [2] | BOLT(M10X1.5X30-MM) | |
| 21. | 346-4831 | [2] | STRAP AS | |
| 22. | 8T-4191M | [6] | BOLT(M10X1.5X16-MM) | |
| 23. | 308-0492 | [1] | LINE AS-FUEL | |
| 24. | 6V-8397 | [2] | SEAL-O-RING | |
| 25. | 8T-0328 | [15] | WASHER-HARD(5.5X10X1-MM THK) | |
| 26. | 6V-4298M | [5] | BOLT(M5X0.8X16-MM) | |
| 27. | 178-3620 | [1] | STRAP-DUAL CLAMP | |
| 28. | 148-8371 | [1] | ELBOW AS | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 8C-8988 | [1] | ELBOW | |
| 29. | 5E-9315 | [1] | FITTING-HOSE | |
| 30. | 148-8411 | [1] | PLUG AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 9S-4185 | [1] | PLUG(3/4-16-THD) | |
| 31. | 305-6382 | [1] | BRACKET AS | |
| 32. | 7X-0613 | [3] | WASHER-HARD(8.8X25.5X5-MM THK) | |
| 33. | 8T-9655 | [8] | MOUNT-ISOLATION(ISOLATION) | |
| 34. | 212-3657Y | [1] | PUMP GP-FUEL PRM & WATER SEP(ELECTRIC) | |
| 35. | 232-1374 | [1] | BRACKET | |
| 36. | 232-1376 | [2] | SPACER(8.5X12.7X139.1-MM THK) | |
| 37. | 7X-0579 | [3] | WASHER-HARD(8.8X25.5X2-MM THK) | |
| 38. | 191-1782 | [1] | SPACER(8.5X12.7X38.2-MM THK) | |
| 39. | 8T-7352M | [2] | BOLT(M8X1.25X160-MM) | |
| 40. | 8T-6869M | [2] | BOLT(M8X1.25X60-MM) | |
| 41. | 209-7659 | [1] | PLATE-INFORMATION(FUEL PRIMING PUMP ON, OFF) | |
| 42. | 201-4340 | [2] | PLUG AS | |
| | | | (EACH INCLUDES) |
| | 6V-4589 | [1] | SEAL-O-RING | |
| | 9S-8006 | [1] | PLUG(7/8-14-THD) | |
| 43. | 148-8345 | [1] | CONNECTOR AS | |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8638 | [1] | CONNECTOR | |
| 44. | 268-1604 | [1] | CONNECTOR AS | |
| 46. | 177-2215 | [2] | STRAP-DUAL CLAMP | |
| 48. | 8S-0948 | [1] | CLIP | |
| 49. | 164-5544 | [1] | ELBOW AS | |
| | 3E-2333 | [1] | ELBOW | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| 50. | 210-2277I | [1] | HOSE AS | |
| 51. | 305-6383I | [1] | HOSE AS | |
| 52. | 148-8370 | [1] | ELBOW AS | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-9851 | [1] | ELBOW | |
| 53. | 154-6583 | [6] | CLAMP-HALF | |
| 54. | 102-8705 | [3] | PLATE(TOP) | |
| 55. | 7X-0818M | [2] | BOLT(M8X1.25X45-MM) | |
| 56. | 8T-4136M | [1] | BOLT(M10X1.5X25-MM) | |
| 57. | 5P-1442E | | HOSE(137-CM) | |
| 58. | 6V-2313M | [5] | BOLT(M5X0.8X30-MM) | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | E | | ORDER BY THE CENTIMETER |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
