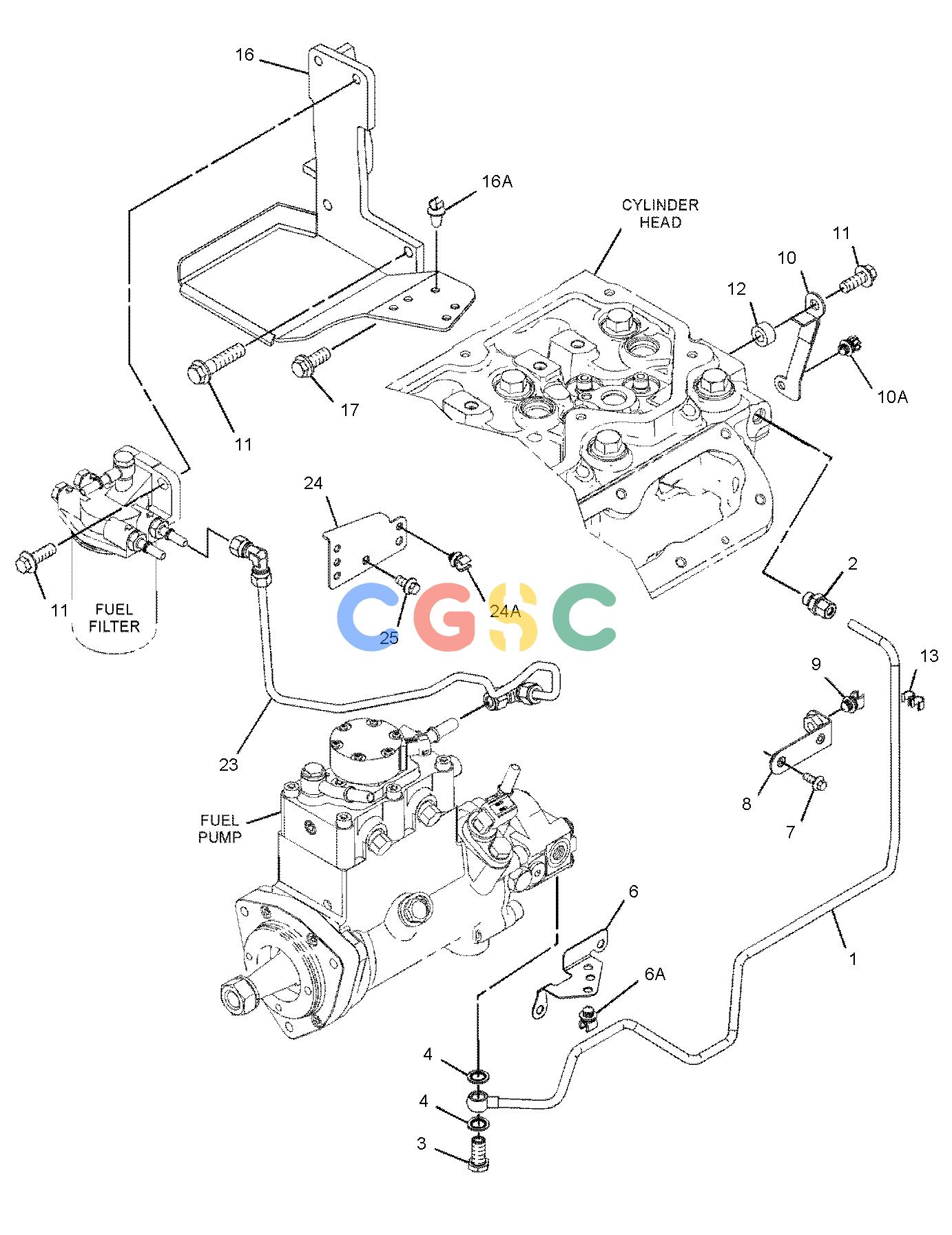

卡特零件查询（BG655D） 308-6532: LINES GP-FUEL
广数供应链运营团队, 17 02月, 2025，浏览：
810 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 295-6734 | [1] | PIPE | |
| 2. | 277-6165 | [2] | CONNECTION-FUEL | |
| 3. | 295-4670 | [1] | BOLT-SPECIAL(BANJO) | |
| 4. | 286-2890 | [2] | WASHER | |
| 5. | 317-7147 | [1] | CLIP | |
| 6. | 308-6538 | [1] | BRACKET AS | |
| 6A. | 232-1115 | [2] | CLIP-PIPE | |
| 7. | 106-8916M | [2] | BOLT(M6X16-MM) | |
| 8. | 306-5432 | [1] | BRACKET | |
| 9. | 232-1115 | [1] | CLIP-PIPE | |
| 10. | 302-5695 | [1] | BRACKET AS | |
| 10A. | 298-4576 | [1] | CLIP | |
| 11. | 6I-0654M | [6] | BOLT(M10X1.5X25-MM) | |
| 12. | 278-0314 | [1] | SPACER | |
| 13. | 234-3063 | [1] | CLIP | |
| 14. | 311-1290 | [1] | TUBE-FUEL FILTER | |
| 15. | 293-8068 | [1] | TUBE-FUEL | |
| 16. | 311-2225 | [1] | BRACKET AS | |
| 16A. | 232-1115 | [5] | CLIP-PIPE | |
| 17. | 6I-0217M | [1] | BOLT(M8X1.25X20-MM) | |
| 18. | 308-6537 | [1] | TUBE AS | |
| 19. | 215-9509 | [1] | FITTING(QUICK DISCONNECT, MALE) | |
| 20. | 331-3776 | [1] | BRACKET | |
| 21. | 6I-0260M | [2] | BOLT(M8X1.25X25-MM) | |
| 23. | 311-1686 | [1] | TUBE | |
| 24. | 308-6536 | [1] | BRACKET AS | |
| 24A. | 232-1115 | [4] | CLIP-PIPE | |
| 25. | 124-3815M | [2] | BOLT(M8X1.25X16-MM) | |
| 26. | 311-2232 | [1] | BRACKET AS | |
| 26A. | 232-1115 | [1] | CLIP-PIPE | |
| 27. | 311-1952 | [1] | BRACKET AS | |
| 27A. | 232-1115 | [4] | CLIP-PIPE | |
| 28. | 311-1927 | [1] | BRACKET AS | |
| 28A. | 232-1115 | [2] | CLIP-PIPE | |
| | | | |
| | 278-4138F | [5] | PROTECTION GP-FUEL SYSTEM | |
| | F | | NOT SHOWN |
| | M | | METRIC PART |
