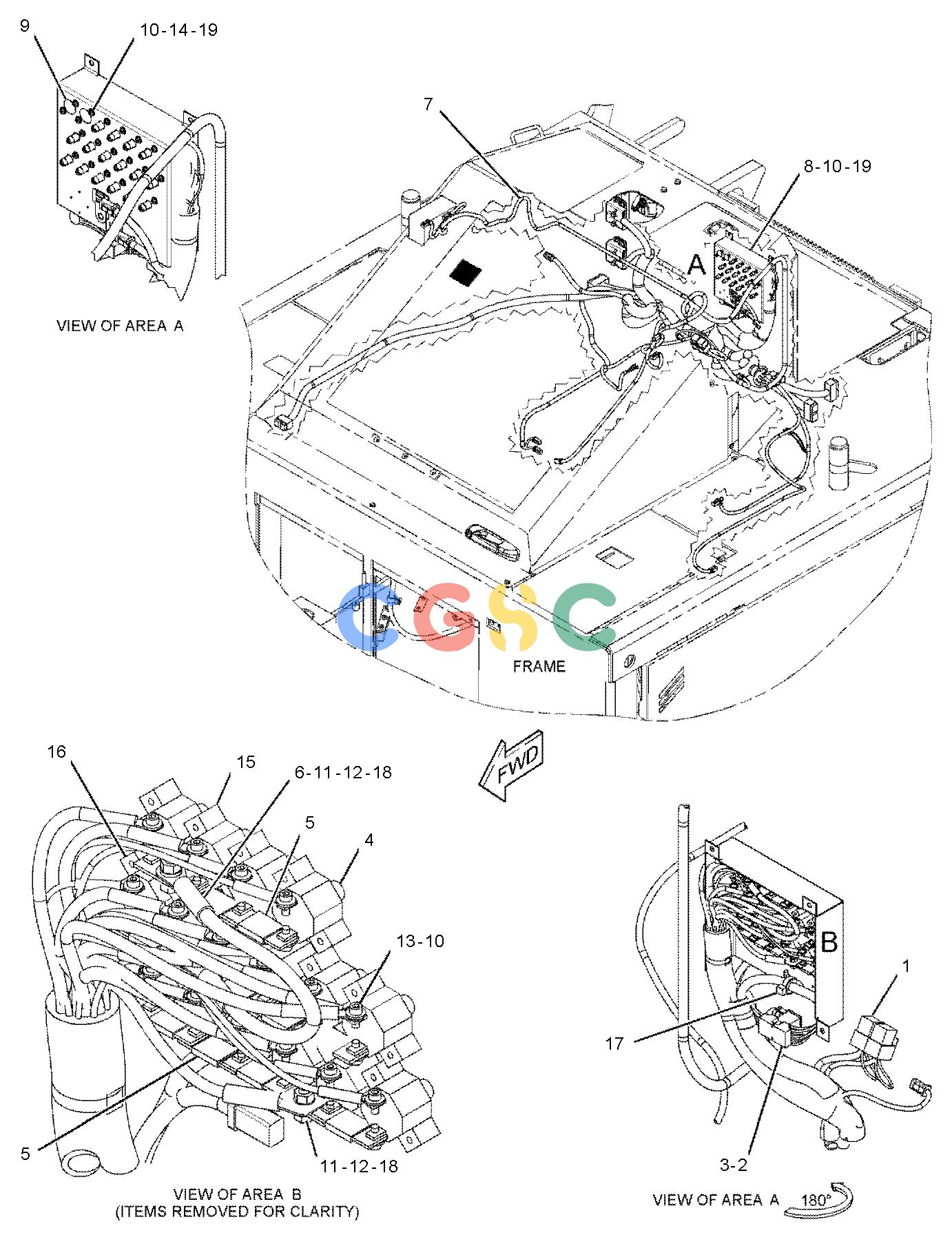

| 1. | 3E-6477 | [2] | RELAY AS(24-VOLT)(ENGINE START) | |
| 2. | 8T-5570 | [1] | SOCKET | |
| 3. | 105-4684 | [1] | RELAY AS(24-VOLT)(ENGINE START) | |
| 4. | 226-7300 | [1] | CIRCUIT BREAKER AS(25-AMPERE) | |
| | 6V-8376 | [2] | SCREW-MACHINE(8-32X0.25-IN) | |
| | 9B-7233 | [2] | LOCKWASHER | |
| 5. | 236-0872 | [13] | STRAP AS | |
| 6. | 280-6834 | [1] | WIRE AS(6-GA) | |
| 7. | 292-7942 | [1] | HARNESS AS-CONTROL | |
| | 126-1774 | [2] | COVER-CONNECTOR | |
| | 7T-6365 | [2] | HOUSING-RECEPTACLE | |
| | 8N-1544 | [1] | PIN-CONNECTOR(8-GA) | |
| | 8N-1546 | [1] | PIN-CONNECTOR(6-GA) | |
| | 155-2270 | [13] | KIT-CONNECTING PLUG(2-PIN) | |
| | 155-2260 | [1] | KIT-CONNECTING PLUG(3-PIN) | |
| | 155-2274 | [1] | KIT-CONNECTING PLUG(6-PIN) | |
| | | | (EACH PLUG KIT INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 7X-6222 | [1] | PLUG AS-CONNECTOR(24-PIN) | |
| | 3E-8558M | [1] | BOLT(M5X0.8X39.37-MM) | |
| | 3E-4367 | [1] | RING-RETAINING | |
| | 9X-3265 | [2] | SEAL-CONNECTOR(24-PIN) | |
| | 147-1445 | [1] | PLUG AS-CONNECTOR(70-PIN) | |
| | 147-1446 | [1] | PLUG AS-CONNECTOR(70-PIN) | |
| | | | (EACH PLUG AS INCLUDES) |
| | 159-9322 | [1] | SEAL-O-RING | |
| | 183-5784 | [3] | PLUG AS-CONNECTOR(40-PIN) | |
| | | | (EACH INCLUDES) |
| | 3E-8557M | [1] | BOLT(M5X0.8X39.37-MM) | |
| | 3E-4367 | [1] | RING-RETAINING | |
| | 9X-3490 | [2] | SEAL-CONNECTOR(40-PIN) | |
| | 8T-8737 | [134] | PLUG-SEAL | |
| | 102-8802 | [6] | KIT-RECEPTACLE(2-PIN) | |
| | 102-8803 | [1] | KIT-RECEPTACLE(3-PIN) | |
| | | | (EACH RECEPTACLE KIT INCLUDES RECEPTACLE AS & WEDGE) |
| | 127-5484 | [1] | RECEPTACLE AS-CONNECTOR(1-PIN) | |
| | 127-5486 | [1] | RECEPTACLE AS-CONNECTOR(1-PIN) | |
| | 160-2244G | | SLEEVE-ABRASION(14.2-IN) | |
| | 160-2246G | | SLEEVE-ABRASION(39.8-IN) | |
| | 180-9340 | [198] | SOCKET-CONNECTOR(14-GA TO 18-GA) | |
| | 126-1768 | [2] | SOCKET-CONNECTOR(14-GA TO 16-GA) | |
| | 9X-6772 | [4] | STRAP-CABLE | |
| | 5P-4571 | [2] | TERMINAL-BLADE(14-GA TO 16-GA) | |
| | 131-1489 | [2] | TERMINAL AS-RING(6-GA TO 8-GA) | |
| | | | (EACH INCLUDES) |
| | 6H-3592 | | TERMINAL-RING(6-GA TO 8-GA, 5/16-IN SCREW) | |
| | 119-3662E | | TUBE-HEAT SHRINK(10.85-MM DIA)(4-CM) | |
| | 131-1492 | [3] | TERMINAL AS-RING(6-GA TO 8-GA) | |
| | | | (EACH INCLUDES) |
| | 3K-4528 | | TERMINAL-RING(6-GA TO 8-GA, 1/2-IN SCREW) | |
| | 119-3662E | | TUBE-HEAT SHRINK(10.85-MM DIA)(4-CM) | |
| | 2L-8065 | [11] | TERMINAL-RING(10-GA TO 12-GA, NO. 8 SCREW) | |
| | 2L-8071 | [2] | TERMINAL-RING(10-GA TO 12-GA, 1/2-IN SCREW) | |
| | 2L-8075 | [7] | TERMINAL-RING(14-GA TO 16-GA, NO. 8 SCREW) | |
| | 2L-8076 | [2] | TERMINAL-RING(14-GA TO 16-GA, NO. 10 SCREW) | |
| | 7T-6364 | [8] | TERMINAL-BLADE(12-GA TO 16-GA) | |
| | 119-3662E | | TUBE-HEAT SHRINK(10.85-MM DIA)(13-CM) | |
| | 125-7875E | | TUBE-HEAT SHRINK(7.44-MM DIA)(65-CM) | |
| 8. | 292-7943 | [1] | PANEL AS-CIRCUIT BREAKER | |
| 9. | 2V-3726 | [2] | BUMPER | |
| 10. | 4B-4863 | [72] | WASHER(4.7X11X1.2-MM THK) | |
| 11. | 5C-2890M | [3] | NUT(M6X1-THD) | |
| 12. | 5C-9553M | [3] | BOLT(M6X1X16-MM) | |
| 13. | 6D-3031 | [32] | SCREW-SOCKET HEAD(8-32X0.375-IN) | |
| 14. | 6D-5801 | [4] | LOCKNUT(8-32-THD) | |
| 15. | 6T-3643 | [10] | CIRCUIT BREAKER AS(15-AMPERE) | |
| 16. | 6T-3644 | [5] | CIRCUIT BREAKER AS(20-AMPERE) | |
| | | | (EACH CIRCUIT BREAKER AS INCLUDES) |
| | 6V-8376 | [2] | SCREW-MACHINE(8-32X0.25-IN) | |
| | 9B-7233 | [2] | LOCKWASHER | |
| 17. | 7K-1181 | [2] | STRAP-CABLE | |
| 18. | 9X-8256 | [6] | WASHER(6.6X12X2-MM THK) | |
| 19. | 9X-8486 | [36] | SCREW-MACHINE(8-32X0.75-IN) | |
| | E | | ORDER BY THE CENTIMETER |
| | G | | ORDER BY THE INCH |
| | M | | METRIC PART |
