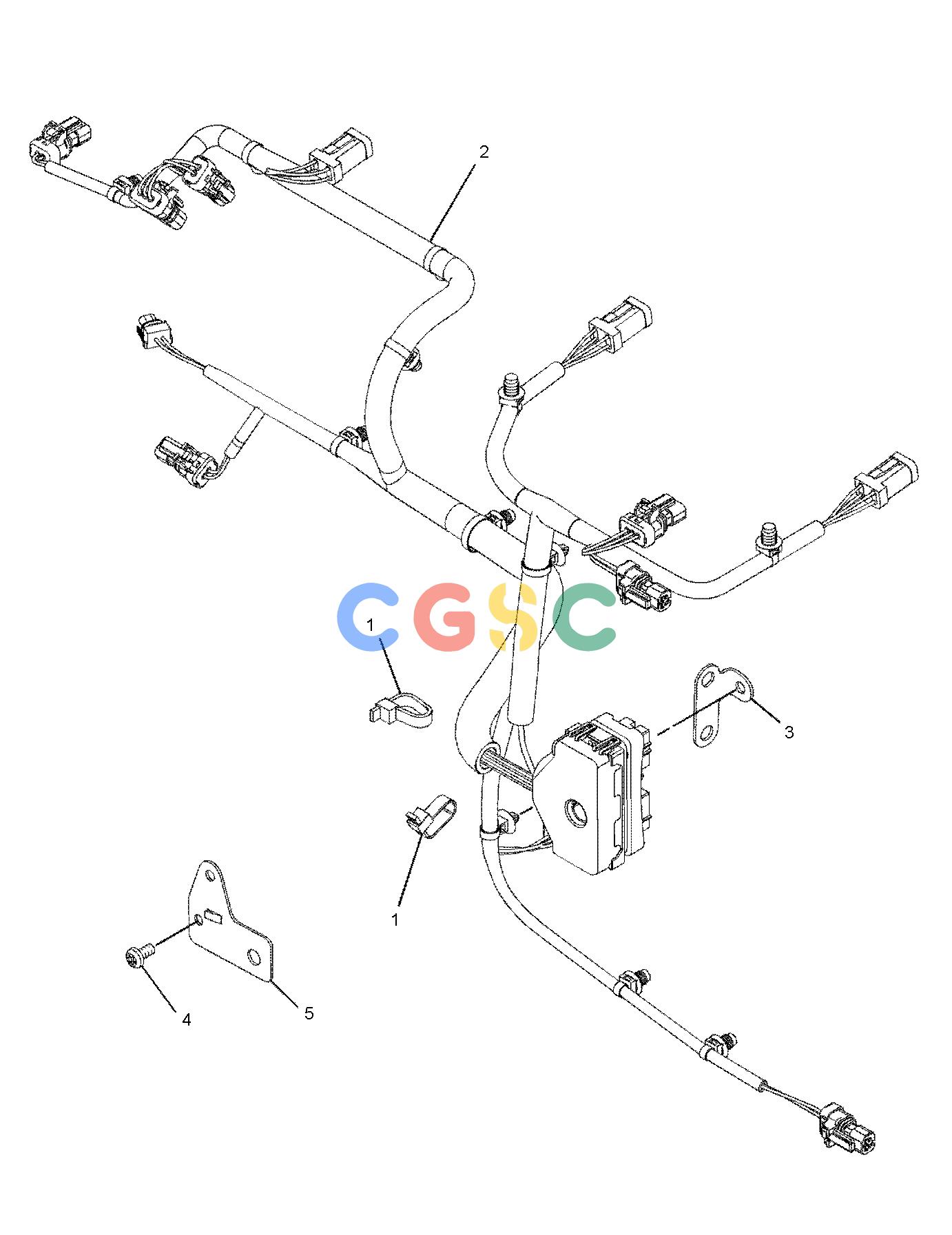

卡特零件查询（BG655D） 277-0633: HARNESS AS-ENGINE
广数供应链运营团队, 17 02月, 2025，浏览：
434 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 245-1045 | [1] | COVER | |
| | 245-1044 | [2] | LOCK-CONNECTOR | |
| | 9X-3401 | [11] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | | | -OR- |
| | 126-1767 | [11] | PIN-CONNECTOR(14-GA TO 16-GA) | |
| | 155-2270 | [1] | KIT-CONNECTING PLUG(2-PIN) | |
| | 174-0503 | [1] | KIT-CONNECTING PLUG(3-PIN) | |
| | 155-2265 | [1] | KIT-CONNECTING PLUG(8-PIN) | |
| | | | (EACH PLUG KIT INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 245-1042 | [1] | PLUG AS-CONNECTOR(64-PIN) | |
| | 267-7207M | [1] | BOLT-SPECIAL(M6X1-THD) | |
| | 245-1048 | [45] | PLUG-CONNECTOR(1-PIN) | |
| | 8T-8737 | [3] | PLUG-SEAL | |
| | 102-8801 | [1] | KIT-RECEPTACLE(12-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 194-5226 | [11] | WIRE AS(16-GA) | |
| | | | -OR- |
| | 194-5227 | [11] | WIRE AS(14-GA) | |
| | 267-9572 | [19] | SOCKET-CONNECTION(18-GA) | |
| | 2L-8050 | [2] | TERMINAL-RING(6-GA, 1/4-IN SCREW) | |
| | | | -OR- |
| | 2L-8058 | [2] | TERMINAL-RING(8-GA, 1/4-IN SCREW) | |
| | 2L-8071 | [2] | TERMINAL-RING(10-GA TO 12-GA, 1/2-IN SCREW) | |
| | 125-7875E | | TUBE-HEAT SHRINK(7.44-MM DIA)(15-CM) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
