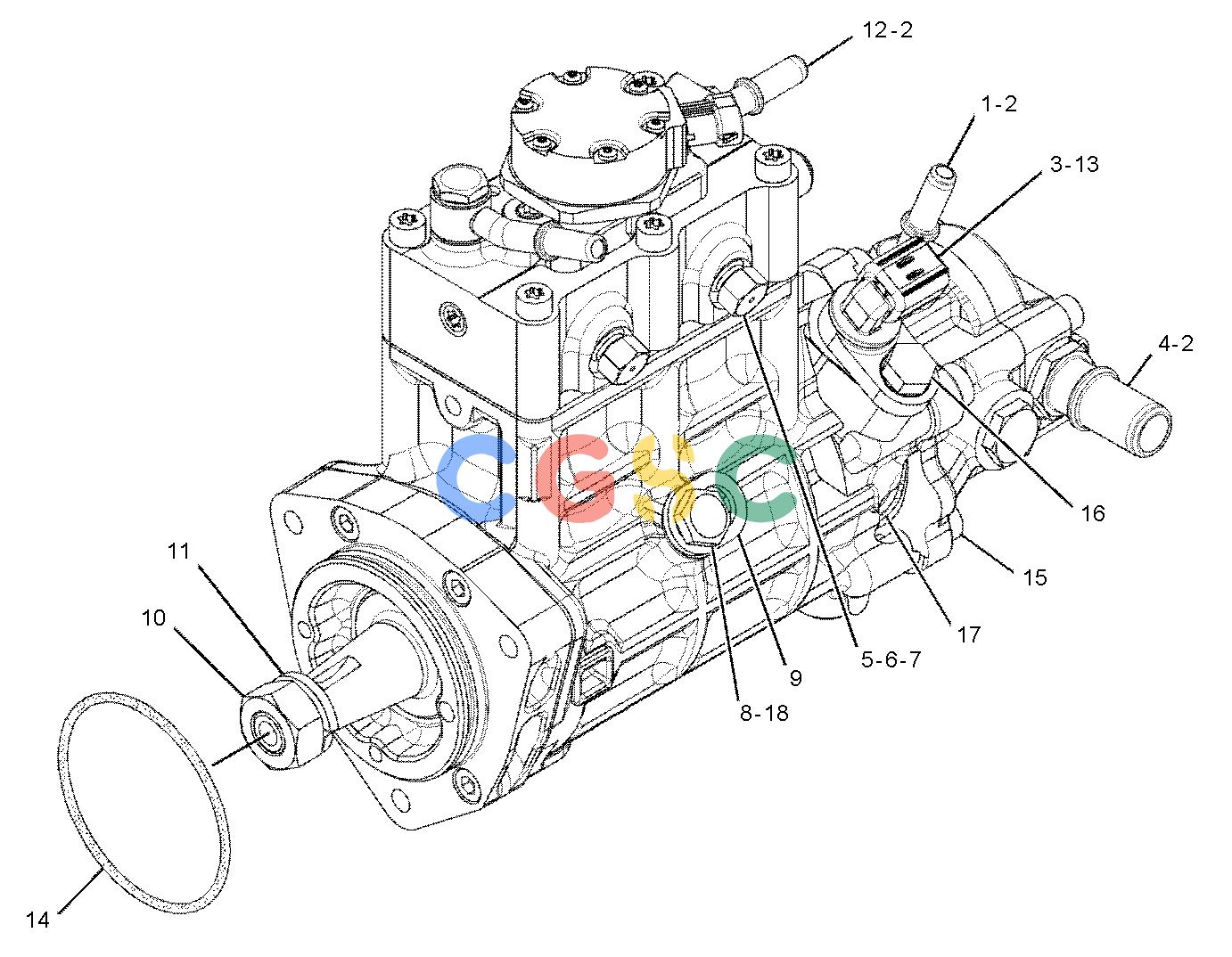

卡特零件查询（BG655D） 351-0973: PUMP GP-FUEL INJECTION
广数供应链运营团队, 17 02月, 2025，浏览：
284 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 228-0172 | [1] | FITTING-FUEL | |
| 2. | 228-7100 | [3] | SEAL-O-RING | |
| 3. | 238-0120 | [1] | SENSOR GP-SPEED(SECONDARY, TIMING) | |
| 4. | 248-1066 | [1] | FITTING-FUEL | |
| 5. | 257-2381 | [2] | PIN | |
| 6. | 257-2382 | [2] | PLUG | |
| 7. | 258-8149 | [2] | SPRING | |
| 8. | 294-3031 | [1] | BOLT-SPECIAL | |
| 9. | 294-3032 | [1] | WASHER-SPECIAL | |
| 10. | 295-4801M | [1] | NUT(M14X1.5-THD) | |
| 11. | 296-3542 | [1] | LOCKWASHER | |
| 12. | 351-2799 | [1] | FITTING | |
| 13. | 117-1385 | [1] | SEAL-O-RING | |
| 14. | 334-2932 | [1] | SEAL-O-RING | |
| 15. | 5A-3604M | [5] | BOLT-SOCKET HEAD(M8X1.25X25-MM) | |
| 16. | 8T-4200M | [1] | BOLT(M8X1.25X16-MM) | |
| 17. | 247-6019 | [1] | SEAL-O-RING | |
| 18. | 8L-2779 | [1] | SEAL-O-RING | |
| | M | | METRIC PART |
