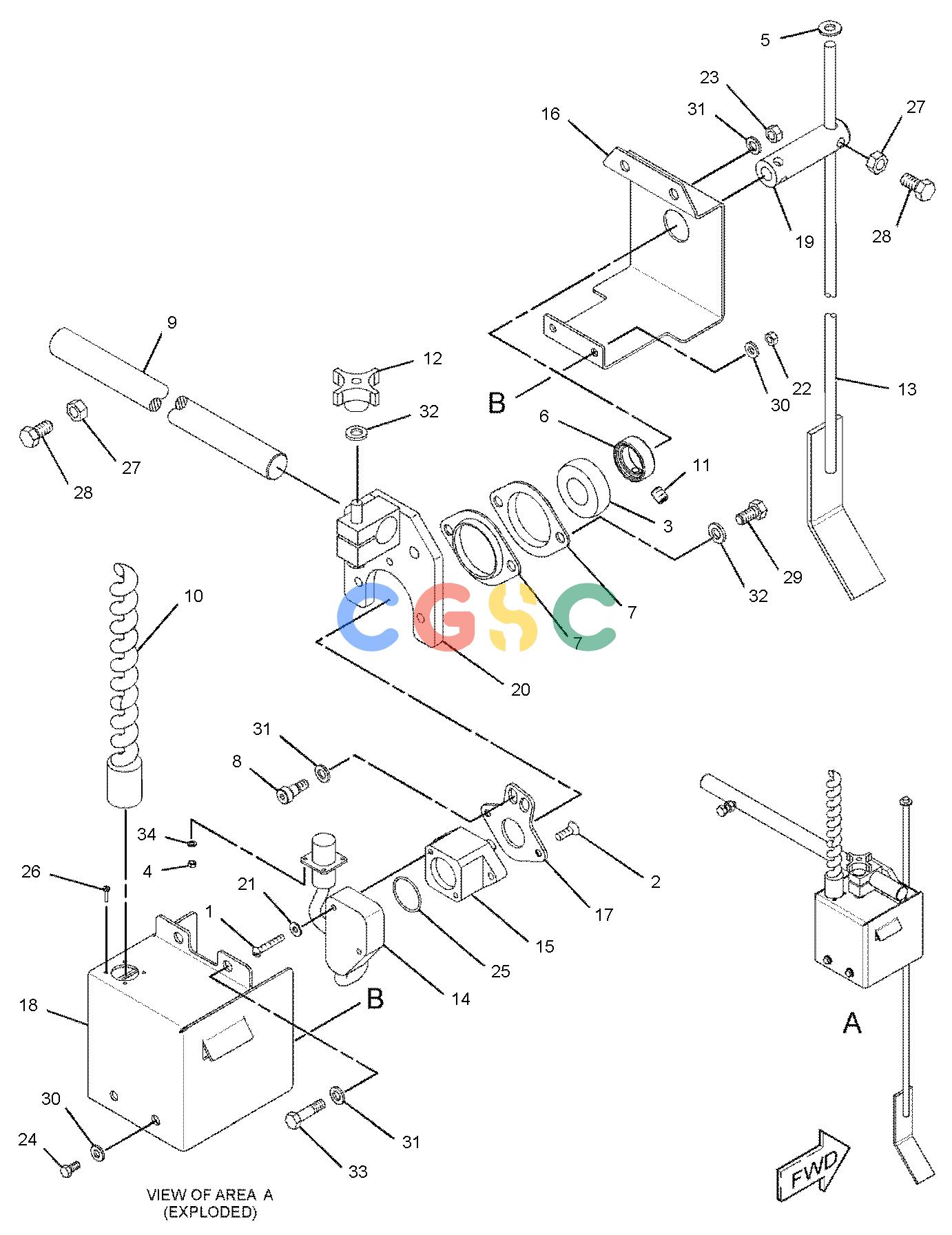

卡特零件查询（BG655D） 330-6085: SENSOR & MOUNTING GP
广数供应链运营团队, 17 02月, 2025，浏览：
839 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 107-4749 | [2] | PLATE | |
| 2. | 134-9621 | [4] | HANDLE | |
| 3. | 146-9410 | [2] | COLLAR | |
| 4. | 187-2082 | [2] | LEVER-CONTROL | |
| 5. | 298-0641 | [1] | TUBE AS | |
| 6. | 298-0644 | [2] | MOUNT AS-SENSOR | |
| 7. | 330-8554 | [1] | CABLE AS | |
| 8. | 331-1991 | [1] | MOUNT AS-SENSOR | |
| 9. | 332-1018 | [2] | PLATE-TAPPED | |
| 10. | 491-4597 | [1] | SENSOR GP-ENGINE ELECTRONIC(POSITION) | |
| | 327-8068 | [1] | ARM-FOLLOWER | |
| | 327-8069 | [1] | ARM AS-SENSOR | |
| | 327-8070 | [1] | RUNNER-SKI | |
| | 334-9446 | [1] | CAP-CONNECTOR | |
| 11. | 1G-8781 | [4] | CLAMP | |
| 12. | 264-3631 | [1] | BOLT(3/4-10X2.5-IN) | |
| 13. | 7X-0366 | [3] | BOLT(3/4-10X2-IN) | |
| 14. | 9X-2480M | [4] | BOLT(M6X1X45-MM) | |
| 15. | 351-4852 | [1] | LEVER-CONTROL | |
| | M | | METRIC PART |
