卡特零件查询（BG655D） 198-8279: SENSOR GP-AUGER
广数供应链运营团队, 17 02月, 2025，浏览：
979 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2F-7888 | [4] | SCREW-MACHINE(10-32X1.25-IN) | |
| 2. | 4B-1282 | [4] | SCREW-MACHINE(1/4-20X0.75-IN) | |
| 3. | 5D-3546 | [2] | COLLAR | |
| 4. | 6B-4540 | [6] | NUT(4-40-THD) | |
| 5. | 6P-6256 | [2] | RETAINER-SPRING | |
| 6. | 6T-8387 | [2] | BEARING | |
| 7. | 6T-8388 | [4] | FLANGE | |
| 8. | 7D-9708 | [2] | BOLT-SPECIAL | |
| 9. | 8C-8267 | [2] | ROD-SENSOR | |
| 10. | 239-2111 | [2] | CABLE AS-COILED | |
| | | | (EACH INCLUDES) |
| | 237-7508 | [1] | LINK | |
| | 241-8153 | [2] | PLUG AS | |
| 11. | 095-1267M | [2] | SETSCREW-SOCKET(M10X1.5-THD) | |
| 12. | 116-2807 | [2] | KNOB | |
| 13. | 129-0844 | [2] | PADDLE AS | |

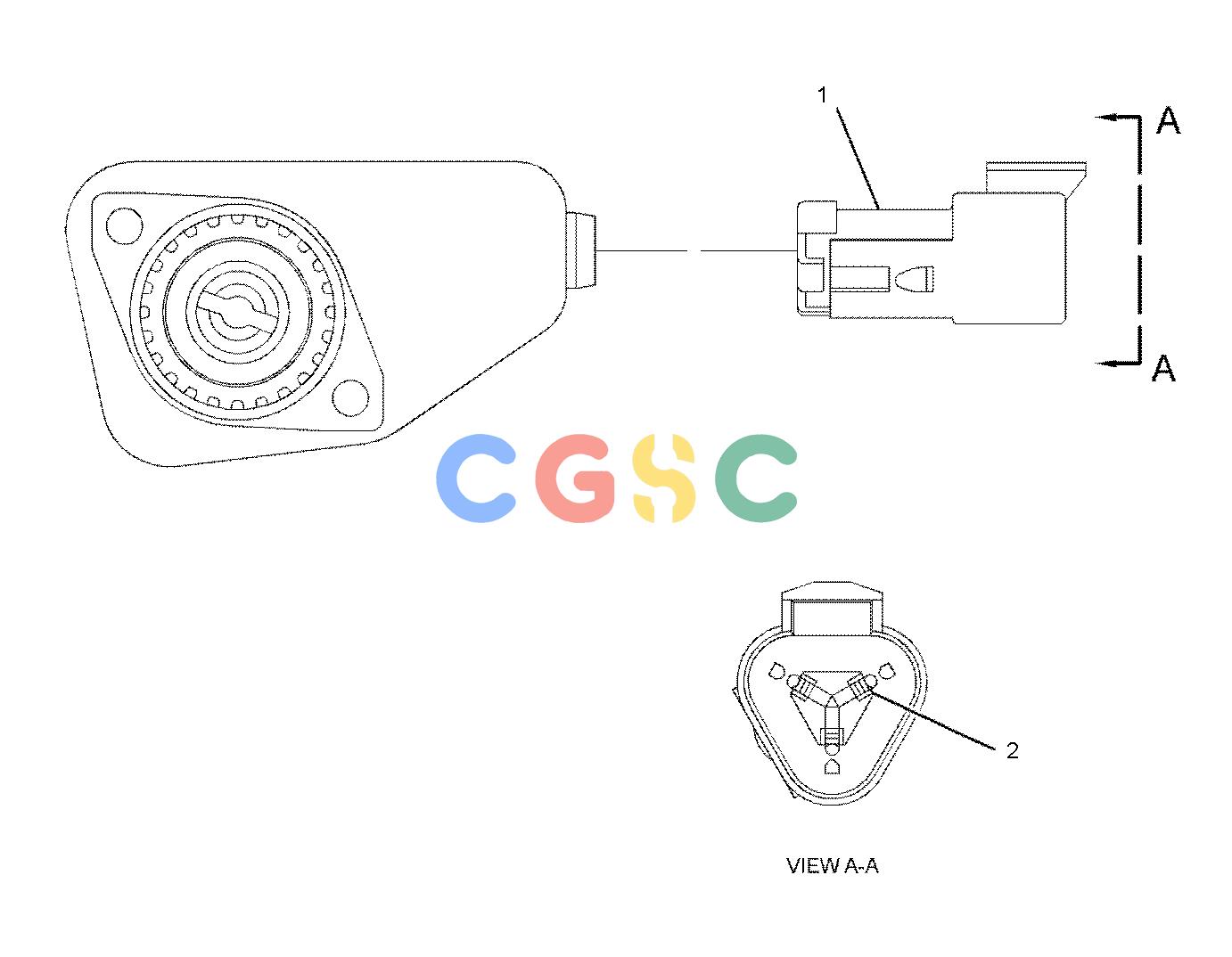

| 14. | 266-1480Y | [2] | SENSOR GP-POSITION(ROTARY) | |
| 15. | 166-0691 | [2] | BLOCK AS-MOUNTING(POSITION SENSOR) | |
| 16. | 167-9664 | [2] | PLATE | |
| 17. | 366-7856 | [2] | ARM(AUGER) | |
| 18. | 199-2888 | [2] | COVER | |
| 19. | 199-4165 | [2] | SHAFT | |
| 20. | 199-5112 | [2] | SUPPORT AS | |
| | | | (EACH INCLUDES) |
| | 8T-9377 | [1] | BOLT(3/8-16X2.25-IN) | |
| 21. | 4B-4274 | [4] | WASHER(5.5X13X1.2-MM THK) | |
| 22. | 5C-2890M | [4] | NUT(M6X1-THD) | |
| 23. | 5C-7261M | [4] | NUT(M8X1.25-THD) | |
| 24. | 5C-9553M | [4] | BOLT(M6X1X16-MM) | |
| 25. | 6V-0894 | [2] | SEAL-O-RING | |
| 26. | 6V-2480 | [6] | SCREW(4-40X0.5-IN) | |
| 27. | 8T-4133M | [4] | NUT(M10X1.5-THD) | |
| 28. | 8T-4136M | [4] | BOLT(M10X1.5X25-MM) | |
| 29. | 8T-4191M | [4] | BOLT(M10X1.5X16-MM) | |
| 30. | 8T-4205 | [8] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 31. | 8T-4224 | [10] | WASHER-HARD(8.8X16X2-MM THK) | |
| 32. | 8T-4896 | [6] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 33. | 8T-7547M | [4] | BOLT(M8X1.25X30-MM) | |
| 34. | 9B-1117 | [6] | LOCKWASHER | |
| | | | QUANTITIES SHOWN ARE THOSE REQUIRED FOR BOTH LH & RH SIDES |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
