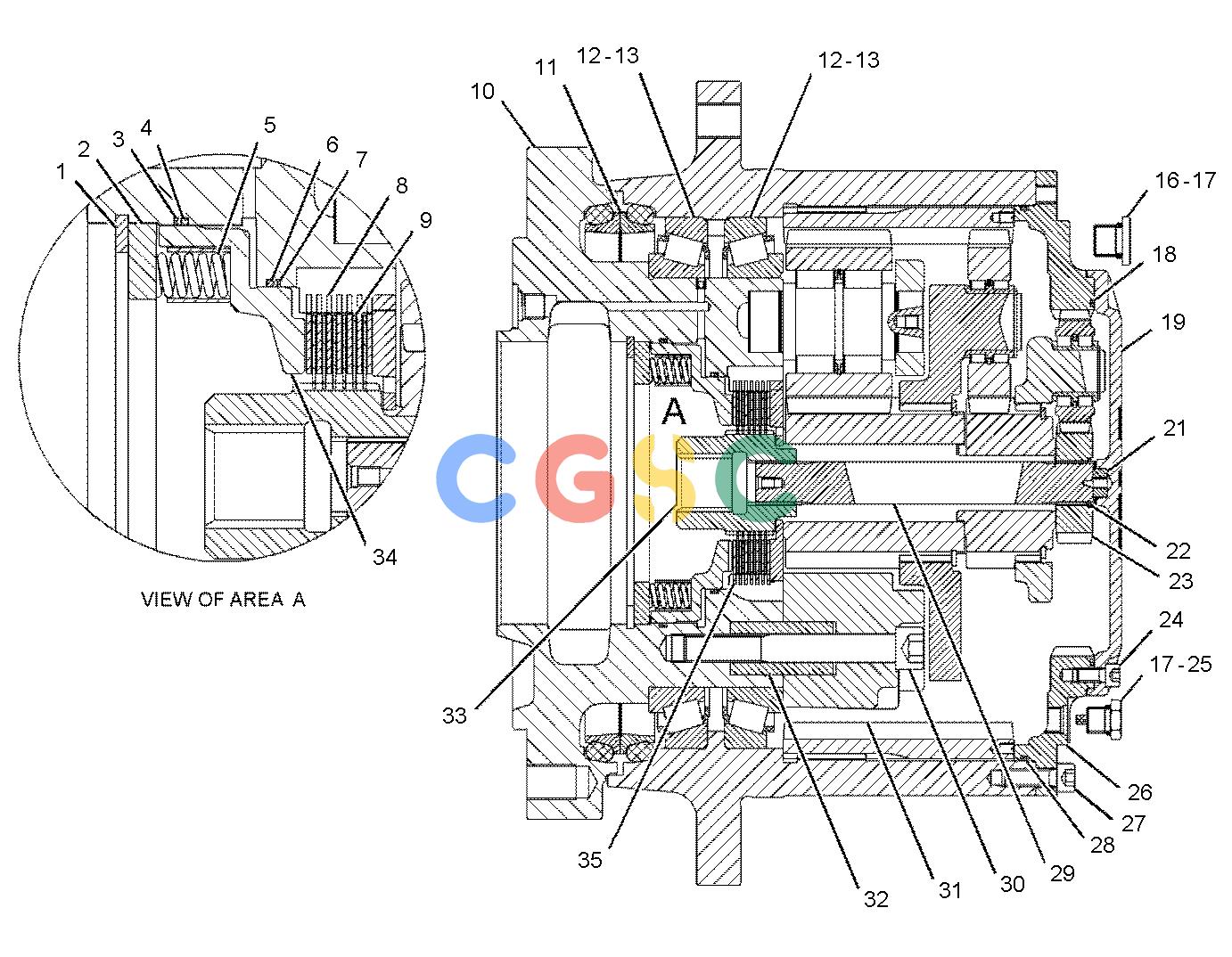

卡特零件查询（BG655D） 322-3269: PLANETARY GP-FINAL DRIVE
广数供应链运营团队, 17 02月, 2025，浏览：
159 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 150-2578 | [1] | RING-RETAINING | |
| 2. | 371-1922 | [1] | DISC-RETAINING | |
| 3. | 207-2816 | [1] | RING-BACKUP | |
| 4. | 207-2814 | [1] | SEAL-O-RING | |
| 5. | 207-2817 | [22] | SPRING | |
| 6. | 207-2813 | [1] | SEAL-O-RING | |
| 7. | 207-2815 | [1] | RING-BACKUP | |
| 8. | 136-8068 | [7] | DISC-MIDDLE | |
| 9. | 136-8064 | [6] | DISC-FRICTION | |
| 10. | 371-2423 | [1] | HUB | |
| 11. | 7T-2459 | [1] | SEAL GP-DUO-CONE | |
| | 7T-2457 | [2] | RING-TORIC | |
| 12. | 151-3085 | [2] | CUP | |
| 13. | 151-3084 | [2] | CONE | |
| 16. | 151-7518 | [2] | PLUG | |
| 17. | 151-7517 | [3] | SEAL-O-RING | |
| 18. | 136-8641 | [1] | SEAL-O-RING | |
| 19. | 371-1928 | [1] | COVER | |
| 21. | 191-2287 | [1] | PAD | |
| 22. | 6V-8754 | [1] | RING-RETAINING | |
| 23. | 371-1926 | [1] | GEAR-INPUT(24-TEETH) | |
| 24. | 237-5121M | [6] | BOLT-SOCKET HEAD(M8X1.25X16-MM) | |
| 25. | 151-7516 | [1] | PLUG-DRAIN(FINAL DRIVE PLANETARY) | |
| 26. | 371-1953 | [1] | GEAR-RING(75-TEETH) | |
| 27. | 9X-6032M | [8] | BOLT-SOCKET HEAD(M10X1.5X30-MM) | |
| 28. | 2D-6533 | [1] | SEAL-O-RING | |
| 29. | 371-1925 | [1] | SHAFT | |
| 30. | 095-0707M | [4] | BOLT(M16X2X120-MM) | |
| 31. | 243-0716 | [1] | GEAR-RING(69-TEETH) | |
| 32. | 327-8065 | [4] | BUSHING | |
| 33. | 371-1920 | [1] | COUPLING | |
| 34. | 371-1921 | [1] | PISTON-BRAKE | |
| 35. | 387-4403 | [1] | DISC-RETAINING | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 371-2173 | [1] | KIT-GEAR(THIRD STAGE) | |
| | 371-2174 | [1] | KIT-GEAR(SECOND STAGE) | |
| | 371-1978 | [1] | KIT-PLANETARY CARRIER(STAGE 1) | |
| | M | | METRIC PART |
