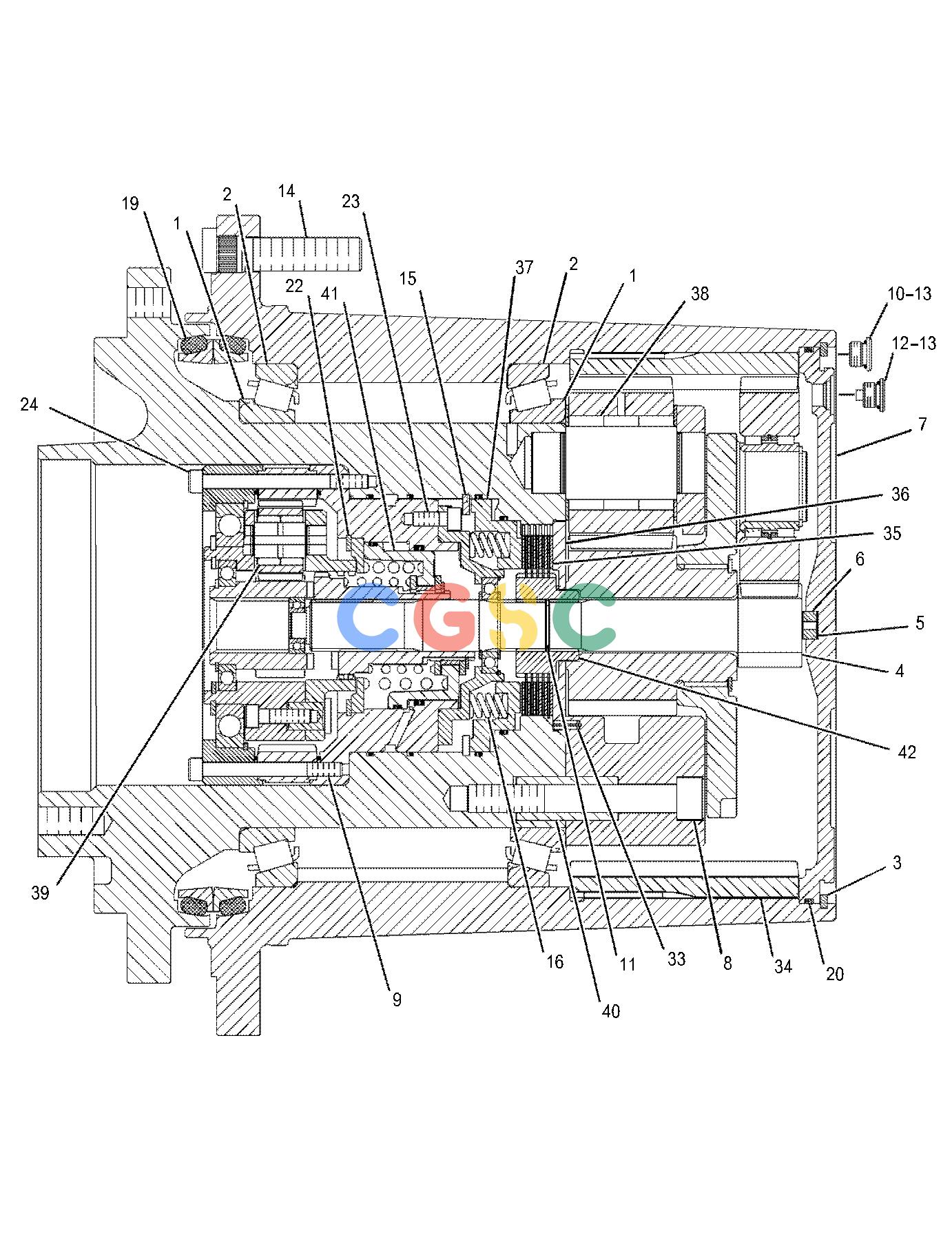

| 1. | 151-3084 | [2] | CONE | |
| 2. | 151-3085 | [2] | CUP | |
| 3. | 241-0163 | [1] | RING-RETAINING | |
| 4. | 240-9113 | [1] | GEAR-SUN | |
| 5. | 191-4441B | [1] | KIT-SHIM(INCLUDES 3-SHIMS) | |
| | | | (INCLUDES SHIMS) |
| 6. | 191-2287 | [1] | PAD | |
| 7. | 240-9112 | [1] | COVER | |
| 8. | 095-0707M | [4] | BOLT(M16X2X120-MM) | |
| 9. | 8T-4776M | [8] | BOLT-SOCKET HEAD(M8X1.25X100-MM) | |
| 10. | 9S-8004 | [3] | PLUG(9/16-18-THD) | |
| 11. | 8C-3312 | [1] | RING-RETAINING | |
| 12. | 235-3610 | [1] | PLUG-MAGNETIC(PLANETARY) | |
| 13. | 3J-1907 | [4] | SEAL-O-RING | |
| 14. | 240-9924 | [16] | STUD-WHEEL | |
| 15. | 8C-3113 | [1] | RING-RETAINING | |
| 16. | 151-7494 | [16] | SPRING | |
| 19. | 325-4691 | [1] | SEAL GP-DUO-CONE(FINAL DRIVE PLANETARY) | |
| 20. | 2D-6533 | [1] | SEAL-O-RING | |
| 22. | 6V-5203J | [1] | RING-RETAINING | |
| 23. | 8T-1158JM | [4] | BOLT-SOCKET HEAD(M8X1.25X20-MM) | |
| 24. | 6V-5196JM | [2] | BOLT-SOCKET HEAD(M8X1.25X80-MM) | |
| 33. | 243-5389 | [4] | PIN-SPRING | |
| 34. | 243-0716 | [1] | GEAR-RING(69-TEETH) | |
| 35. | 251-9614B | [1] | KIT-SHIM(PARKING BRAKE) | |
| | | | (INCLUDES SHIMS) |
| 36. | 271-9390 | [1] | PLATE-BRAKE | |
| 37. | 136-8067 | [1] | PISTON-BRAKE | |
| 38. | 151-7513 | [300] | NEEDLE | |
| 39. | 176-9289 | [114] | BEARING AS-NEEDLE | |
| 40. | 327-8065 | [4] | BUSHING | |
| 41. | 328-9829J | [1] | PISTON-SHIFT CYLINDER | |
| 42. | 485-0623 | [1] | COUPLING | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 240-5321 | [1] | KIT-BRAKE DISC | |
| | | | (INCLUDES DISKS) |
| | 322-3988 | [1] | KIT-SEAL | |
| | | | (INCLUDES O-RING SEALS & PARBAK RINGS) |
| | 240-5323J | [1] | KIT-PLANETARY GEAR(PISTON HOUSING SHIFTER) | |
| | | | (ALSO INCLUDES RING WHEEL, PISTON HOUSING, END PLATE, BUSHING, SNAP RING, SUPPORT FLANGE, PISTON, WASHER, COUPLING, |
| | | | SUN GEAR, FLANGE & CONNECTION SHAFT) |
| | 240-5324 | [1] | KIT-RETAINING RING(SHIFTER, BEARING) | |
| | | | (INCLUDES INTERNAL & EXTERNAL SNAP RINGS) |
| | 240-5325 | [1] | KIT-SEAL(SHIFTER) | |
| | | | (INCLUDES O-RING SEALS & PARBAK RINGS) |
| | 240-5327 | [1] | KIT-SPRING(SHIFTER) | |
| | | | (INCLUDES SMALL & LARGE SHIFTER SPRINGS) |
| | 240-5331 | [1] | KIT-PLANETARY CARRIER(STAGE 1) | |
| | | | (INCLUDES THRUST WASHERS, GEAR SHAFT, GEARS, CARRIER OUTPUT, DOWEL PINS, BOLTS, NEEDLE BEARINGS & CARRIER INPUT) |
| | 240-5332 | [1] | KIT-PLANETARY CARRIER(STAGE 2) | |
| | | | (INCLDES CARRIER, GEARS, SNAP RINGS, SUN GEAR & NEEDLE BEARINGS) |
| | 268-8205 | [1] | KIT-PLANETARY CARRIER(STAGE 3) | |
| | | | (INCLUDES WASHERS, SHAFT GEARS, END GEARS, CARRIER & NEEDLE BEARINGS) |
| | 240-5326 | [1] | KIT-BEARING(SHIFTER) | |
| | | | (INCLUDES BALL BEARINGS) |
| | 240-5328 | [1] | KIT-SHIM(SHIFTER) | |
| | | | (INCLUDES SHIM KITS) |
| | B | | USE AS REQUIRED |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | M | | METRIC PART |
