卡特零件查询（BG655D） 272-1764: PLATFORM GP-OPERATOR
广数供应链运营团队, 17 02月, 2025，浏览：
631 次

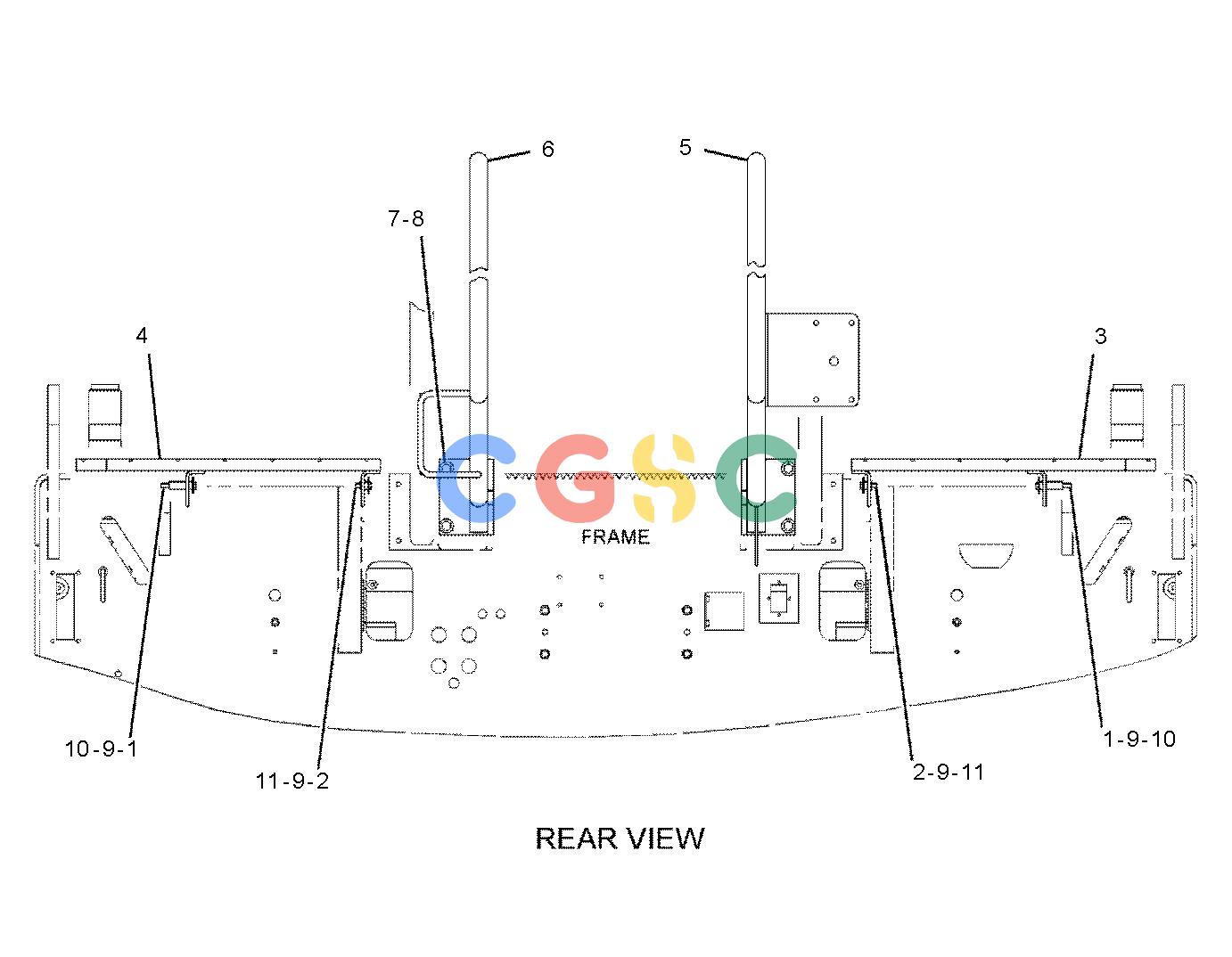

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 039-8869 | [4] | TUBE | |
| 2. | 258-6607 | [4] | SPACER(8.4X14X17-MM THK) | |
| 3. | 272-1765 | [1] | PLATFORM AS(RH) | |
| 4. | 272-1766 | [1] | PLATFORM AS(LH) | |
| 5. | 315-2620 | [1] | HANDRAIL AS(RH)(RH) | |
| 6. | 277-8909 | [1] | HANDRAIL AS(LH) | |
| 7. | 5P-1076 | [4] | WASHER-HARD(13.5X30X4-MM THK) | |
| 8. | 8T-4183M | [4] | BOLT(M12X1.75X40-MM) | |
| 9. | 8T-4222 | [8] | WASHER-PLATED(11X32X2.5-MM THK) | |
| 10. | 8T-6870M | [4] | BOLT(M8X1.25X70-MM) | |
| 11. | 8T-7547M | [4] | BOLT(M8X1.25X30-MM) | |
| | M | | METRIC PART |
