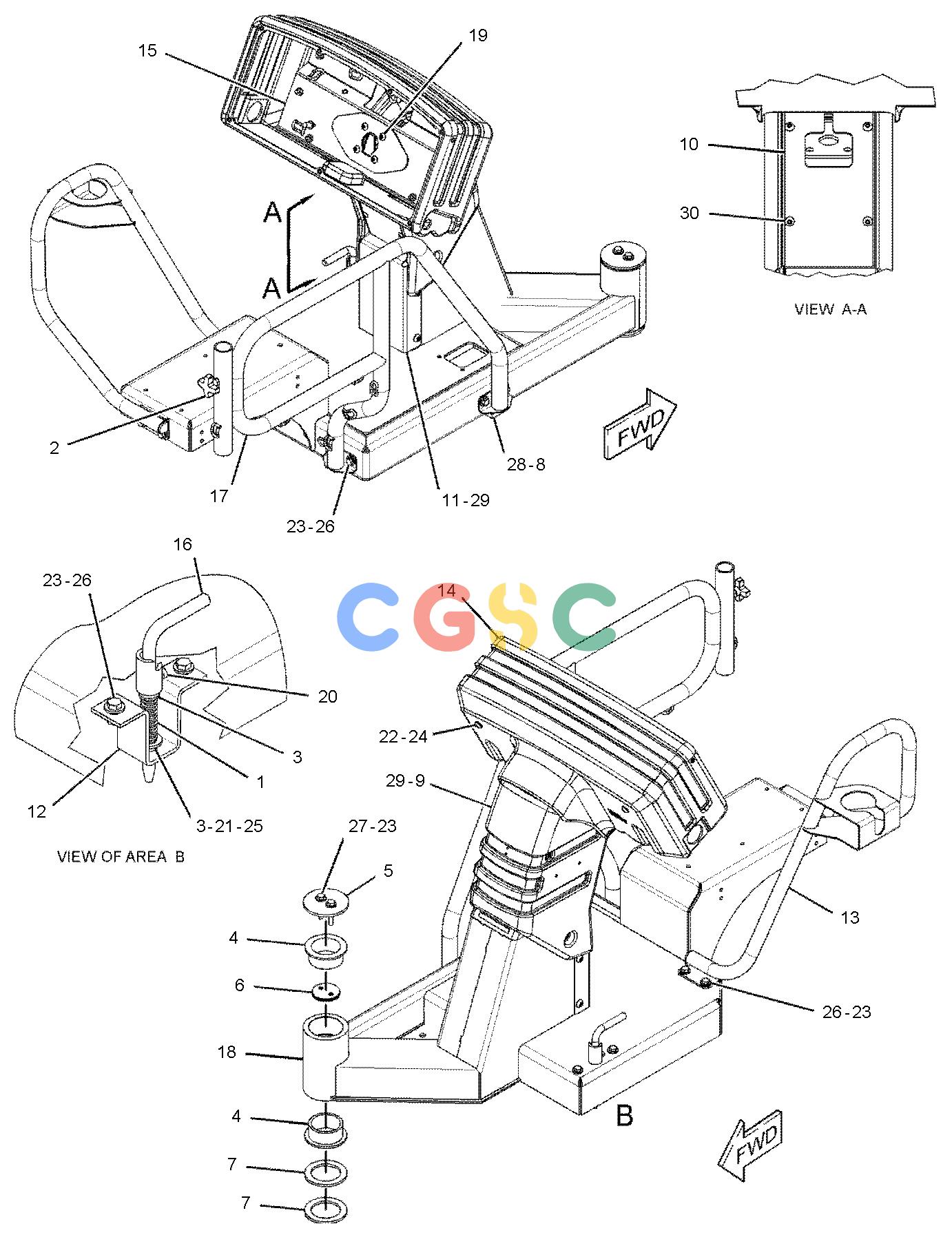

卡特零件查询（BG655D） 332-8950: PLATFORM GP-OPERATOR
广数供应链运营团队, 17 02月, 2025，浏览：
959 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1U-5004 | [1] | SPRING | |
| 2. | 7X-7943 | [1] | KNOB-CLAMP | |
| 3. | 133-7864 | [2] | BUSHING | |
| 4. | 196-6791 | [2] | BEARING-FLANGE | |
| 5. | 196-6792 | [1] | PLATE-COVER | |
| 6. | 196-6793B | [14] | SHIM(1-MM THK) | |
| 7. | 196-6794 | [2] | PLATE-SPACER | |
| 8. | 196-6798 | [1] | PAD | |
| 9. | 213-8130 | [1] | COVER | |
| 10. | 213-9028 | [1] | COVER | |
| 11. | 268-5806 | [1] | PLATE | |
| 12. | 271-1760 | [1] | PLATE AS | |
| 13. | 360-3529 | [1] | HANDRAIL AS(RH) | |
| 14. | 276-8113 | [1] | HOUSING AS | |
| 15. | 276-8114 | [1] | PLATE AS | |
| 16. | 301-2253 | [1] | PIN | |
| 17. | 322-3267 | [1] | HANDRAIL AS(RH) | |
| 18. | 332-8952 | [1] | PLATFORM AS | |
| | 7T-1099 | [6] | LINK | |
| | 130-5300 | [4] | CLIP | |
| | 159-9541M | [10] | NUT-WELD(M10X1.5-THD) | |
| | 178-8505 | [1] | PLATE-WELD | |
| 19. | 127-2170M | [4] | SCREW-TRUSS HEAD(M8X1.25X20-MM) | |
| 20. | 137-3626M | [1] | BOLT-SPECIAL(M6X1X23.25-MM) | |
| 21. | 1H-1200 | [1] | PIN-SPRING | |
| 22. | 5P-4116 | [6] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 23. | 7X-7729 | [12] | WASHER(11X25X3-MM THK) | |
| 24. | 7Y-9099M | [6] | SCREW-TRUSS HEAD(M8X1.25X25-MM) | |
| 25. | 8T-4122 | [1] | WASHER-HARD(17X32X3.5-MM THK) | |
| 26. | 8T-4136M | [10] | BOLT(M10X1.5X25-MM) | |
| 27. | 8T-6466M | [2] | BOLT(M10X1.5X60-MM) | |
| 28. | 8T-4199M | [2] | BOLT(M8X1.25X12-MM) | |
| 29. | 9X-2041M | [8] | SCREW-TRUSS HEAD(M10X1.5X20-MM) | |
| 30. | 9X-2042M | [4] | SCREW-TRUSS HEAD(M6X1X12-MM) | |
| | B | | USE AS REQUIRED |
| | M | | METRIC PART |
