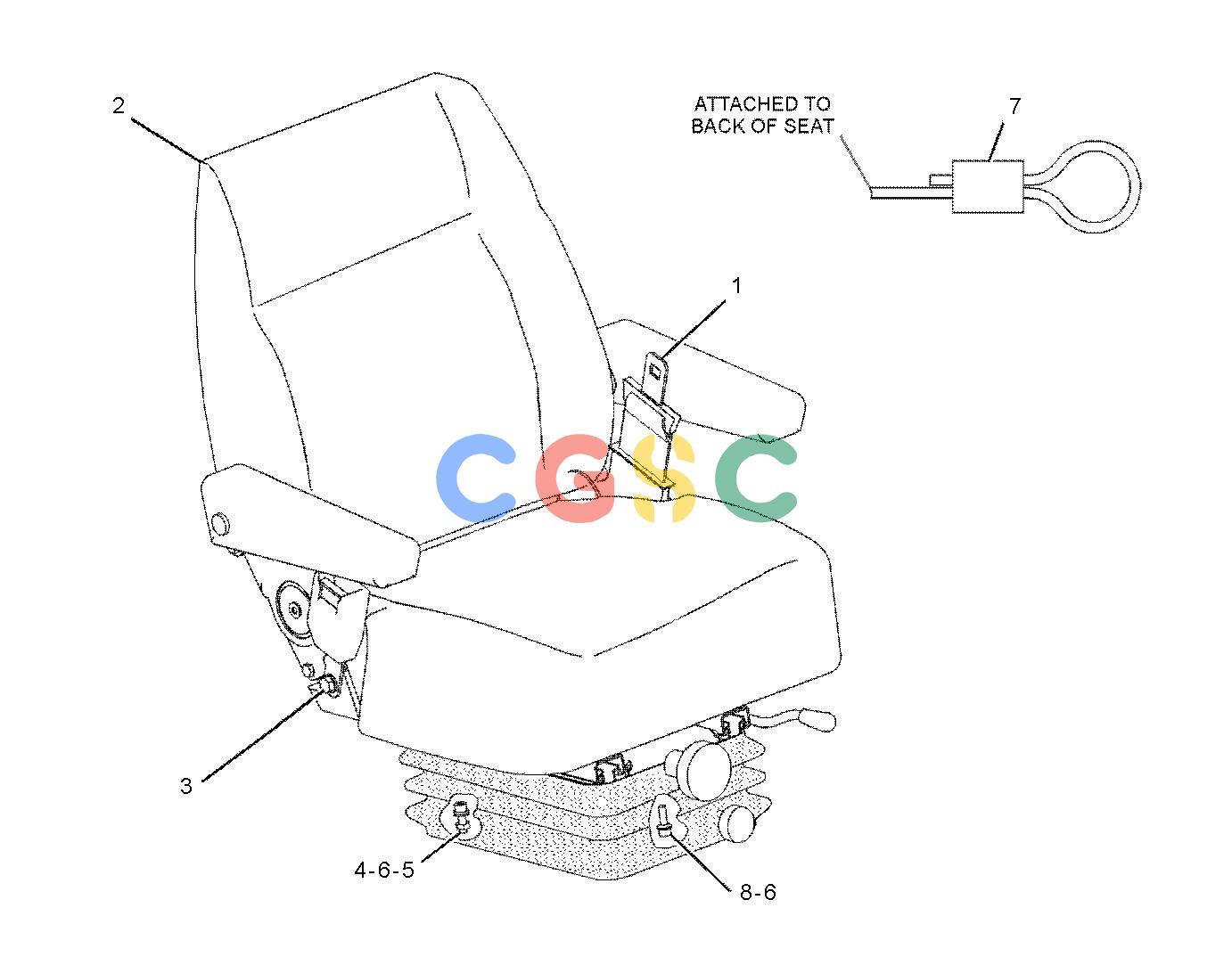

卡特零件查询（BG655D） 199-4298: SEAT GP-SUSPENSION
广数供应链运营团队, 17 02月, 2025，浏览：
243 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 230-6367 | [2] | SEAT BELT GP(RETRACTABLE, 76-MM) | |
| 2. | 235-3151Y | [2] | SEAT GP-SUSPENSION(VINYL) | |
| 3. | 236-5056 | [2] | FASTENER GP-SEAT(VINYL) | |
| 4. | 131-3540M | [4] | LOCKNUT(M8X1.25-THD) | |
| 5. | 209-8296M | [4] | BOLT-SOCKET HEAD(M8X1.25X25-MM) | |
| 6. | 8T-4224 | [12] | WASHER-HARD(8.8X16X2-MM THK) | |
| 7. | 5P-7958 | [1] | SLEEVE-CABLE SPLICE | |
| 8. | 8T-4189M | [4] | BOLT(M8X1.25X20-MM) | |
| | | | QUANTITIES SHOWN ARE THOSE REQUIRED FOR BOTH LH & RH SIDES |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
