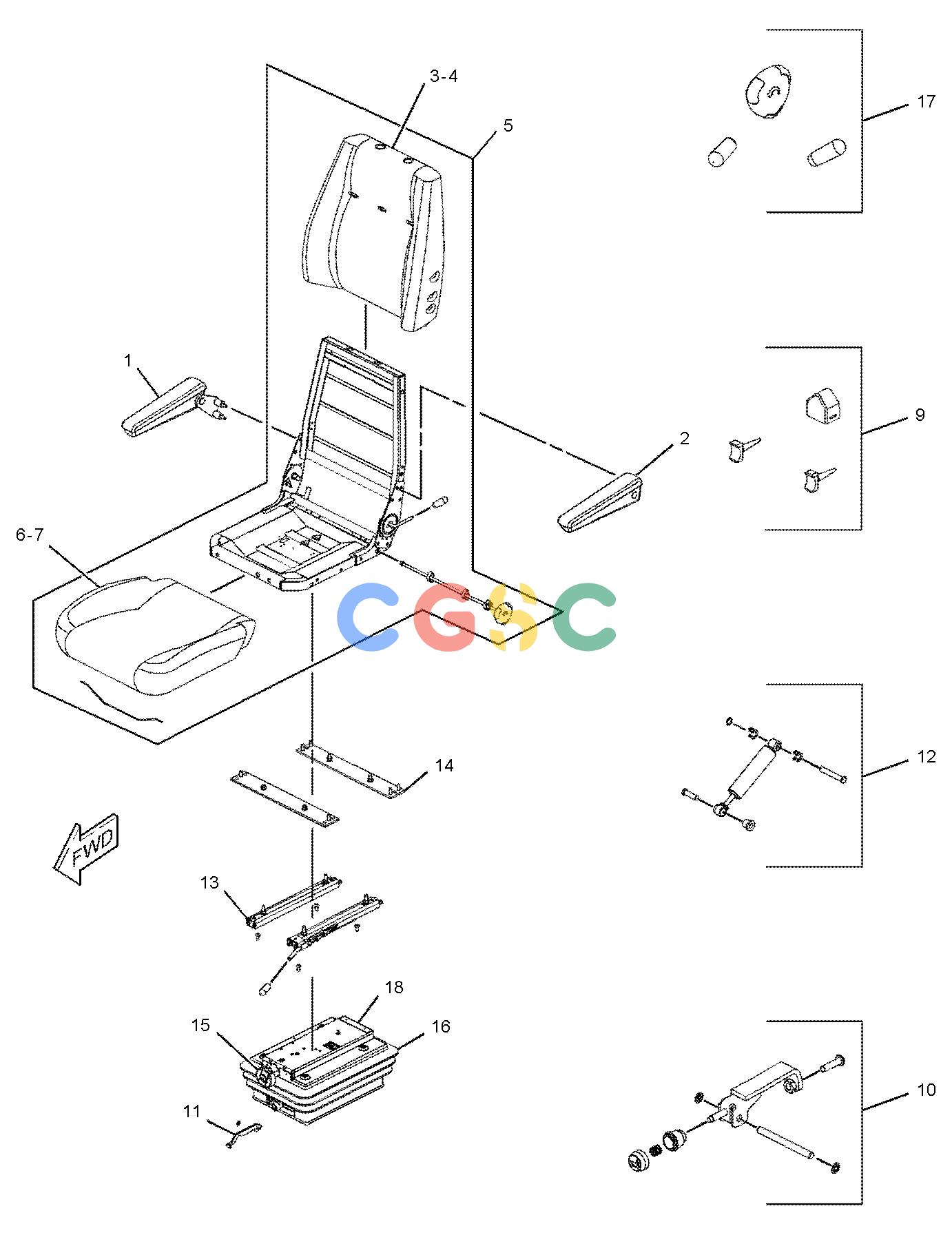

卡特零件查询（BG655D） 235-3151: SEAT GP-SUSPENSION
广数供应链运营团队, 17 02月, 2025，浏览：
508 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 233-7538 | [1] | ARMREST(RH) | |
| 2. | 233-7537 | [1] | ARMREST(LH) | |
| 3. | 233-7530J | [1] | COVER-SEAT(BACK, VINYL) | |
| 4. | 190-9732J | [1] | KIT-FOAM BACK(SUSPENSION SEAT) | |
| 5. | 247-6479J | [1] | KIT-SEAT(SUSPENSION) | |
| | | | (INCLUDES SCREWS, WASHERS & UPPER AS) |
| 6. | 233-7532J | [1] | COVER-SEAT(BOTTOM, VINYL) | |
| 7. | 233-7533J | [1] | FOAM-SEAT(BOTTOM) | |
| 9. | 202-4739 | [1] | KIT-STOP(SUSPENSION SEAT) | |
| | | | (INCLUDES UPSTOPS & BUMPSTOP) |
| 10. | 217-5821 | [1] | ADJUSTER GP-HEIGHT(SUSPENSION SEAT) | |
| 11. | 202-4737 | [1] | KIT-SEAT(INDICATORS) | |
| | | | (INCLUDES WASHER & INDICATOR) |
| 12. | 202-4736 | [1] | KIT-DAMPER | |
| | | | (INCLUDES DAMPERS, PINS, CLIPS, WASHERS, PUSHNUT & SPACER) |
| 13. | 233-7535 | [1] | KIT-RAIL(SUSPENSION SEAT) | |
| | | | (INCLUDES RAILS) |
| 14. | 233-7536 | [1] | KIT-STRAP(SUSPENSION SEAT) | |
| | | | (INCLUDES FRONT STRAP & REAR STRAP) |
| 15. | 202-4740 | [1] | KIT-ADJUSTER | |
| | | | (INCLUDES SPACER, PINS, WEIGHT ADJUSTER KNOB, SPRINGS, ADJUSTER SHAFT, SPACERS, ANCHORS, |
| | | | NEEDLE BEARINGS & WASHER BEARING) |
| 16. | 232-4226 | [1] | KIT-BOOT(SUSPENSION SEAT) | |
| 17. | 233-7534 | [1] | KIT-KNOB | |
| | | | (INCLUDES KNOBS) |
| 18. | 232-4230 | [1] | KIT-SEAT SUSPENSION | |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
