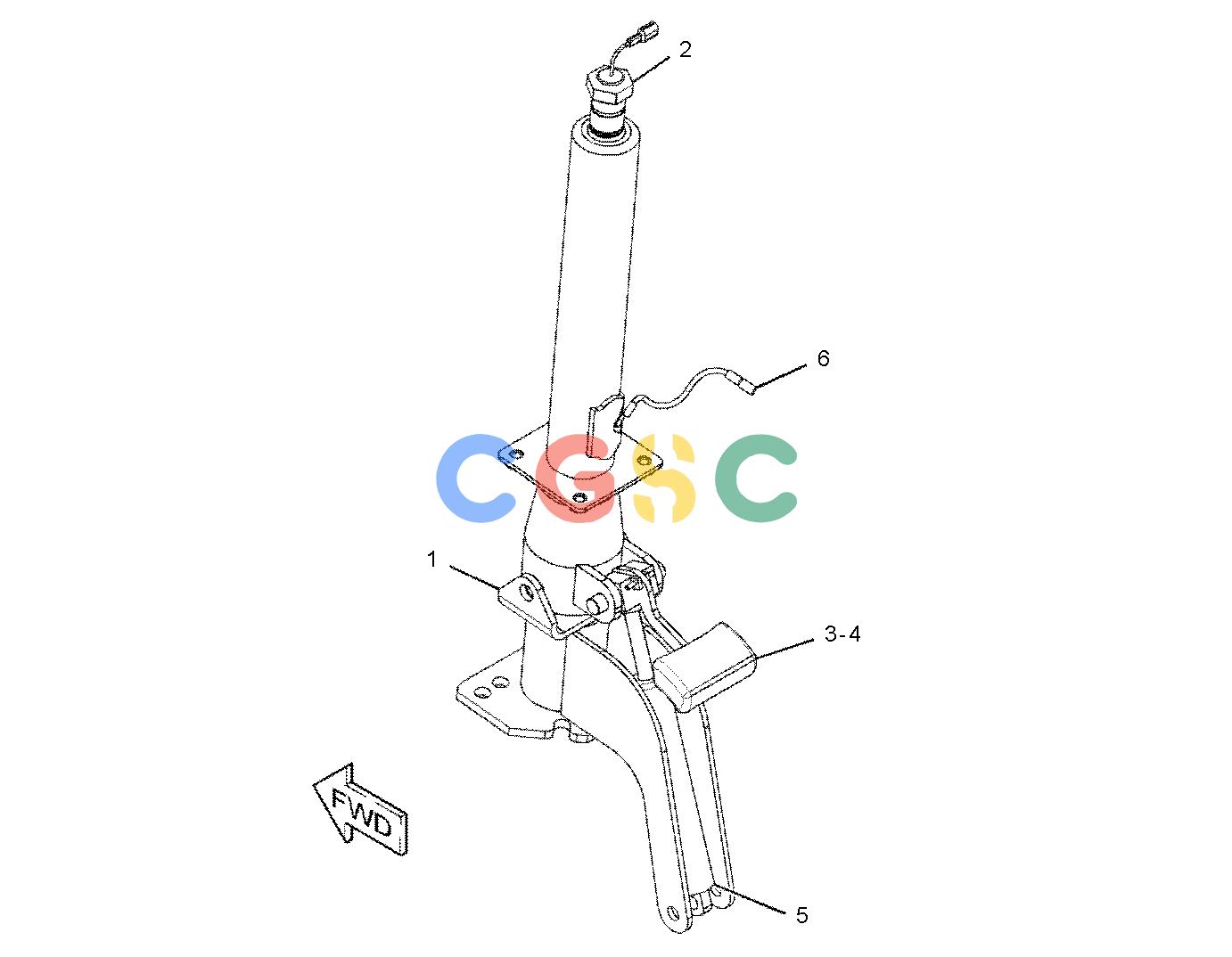

卡特零件查询（BG655D） 261-7691: STEERING COLUMN GP
广数供应链运营团队, 17 02月, 2025，浏览：
318 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 321-6951 | [1] | KIT-PIVOT(STEERING COLUMN TILT) | |
| | | | (INCLUDES PIVOT BUSHINGS & PIVOT PINS) |
| 2. | 169-3261M | [1] | NUT(M18X1.5-THD) | |
| 3. | 149-0777 | [1] | KNOB(STEERING COLUMN TILT) | |
| 4. | 217-4155 | [1] | KIT-TILT LEVER(STEERING COLUMN) | |
| | | | (INCLUDES BOLTS, DOWEL, ROLL PIN, SPRING & TILT LEVER) |
| 5. | 319-9513 | [1] | SPRING AS-GAS(STEERING COLUMN TILT) | |
| 6. | 332-6886 | [1] | KIT-CONTACT(STEERING COLUMN) | |
| | | | (INCLUDES SCREWS & HORN CONTACT AS) |
| | M | | METRIC PART |
