卡特零件查询（10） 110-1524: SLOPER GP-STRIKE-OFF
广数供应链运营团队, 17 02月, 2025，浏览：
390 次

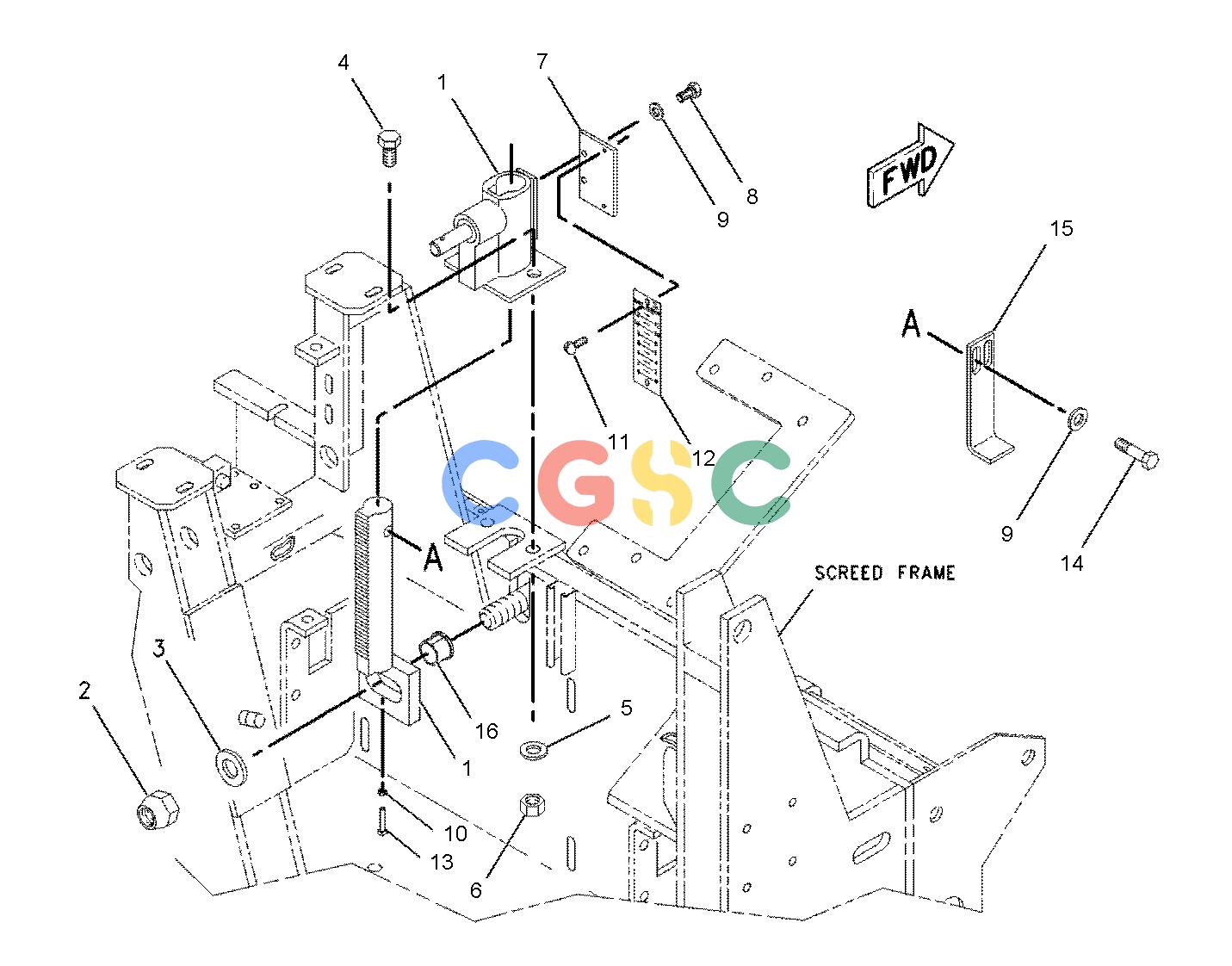

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | | [1] | JACK GP-HEIGHT ADJUSTER |
| | | [1] | JACK GP-HEIGHT ADJUSTER |
| 2. | 6K-3632 | [2] | LOCKNUT(1-8-THD) | |
| 3. | 8T-5361 | [2] | WASHER-HARD(28X49X5-MM THK) | |
| 4. | 8T-4835 | [4] | BOLT(1/2-13X2-IN) | |
| 5. | 8T-4223 | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 6. | 6V-8188 | [4] | NUT(1/2-13-THD) | |
| 7. | 115-4506 | [2] | PLATE | |
| 8. | 5P-8167 | [4] | BOLT(3/8-16X0.625-IN) | |
| 9. | 8T-4896C | [6] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 10. | 1B-2578 | [2] | NUT(3/8-16-THD) | |
| 11. | 5D-8412 | [4] | SCREW-ROUND HEAD(8-32X0.5-IN) | |
| 12. | 116-6984 | [2] | SCALE | |
| 13. | 2H-3881 | [2] | SETSCREW-SQUARE HEAD | |
| 14. | 8T-8915C | [2] | BOLT(3/8-16X3.25-IN) | |
| 15. | 116-6986 | [2] | POINTER | |
| 16. | | [2] | BUSHING |
| | | | QUANTITIES SHOWN ARE THOSE REQUIRED FOR BOTH LH & RH SIDES |
| | C | | CHANGE FROM PREVIOUS TYPE |
