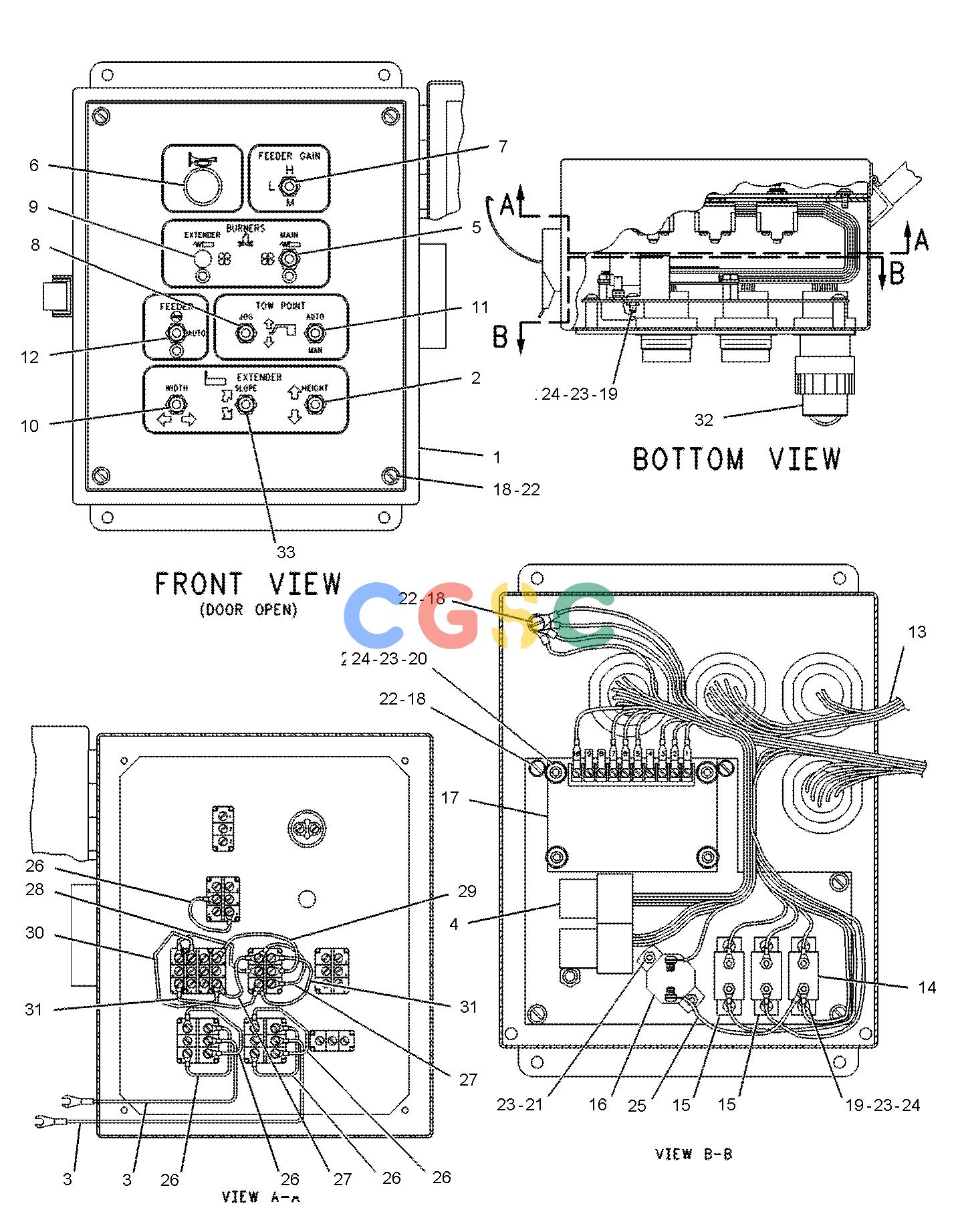

卡特零件查询（10） 129-5097: BOX GP-SCREED CONTROL
广数供应链运营团队, 17 02月, 2025，浏览：
682 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | | [1] | BOX(LH) |
| 2. | 7N-8008 | [1] | SWITCH AS-TOGGLE(EXTENDER HEIGHT) | |
| | 3L-8187 | [6] | LOCKWASHER | |
| | 6T-3631 | [2] | NUT-HEX(15/32-32-THD) | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3633 | [1] | RING-LOCKING | |
| | 6V-8374 | [6] | SCREW-MACHINE(6-32X0.25-IN) | |
| 3. | 106-0525 | [2] | WIRE AS | |
| 4. | 3E-9362 | [2] | RELAY AS(12-VOLT) | |
| 5. | 077-8201 | [1] | SWITCH(BURNERS MAIN GLOW) | |
| 6. | 3D-9718 | [1] | SWITCH AS-PUSH BUTTON | |
| | 6V-8376 | [2] | SCREW-MACHINE(8-32X0.25-IN) | |
| | 6V-8832 | [1] | NUT(5/8-32-THD) | |
| | 9B-7233 | [2] | LOCKWASHER | |
| 7. | 1V-6652 | [1] | SWITCH AS-TOGGLE(FEEDER GAIN L/M/H) | |
| | 3L-8187 | [3] | LOCKWASHER | |
| | 6T-3631 | [2] | NUT-HEX(15/32-32-THD) | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3633 | [1] | RING-LOCKING | |
| | 6V-8374 | [3] | SCREW-MACHINE(6-32X0.25-IN) | |
| 8. | 7N-8008 | [1] | SWITCH AS-TOGGLE(TOW POINT JOG) | |
| | 3L-8187 | [6] | LOCKWASHER | |
| | 6T-3631 | [2] | NUT-HEX(15/32-32-THD) | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3633 | [1] | RING-LOCKING | |
| | 6V-8374 | [6] | SCREW-MACHINE(6-32X0.25-IN) | |
| 9. | 3V-4694 | [1] | PLUG-BUTTON | |
| 10. | 9G-0011 | [1] | SWITCH AS-TOGGLE(EXTENDER WIDTH) | |
| | 3L-8187 | [3] | LOCKWASHER | |
| | 6T-3631 | [2] | NUT-HEX(15/32-32-THD) | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3633 | [1] | RING-LOCKING | |
| | 6V-8374 | [3] | SCREW-MACHINE(6-32X0.25-IN) | |
| | 9X-8486 | [2] | SCREW-MACHINE(8-32X0.75-IN) | |
| 11. | 8C-0378 | [1] | SWITCH-TOGGLE(TOW POINT AUTO/MANUAL) | |
| 12. | 081-7041 | [1] | SWITCH AS-TOGGLE(FEEDER AUTO/MANUAL) | |
| 13. | 119-3266 | [1] | HARNESS AS | |
| 14. | 8T-5564 | [1] | CIRCUIT BREAKER AS(40-AMPERE) | |
| 15. | 8T-7439 | [2] | CIRCUIT BREAKER AS(10-AMPERE) | |
| 16. | 3T-2662 | [1] | CIRCUIT BREAKER AS(15-AMPERE, AUTOMATIC RESET) | |
| | 6V-8376 | [2] | SCREW-MACHINE(8-32X0.25-IN) | |
| | 9B-7233 | [2] | LOCKWASHER | |
| 17. | 104-3659 | [1] | BOARD-CONTROL | |
| 18. | 5P-7162 | [10] | SCREW-MACHINE(10-32X0.5-IN) | |
| 19. | 7S-1197 | [8] | SCREW-MACHINE(8-32X0.5-IN) | |
| 20. | 7S-1198 | [4] | SCREW-MACHINE(8-32X1.5-IN) | |
| 21. | 9X-8486 | [2] | SCREW-MACHINE(8-32X0.75-IN) | |
| 22. | 4B-4274 | [10] | WASHER(5.5X13X1.2-MM THK) | |
| 23. | 4B-4863 | [14] | WASHER(4.7X11X1.2-MM THK) | |
| 24. | 6D-5801 | [12] | LOCKNUT(8-32-THD) | |
| 25. | 106-3299 | [1] | WIRE AS | |
| 26. | 105-8035 | [5] | WIRE AS | |
| 27. | 120-4541 | [2] | WIRE AS | |
| 28. | 106-2304 | [1] | WIRE AS | |
| 29. | 106-2305 | [1] | WIRE AS | |
| 30. | 120-4542 | [1] | WIRE AS | |
| 31. | 120-4540 | [2] | WIRE AS | |
| 32. | 119-3345 | [1] | HARNESS AS | |
| 33. | 7N-8008 | [1] | SWITCH AS-TOGGLE(EXTENDER SLOPE) | |
| | 3L-8187 | [6] | LOCKWASHER | |
| | 6T-3631 | [2] | NUT-HEX(15/32-32-THD) | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3633 | [1] | RING-LOCKING | |
| | 6T-8374 | [6] | SHAFT AS | |
