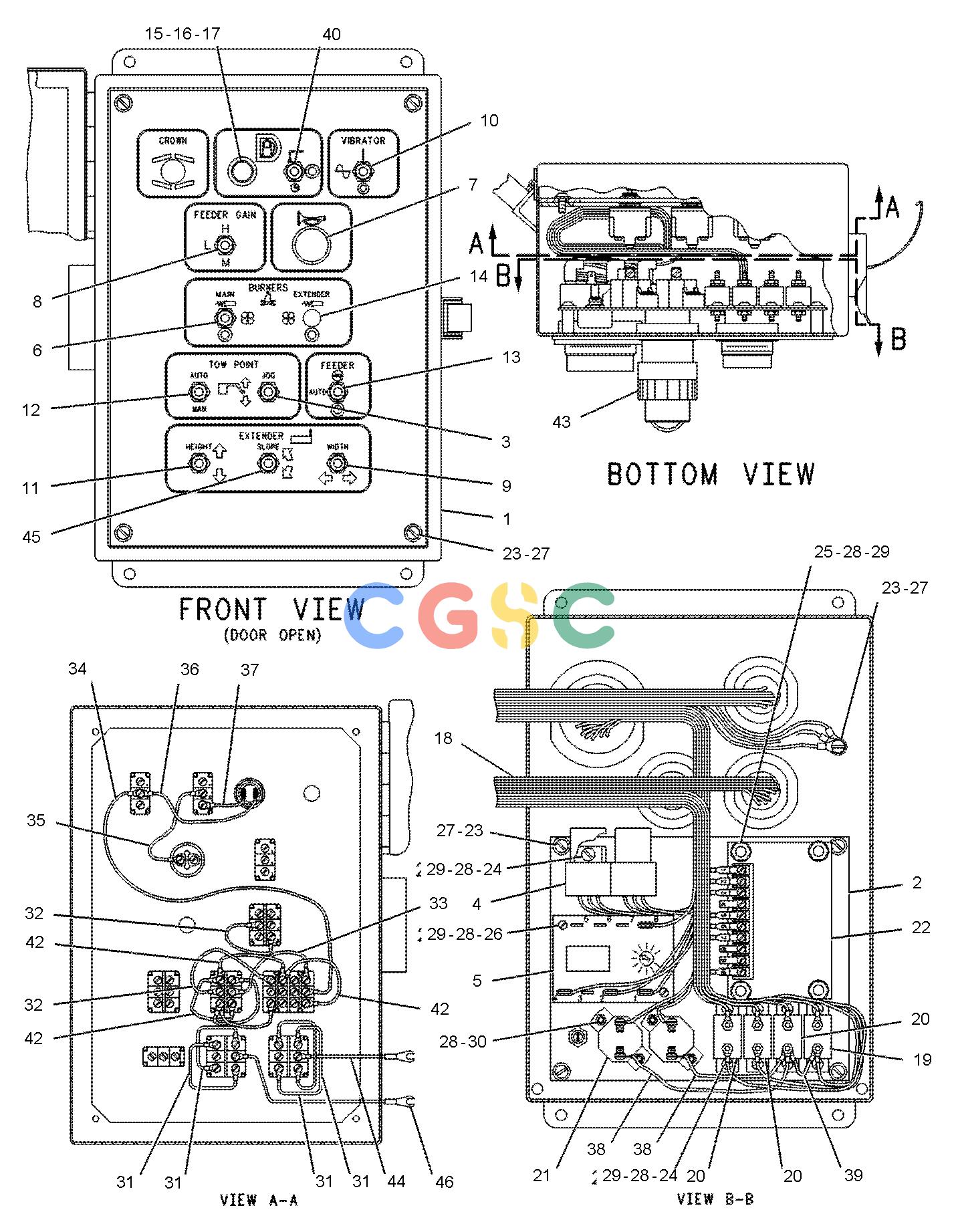

| 1. | | [1] | BOX |
| 2. | 103-4713 | [1] | PLATE | |
| 3. | 7N-8008 | [1] | SWITCH AS-TOGGLE(TOW POINT JOG) | |
| | 3L-8187 | [6] | LOCKWASHER | |
| | 6T-3631 | [2] | NUT-HEX(15/32-32-THD) | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3633 | [1] | RING-LOCKING | |
| | 6V-8374 | [6] | SCREW-MACHINE(6-32X0.25-IN) | |
| 4. | 3E-9362 | [2] | RELAY AS(12-VOLT) | |
| 5. | 120-0549 | [1] | RELAY-TIME DELAY | |
| 6. | 077-8201 | [1] | SWITCH(BURNERS MAIN GLOW) | |
| 7. | 3D-9718 | [1] | SWITCH AS-PUSH BUTTON | |
| | 6V-8376 | [2] | SCREW-MACHINE(8-32X0.25-IN) | |
| | 6V-8832 | [1] | NUT(5/8-32-THD) | |
| | 9B-7233 | [2] | LOCKWASHER | |
| 8. | 1V-6652 | [1] | SWITCH AS-TOGGLE(FEEDER GAIN L/M/H) | |
| | 3L-8187 | [3] | LOCKWASHER | |
| | 6T-3631 | [2] | NUT-HEX(15/32-32-THD) | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3633 | [1] | RING-LOCKING | |
| | 6V-8374 | [3] | SCREW-MACHINE(6-32X0.25-IN) | |
| 9. | 9G-0011 | [1] | SWITCH AS-TOGGLE(EXTENDER WIDTH) | |
| | 3L-8187 | [3] | LOCKWASHER | |
| | 6T-3631 | [2] | NUT-HEX(15/32-32-THD) | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3633 | [1] | RING-LOCKING | |
| | 6V-8374 | [3] | SCREW-MACHINE(6-32X0.25-IN) | |
| 10. | 8D-2676 | [1] | SWITCH AS-TOGGLE(SINGLE POLE)(VIBRATOR ON/OFF) | |
| | 3L-8187 | [2] | LOCKWASHER | |
| | 6T-3631 | [2] | NUT-HEX(15/32-32-THD) | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3633 | [1] | RING-LOCKING | |
| | 6V-8374 | [2] | SCREW-MACHINE(6-32X0.25-IN) | |
| 11. | 7N-8008 | [1] | SWITCH AS-TOGGLE(EXTENDER HEIGHT) | |
| | 3L-8187 | [6] | LOCKWASHER | |
| | 6T-3631 | [2] | NUT-HEX(15/32-32-THD) | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3633 | [1] | RING-LOCKING | |
| | 6V-8374 | [6] | SCREW-MACHINE(6-32X0.25-IN) | |
| 12. | 8C-0378 | [1] | SWITCH-TOGGLE(TOW POINT AUTO/MANUAL) | |
| 13. | 081-7041 | [1] | SWITCH AS-TOGGLE(FEEDER AUTO/MANUAL) | |
| 14. | 3V-4694 | [2] | PLUG-BUTTON | |
| 15. | 9D-3127 | [1] | BASE AS-INDICATOR LIGHT | |
| | 6V-8367M | [1] | LOCKWASHER(17.88X29.62X1.17-MM THK) | |
| | 6V-8382 | [1] | NUT-HEX(11/16-27-THD) | |
| 16. | 9D-2868 | [1] | LENS-RED | |
| 17. | 8L-9801 | [1] | LAMP(12-VOLT) | |
| 18. | 120-8470 | [1] | HARNESS AS | |
| 19. | 8T-5564 | [1] | CIRCUIT BREAKER AS(40-AMPERE) | |
| 20. | 8T-7439 | [3] | CIRCUIT BREAKER AS(10-AMPERE) | |
| 21. | 3T-2662 | [2] | CIRCUIT BREAKER AS(15-AMPERE, AUTOMATIC RESET) | |
| | 6V-8376 | [2] | SCREW-MACHINE(8-32X0.25-IN) | |
| | 9B-7233 | [2] | LOCKWASHER | |
| 22. | 104-3659 | [1] | BOARD-CONTROL | |
| 23. | 5P-7162 | [9] | SCREW-MACHINE(10-32X0.5-IN) | |
| 24. | 7S-1197 | [10] | SCREW-MACHINE(8-32X0.5-IN) | |
| 25. | 7S-1198 | [4] | SCREW-MACHINE(8-32X1.5-IN) | |
| 26. | 6V-7697 | [2] | SCREW-MACHINE(8-32X1.25-IN) | |
| 27. | 4B-4274 | [9] | WASHER(5.5X13X1.2-MM THK) | |
| 28. | 4B-4863 | [20] | WASHER(4.7X11X1.2-MM THK) | |
| 29. | 6D-5801 | [16] | LOCKNUT(8-32-THD) | |
| 30. | 9X-8486 | [4] | SCREW-MACHINE(8-32X0.75-IN) | |
| 31. | 105-8035 | [5] | WIRE AS | |
| 32. | 106-2306 | [1] | WIRE AS | |
| 33. | 106-2307 | [1] | WIRE AS | |
| 34. | 106-2308 | [1] | WIRE AS | |
| 35. | 106-2309 | [1] | WIRE AS | |
| 36. | 106-2310 | [1] | WIRE AS | |
| 37. | 106-2311 | [1] | WIRE AS | |
| 38. | 121-6178 | [2] | WIRE AS | |
| 39. | 106-3300 | [1] | WIRE AS | |
| 40. | 1V-6652 | [1] | SWITCH AS-TOGGLE(SPRAYDOWN PUMP ON/OFF) | |
| | 3L-8187 | [3] | LOCKWASHER | |
| | 6T-3631 | [2] | NUT-HEX(15/32-32-THD) | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3633 | [1] | RING-LOCKING | |
| | 6V-8374 | [3] | SCREW-MACHINE(6-32X0.25-IN) | |
| 41. | 120-4272 | [2] | WIRE AS | |
| 42. | 120-4273 | [3] | WIRE AS | |
| 43. | 119-3345 | [1] | HARNESS AS | |
| 44. | 106-3301 | [1] | WIRE AS | |
| 45. | 7N-8008 | [1] | SWITCH AS-TOGGLE(EXTENDER SLOPE) | |
| | 3L-8187 | [6] | LOCKWASHER | |
| | 6T-3631 | [2] | NUT-HEX(15/32-32-THD) | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3633 | [1] | RING-LOCKING | |
| | 6V-8374 | [6] | SCREW-MACHINE(6-32X0.25-IN) | |
| 46. | 106-0525 | [1] | WIRE AS | |
| | M | | METRIC PART |
