卡特零件查询（10B） 176-0969: BOX GP-JUNCTION
广数供应链运营团队, 17 02月, 2025，浏览：
140 次

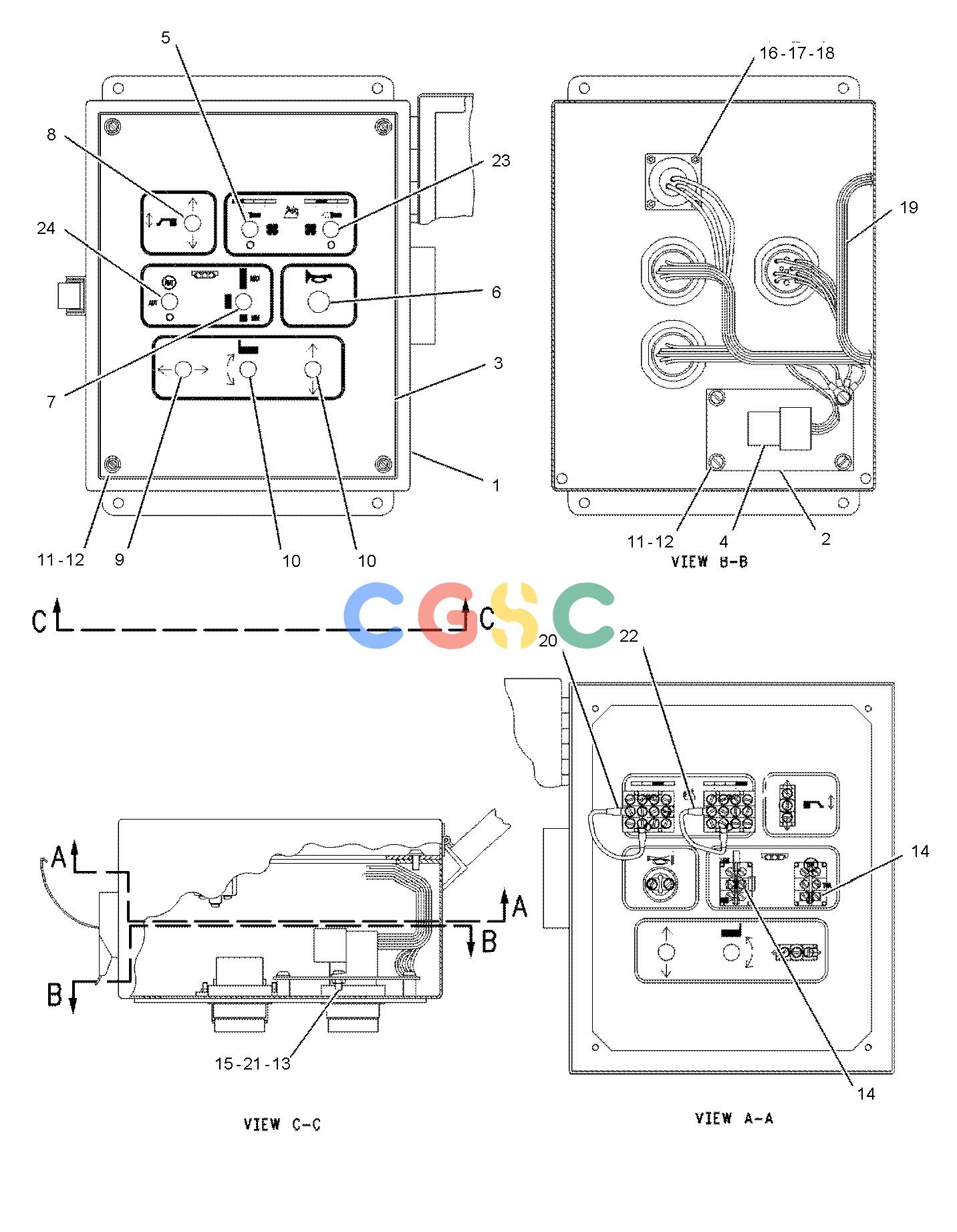

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 107-4019 | [1] | BOX(LH) | |
| 2. | 109-8136 | [1] | PLATE | |
| 3. | 174-9781 | [1] | PLATE(LH) | |
| 4. | 3E-6477 | [1] | RELAY AS(24-VOLT) | |
| 5. | 2W-6832 | [1] | SWITCH AS(LH EXTENDER BURNER CONTROL) | |
| 6. | 3D-9718 | [1] | SWITCH AS-PUSH BUTTON(HORN) | |
| | 6V-8376 | [2] | SCREW-MACHINE(8-32X0.25-IN) | |
| | 6V-8832 | [1] | NUT(5/8-32-THD) | |
| | 9B-7233 | [2] | LOCKWASHER | |
| 7. | 7T-3946 | [1] | SWITCH GP-TOGGLE(LH FEEDER SPEED CONTROL) | |
| | 3L-8187 | [6] | LOCKWASHER | |
| | 6T-3631 | [2] | NUT-HEX(15/32-32-THD) | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3633 | [1] | RING-LOCKING | |
| | 6V-8374 | [6] | SCREW-MACHINE(6-32X0.25-IN) | |
| 8. | 9G-0011 | [1] | SWITCH AS-TOGGLE(LH TOWPOINT) | |
| 9. | 9G-0011 | [1] | SWITCH AS-TOGGLE(LH EXTENDER WIDTH CONTROL) | |
| | | | (EACH INCLUDES) |
| | 3L-8187 | [3] | LOCKWASHER | |
| | 6T-3631 | [2] | NUT-HEX(15/32-32-THD) | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3633 | [1] | RING-LOCKING | |
| | 6V-8374 | [3] | SCREW-MACHINE(6-32X0.25-IN) | |
| 10. | 3V-4694 | [2] | PLUG-BUTTON | |
| 11. | 5P-7162 | [8] | SCREW-MACHINE(10-32X0.5-IN) | |
| 12. | 4B-4274 | [8] | WASHER(5.5X13X1.2-MM THK) | |
| 13. | 6D-5801 | [1] | LOCKNUT(8-32-THD) | |
| 14. | 9N-9800 | [2] | JUMPER-TERMINAL | |
| 15. | 7S-1197 | [1] | SCREW-MACHINE(8-32X0.5-IN) | |
| 16. | 9X-6257 | [4] | SCREW-MACHINE(6-32X0.625-IN) | |
| 17. | 4B-5324 | [4] | WASHER(3.9X9.6X1.2-MM THK) | |
| 18. | 7D-6922 | [4] | LOCKNUT(6-32-THD) | |
| 19. | 176-2982 | [1] | HARNESS AS | |
| | 3T-0204 | [1] | RECEPTACLE AS-CONNECTOR(20-PIN) | |
| | 7G-7917 | [7] | PLUG-SEAL | |
| | 7G-7918 | [1] | PLUG-SEAL | |
| | 7G-7920 | [1] | PLUG-SEAL | |
| | 7G-8237 | [1] | RECEPTACLE AS | |
| | 8N-1530 | [1] | RECEPTACLE AS(12-PIN) | |
| | 8N-1537 | [3] | LOCKWASHER | |
| | 111-6795 | [1] | HOUSING-RELAY | |
| | 111-6816 | [1] | LOCK | |
| | 135-3477 | [1] | RECEPTACLE AS-CONNECTOR(3-PIN) | |
| 20. | 115-1461 | [1] | WIRE AS | |
| 21. | 4B-4863 | [1] | WASHER(4.7X11X1.2-MM THK) | |
| 22. | 115-1464 | [1] | WIRE AS | |
| 23. | 2W-6832 | [1] | SWITCH AS(LH MAIN BURNER CONTROL) | |
| 24. | 081-7041 | [1] | SWITCH AS-TOGGLE(LH FEEDER AUTO/MANUAL CONTROL) | |
