卡特零件查询（10B） 176-0970: BOX GP-JUNCTION
广数供应链运营团队, 17 02月, 2025，浏览：
280 次

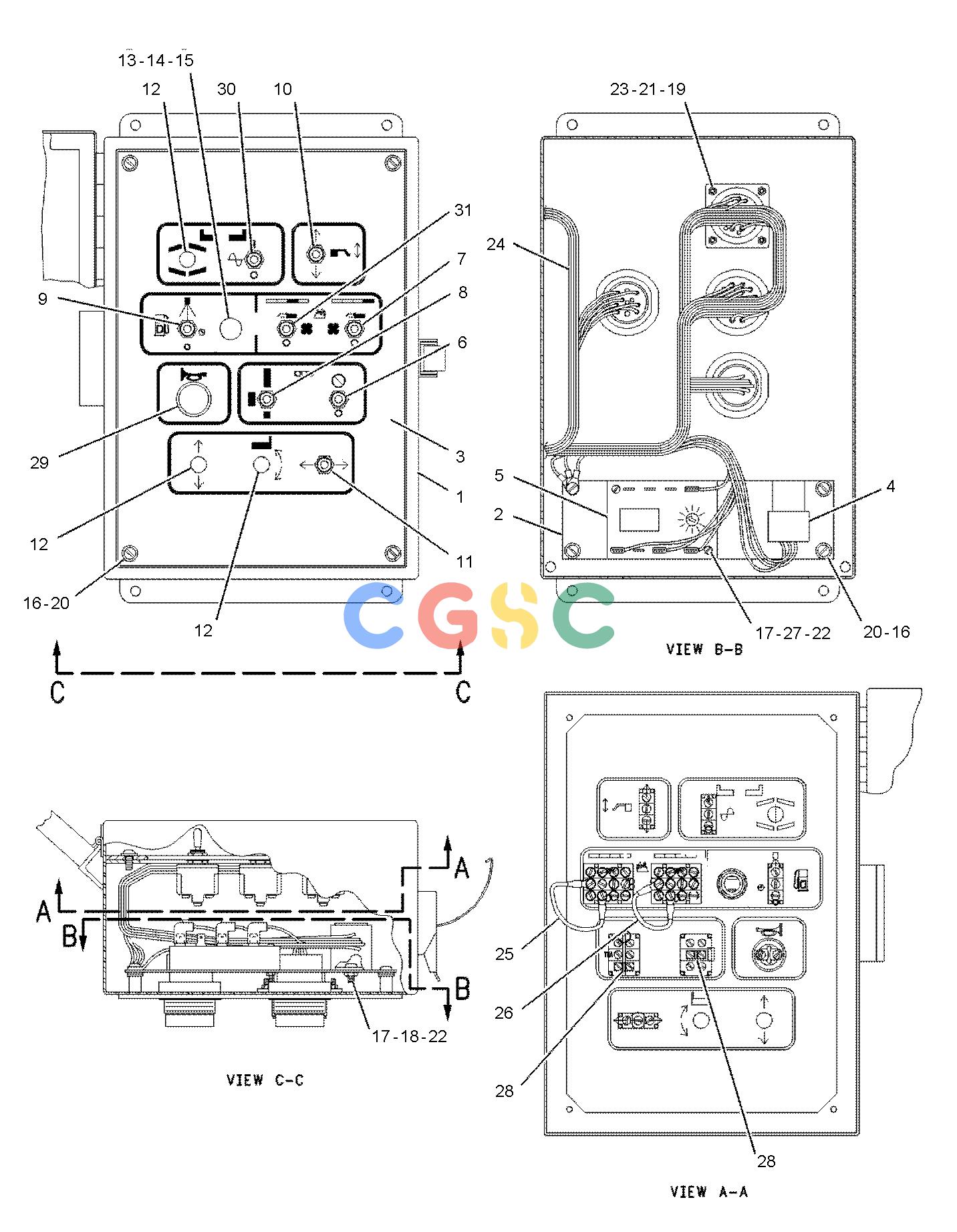

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 107-4020 | [1] | BOX | |
| 2. | 104-4714 | [1] | PLATE | |
| 3. | 174-9780 | [1] | PLATE(RH) | |
| 4. | 3E-6477 | [1] | RELAY AS(24-VOLT) | |
| 5. | 112-7483 | [1] | RELAY-TIME DELAY | |
| 6. | 081-7041 | [1] | SWITCH AS-TOGGLE(FEEDER AUTO/MANUAL CONTROL) | |
| 7. | 2W-6832 | [1] | SWITCH AS(RH EXTENDER BURNER) | |
| 8. | 7T-3946 | [1] | SWITCH GP-TOGGLE(RH FEEDER SPEED CONTROL) | |
| | | | (EACH INCLUDES) |
| | 3L-8187 | [3] | LOCKWASHER | |
| | 6T-3631 | [2] | NUT-HEX(15/32-32-THD) | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3633 | [1] | RING-LOCKING | |
| | 6V-8374 | [3] | SCREW-MACHINE(6-32X0.25-IN) | |
| 9. | 1V-6652 | [1] | SWITCH AS-TOGGLE(SCREED FUEL PUMP) | |
| | 3L-8187 | [6] | LOCKWASHER | |
| | 6T-3631 | [2] | NUT-HEX(15/32-32-THD) | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3633 | [1] | RING-LOCKING | |
| | 6V-8374 | [6] | SCREW-MACHINE(6-32X0.25-IN) | |
| 10. | 9G-0011 | [1] | SWITCH AS-TOGGLE(RH TOWPOINT) | |
| 11. | 9G-0011 | [1] | SWITCH AS-TOGGLE(RH EXTENDER WIDTH CONTROL) | |
| | | | (EACH INCLUDES) |
| | 3L-8187 | [3] | LOCKWASHER | |
| | 6T-3631 | [2] | NUT-HEX(15/32-32-THD) | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3633 | [1] | RING-LOCKING | |
| | 6V-8374 | [3] | SCREW-MACHINE(6-32X0.25-IN) | |
| 12. | 3V-4694 | [3] | PLUG-BUTTON | |
| 13. | 9D-3127 | [1] | BASE AS-INDICATOR LIGHT | |
| | 6V-8367M | [1] | LOCKWASHER(17.88X29.62X1.17-MM THK) | |
| | 6V-8382 | [1] | NUT-HEX(11/16-27-THD) | |
| 14. | 9D-2868 | [1] | LENS-RED | |
| 15. | 7N-5876 | [1] | LAMP(24-VOLT, 0.2-AMPERE) | |
| 16. | 5P-7162 | [8] | SCREW-MACHINE(10-32X0.5-IN) | |
| 17. | 4B-4863 | [3] | WASHER(4.7X11X1.2-MM THK) | |
| 18. | 7S-1197 | [1] | SCREW-MACHINE(8-32X0.5-IN) | |
| 19. | 9X-6257 | [4] | SCREW-MACHINE(6-32X0.625-IN) | |
| 20. | 4B-4274 | [8] | WASHER(5.5X13X1.2-MM THK) | |
| 21. | 4B-5324 | [4] | WASHER(3.9X9.6X1.2-MM THK) | |
| 22. | 6D-5801 | [3] | LOCKNUT(8-32-THD) | |
| 23. | 7D-6922 | [4] | LOCKNUT(6-32-THD) | |
| 24. | 176-2987 | [1] | HARNESS AS | |
| 25. | 115-1466 | [1] | WIRE AS | |
| 26. | 115-1470 | [1] | WIRE AS | |
| 27. | 6V-7697 | [2] | SCREW-MACHINE(8-32X1.25-IN) | |
| 28. | 9N-9800 | [2] | JUMPER-TERMINAL | |
| 29. | 3D-9718 | [1] | SWITCH AS-PUSH BUTTON(HORN) | |
| | 6V-8376 | [2] | SCREW-MACHINE(8-32X0.25-IN) | |
| | 6V-8832 | [1] | NUT(5/8-32-THD) | |
| | 9B-7233 | [2] | LOCKWASHER | |
| 30. | 4D-1836 | [1] | SWITCH-TOGGLE(VIBRATOR) | |
| 31. | 2W-6832 | [1] | SWITCH AS(RH MAIN BURNER) | |
| | M | | METRIC PART |
