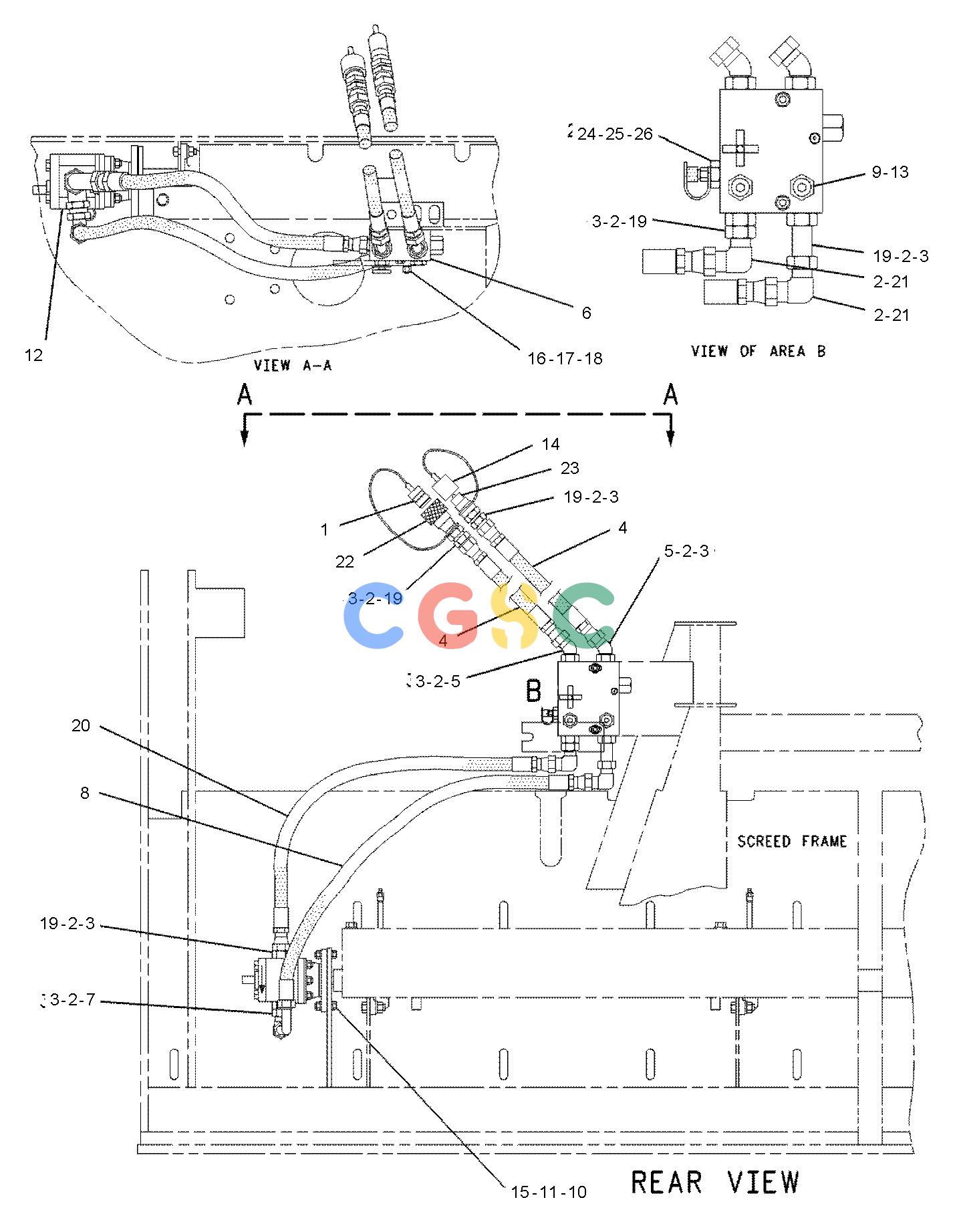

卡特零件查询（10B） 116-6835: LINES GP-VIBRATORY
广数供应链运营团队, 17 02月, 2025，浏览：
692 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 5R-5718 | [1] | PLUG-DUST | |
| 2. | 6V-9746 | [10] | SEAL-O-RING | |
| 3. | 3D-2824C | [8] | SEAL-O-RING | |
| 4. | 116-8207I | [2] | HOSE AS | |
| 5. | 6V-9004 | [2] | ELBOW | |
| 6. | 138-4308Y | [1] | VALVE GP-CONTROL(VIBRATORY) | |
| 7. | 6V-9007 | [1] | ELBOW | |
| 8. | 116-8684I | [1] | HOSE AS | |
| 9. | 9S-8005 | [2] | PLUG(3/4-16-THD) | |
| 10. | 6V-8188C | [2] | NUT(1/2-13-THD) | |
| 11. | 8T-4223C | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 12. | 139-2373CY | [1] | MOTOR GP-GEAR | |
| 13. | 3K-0360C | [2] | SEAL-O-RING | |
| 14. | 5R-5719 | [1] | CAP-DUST | |
| 15. | 8T-8919C | [2] | BOLT(1/2-13X1.75-IN) | |
| 16. | 7X-0290 | [2] | BOLT(3/8-16X3.5-IN) | |
| 17. | 8T-4896C | [2] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 18. | 6V-8801C | [2] | NUT(3/8-16-THD) | |
| 19. | 6V-8637C | [5] | CONNECTOR | |
| 20. | 116-8685I | [1] | HOSE AS | |
| 21. | 6V-9853 | [2] | ELBOW | |
| 22. | 5R-6304 | [1] | COUPLER AS-QUICK DISCONNECT(FEMALE) | |
| | 3S-9233 | [1] | SEAL-O-RING | |
| | | [1] | RETAINER |
| 23. | 5R-6305 | [1] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| 24. | 3J-7354 | [1] | SEAL-O-RING | |
| 25. | 6V-0852 | [1] | CAP-DUST | |
| 26. | 7X-5315 | [1] | FITTING AS(QUICK DISCONNECT) | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | Y | | SEPARATE ILLUSTRATION |
