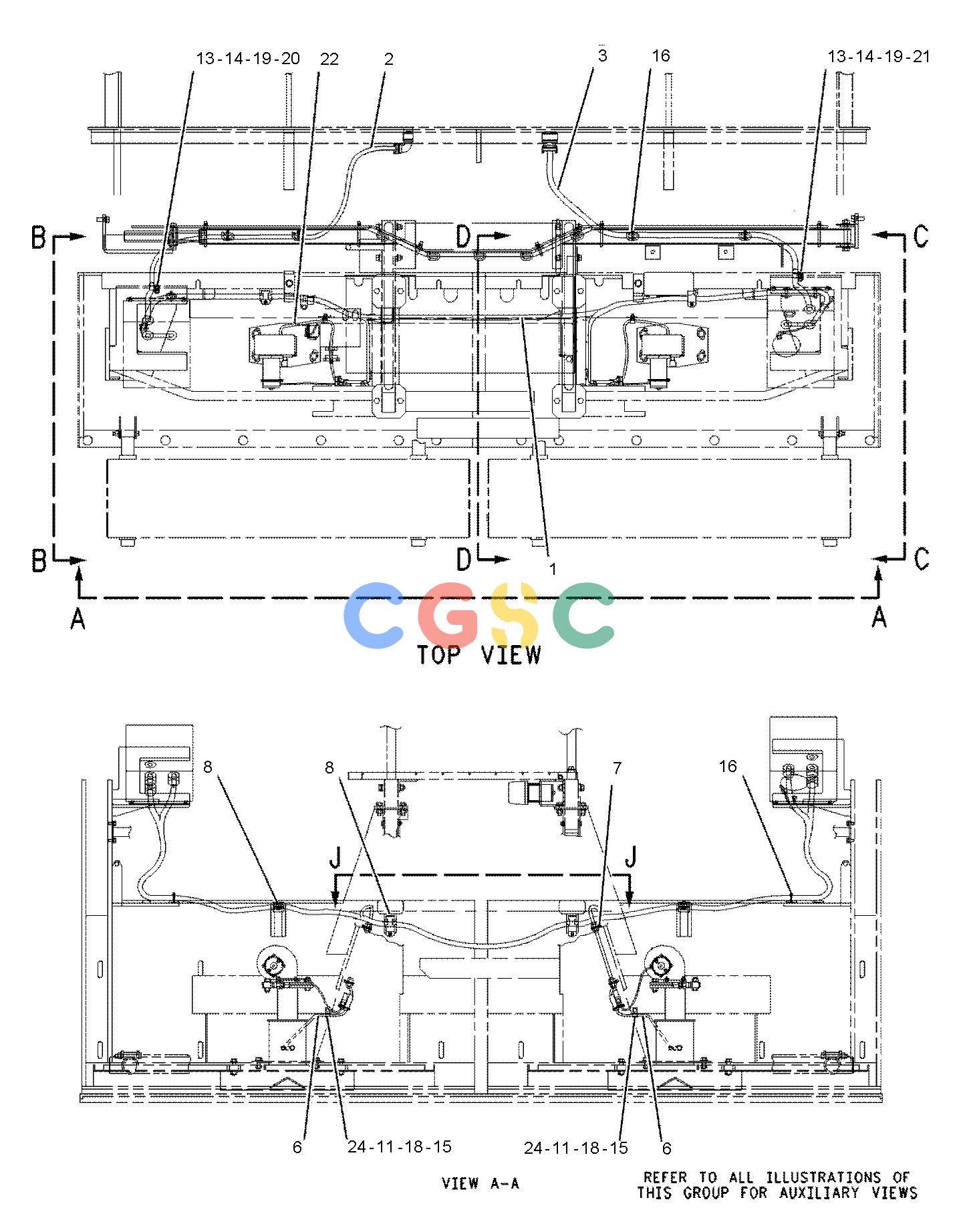

卡特零件查询（10B） 188-0918: WIRING GP-SCREED
广数供应链运营团队, 17 02月, 2025，浏览：
139 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 186-3482 | [1] | HARNESS AS-POWER | |
| | 9X-1813BE | | SLEEVE | |
| | 155-2270 | [3] | KIT-CONNECTING PLUG(2-PIN) | |
| | 102-8802 | [5] | KIT-RECEPTACLE(2-PIN) | |
| | 3T-0203 | [2] | PLUG AS-CONNECTOR(20-PIN) | |
| | 6R-0146 | [2] | SEAL-TERMINAL | |
| | 7G-7917 | [24] | PLUG-SEAL | |
| | 7G-7918 | [2] | PLUG-SEAL | |
| | 7G-8238 | [2] | PLUG AS-CONNECTOR | |
| | 7K-1181 | [4] | STRAP-CABLE | |
| | 8N-1535 | [4] | BELL AS-END | |
| | 8T-8737 | [10] | PLUG-SEAL | |
| 2. | 115-1476 | [1] | HARNESS AS-SCREED(PAVER TO SCREED, POWER) | |
| | 105-9151 | [1] | PLUG | |
| 3. | 172-6086 | [1] | HARNESS AS-SCREED(PAVER TO SCREED, CONTROL) | |
| 4. | 176-0969Y | [1] | BOX GP-JUNCTION | |
| 5. | 176-0970Y | [1] | BOX GP-JUNCTION | |
| 6. | 103-7346 | [2] | WIRE AS | |
| 7. | 3S-2093 | [28] | STRAP-CABLE | |
| 8. | 077-8184 | [4] | CLAMP | |
| 9. | 3V-4694 | [4] | PLUG-BUTTON | |
| 10. | 125-7050 | [2] | HARNESS AS-SCREED(FEEDER CONTROL) | |
| | | | (EACH INCLUDES) |
| | 7G-7917 | [9] | PLUG-SEAL | |
| | 7G-7920 | [1] | PLUG-SEAL | |
| | 8N-1531 | [1] | PLUG AS-CONNECTOR(12-PIN) | |
| 11. | 8T-4205 | [10] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 12. | 7T-0969 | [1] | HORN AS(24-VOLT, LOW TONE) | |
| | 8C-7581M | [2] | SCREW-MACHINE(M4X0.7X8-MM) | |
| | 9B-7233 | [2] | LOCKWASHER | |
| | 096-6166 | [2] | WASHER-HARD(4.5X9X1-MM THK) | |
| 13. | 8T-4224 | [5] | WASHER-HARD(8.8X16X2-MM THK) | |
| 14. | 6V-8189 | [4] | NUT(5/16-18-THD) | |
| 15. | 4M-5281 | [2] | BOLT(1/4-20X0.75-IN) | |
| 16. | 7K-1181 | [12] | STRAP-CABLE | |
| 17. | 8T-8908 | [8] | BOLT(1/4-20X1-IN) | |
| 18. | 2D-6235 | [10] | LOCKNUT(1/4-20-THD) | |
| 19. | 6V-8918 | [2] | BOLT(5/16-18X1.25-IN) | |
| 20. | 8M-2773 | [3] | CLIP(LOOP) | |
| 21. | 7C-4354 | [1] | CLIP | |
| 22. | 141-9273 | [2] | GLOW PLUG(24-VOLT) | |
| 23. | 4M-6425 | [1] | BOLT(5/16-18X1-IN) | |
| 24. | 2V-3216 | [2] | CLIP | |
| | B | | USE AS REQUIRED |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
