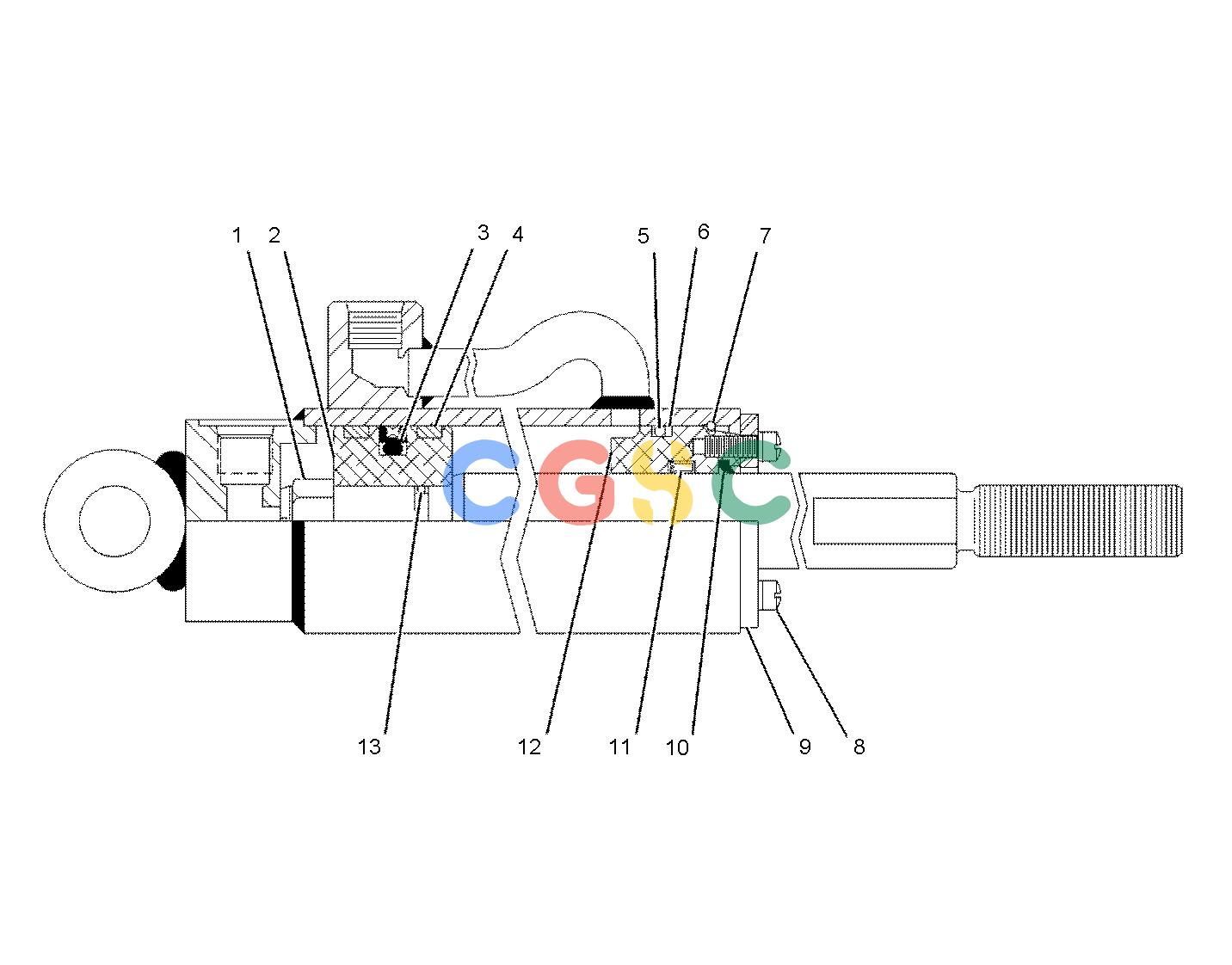

卡特零件查询（10B） 162-9209: CYLINDER GP-HYDRAULIC
广数供应链运营团队, 17 02月, 2025，浏览：
217 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 068-5120 | [1] | LOCKNUT(3/4-16-THD) | |
| 2. | 183-2278J | [1] | PISTON | |
| 3. | 180-6540J | [1] | SEAL AS | |
| 4. | 183-1245J | [2] | RING-WEAR | |
| 5. | 1H-9696J | [1] | SEAL-O-RING | |
| 6. | 1S-0670J | [1] | RING-BACKUP | |
| 7. | 098-3337 | [1] | LOCKWIRE | |
| 8. | 6F-9258 | [2] | SCREW-MACHINE | |
| 9. | 087-0929 | [1] | WASHER | |
| 10. | 087-0931J | [1] | WIPER | |
| 11. | 087-0932J | [1] | SEAL | |
| 12. | 183-2280 | [1] | SLEEVE | |
| 13. | 6F-4855 | [1] | SEAL-O-RING | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 183-2283J | [1] | KIT-SEAL | |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
