卡特零件查询（10B） 115-4505: LINES GP-STRIKE-OFF
广数供应链运营团队, 17 02月, 2025，浏览：
455 次

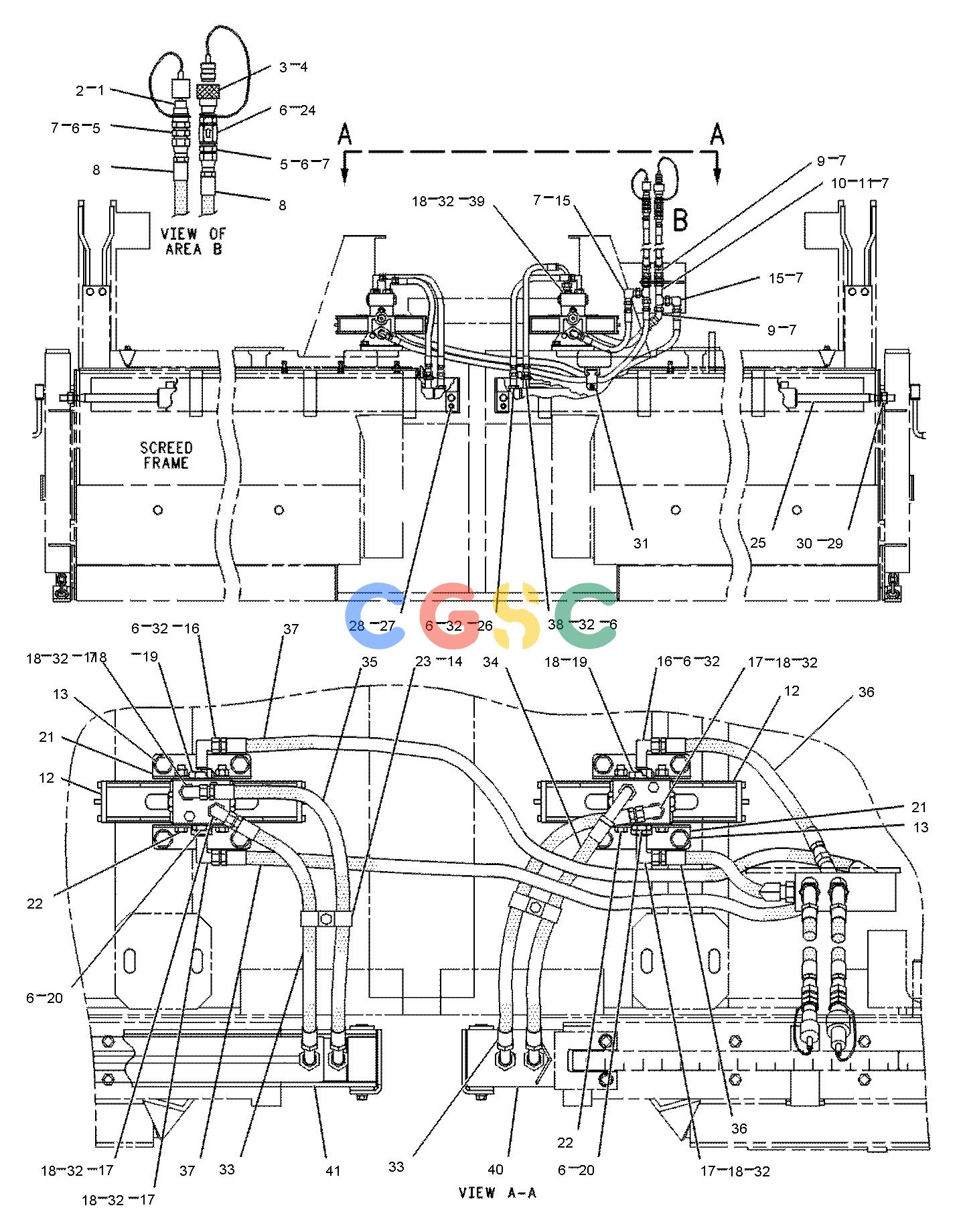

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 5R-6867 | [1] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| 2. | 5R-5677 | [1] | CAP-DUST(DUST) | |
| 3. | 5R-6868 | [1] | COUPLER AS-QUICK DISCONNECT(FEMALE) | |
| 4. | 5R-5676 | [1] | PLUG-DUST | |
| 5. | 6V-9873 | [2] | CONNECTOR | |
| 6. | 3J-1907 | [11] | SEAL-O-RING | |
| 7. | 6V-8398 | [13] | SEAL-O-RING | |
| 8. | 8I-0683I | [2] | HOSE AS | |
| 9. | 8C-8989 | [3] | ELBOW | |
| 10. | 8T-6895 | [2] | TEE-UNION | |
| 11. | 6V-9169 | [2] | NUT(13/16-16-THD) | |
| 12. | 103-3602Y | [2] | VALVE GP-SOLENOID | |
| 13. | 5P-2228 | [8] | BOLT(1/2-13X1-IN) | |
| | 8T-4223 | [8] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 14. | 4M-6425 | [2] | BOLT(5/16-18X1-IN) | |
| | 8T-4224 | [4] | WASHER-HARD(8.8X16X2-MM THK) | |
| | 6V-8189 | [2] | NUT(5/16-18-THD) | |
| 15. | 6V-9851 | [2] | ELBOW | |
| 16. | 6V-8724 | [2] | ELBOW | |
| 17. | 6V-8723 | [5] | ELBOW | |
| 18. | 3K-0360 | [8] | SEAL-O-RING | |
| 19. | 9S-4185 | [2] | PLUG(3/4-16-THD) | |
| 20. | 9S-4191 | [2] | PLUG(9/16-18-THD) | |
| 21. | 8I-0691 | [4] | BRACKET | |
| 22. | 8T-8915 | [4] | BOLT(3/8-16X3.25-IN) | |
| | 8T-4896 | [4] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| | 6V-8801 | [4] | NUT(3/8-16-THD) | |
| 23. | 8M-2773 | [4] | CLIP(LOOP) | |
| 24. | 107-5759 | [1] | FITTING-ORIFICE | |
| 25. | 110-7840 | [2] | CYLINDER | |
| 26. | 9X-2297 | [2] | CONNECTOR | |
| 27. | 4M-5281 | [2] | BOLT(1/4-20X0.75-IN) | |
| 28. | 8T-4205 | [2] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 29. | 8T-4994 | [2] | WASHER-HARD(20X36.5X3.5-MM THK) | |
| 30. | 6V-8182 | [2] | NUT(3/4-10-THD) | |
| 31. | 077-8184 | [2] | CLAMP | |
| 32. | 6V-8397 | [12] | SEAL-O-RING | |
| 33. | 116-5898I | [2] | HOSE AS | |
| 34. | 116-5899I | [1] | HOSE AS | |
| 35. | 116-5900I | [1] | HOSE AS | |
| 36. | 116-5901I | [2] | HOSE AS | |
| 37. | 116-5902I | [2] | HOSE AS | |
| 38. | 6V-8636 | [2] | CONNECTOR | |
| 39. | 6V-8634 | [1] | CONNECTOR | |
| 40. | 116-6982 | [1] | COVER AS | |
| 41. | 116-6983 | [1] | COVER AS | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | Y | | SEPARATE ILLUSTRATION |
