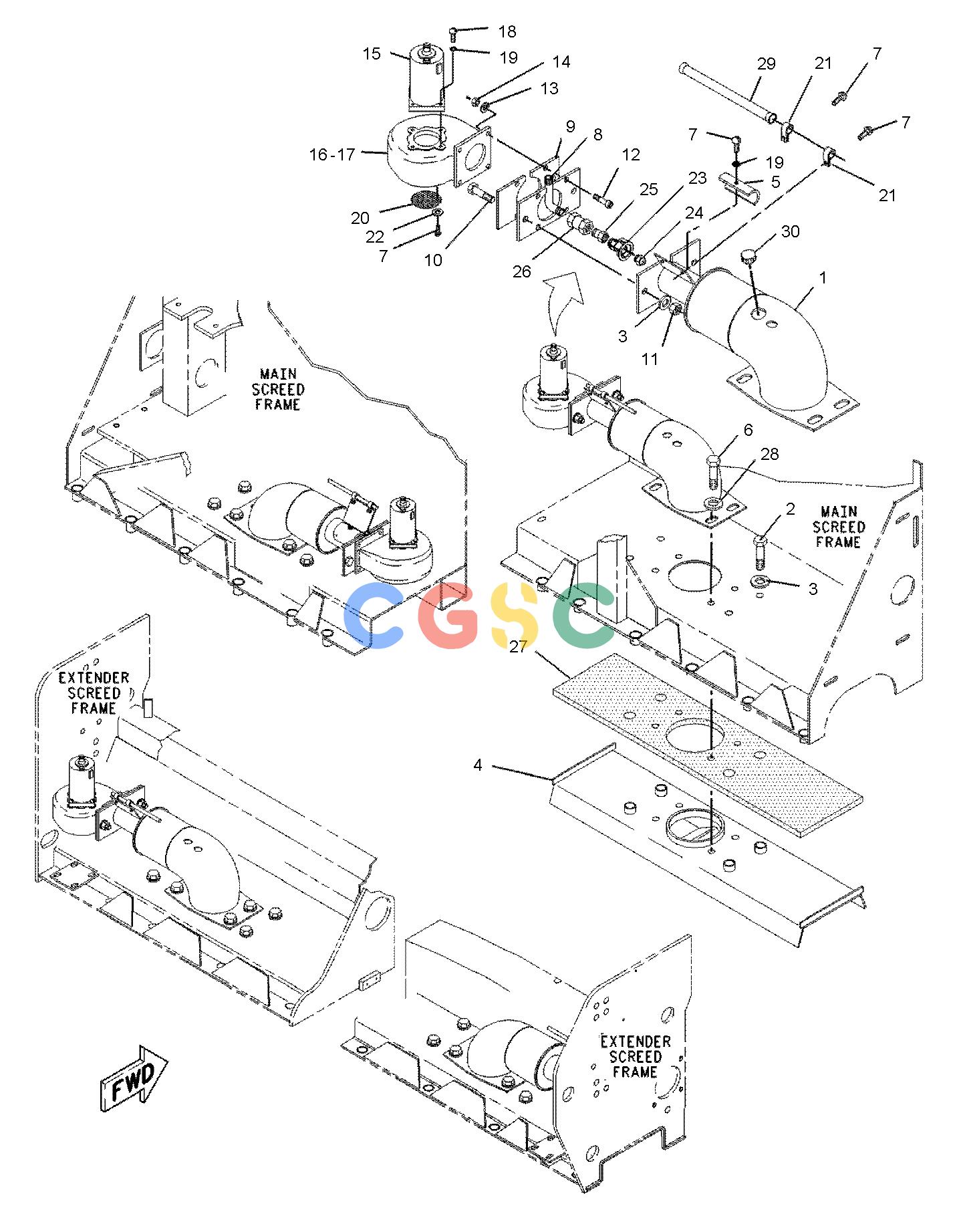

卡特零件查询（8） 8I-0556: SCREED AR
广数供应链运营团队, 17 02月, 2025，浏览：
316 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 8I-0257Y | [1] | ADJUSTER GP-HEIGHT | |
| | 8I-0341Y | [1] | ARM GP-DROP | |
| | 8I-0153Y | [1] | BURNER GP | |
| | 8I-0337Y | [1] | CONTROL GP-THICKNESS | |
| | 8I-0584Y | [1] | CROWN GP | |
| | | | -OR- |
| | 120-5898Y | [1] | CROWN GP-MANUAL | |
| | 8I-0734Y | [1] | CROWN GP-MANUAL | |
| | 8I-0291Y | [1] | DEFLECTOR GP | |
| | 8I-0469Y | [1] | FINISH GP | |
| | 8I-0001Y | [1] | FRAME GP-SCREED(8-FT TO 16-FT HYD EXT) | |
| | | | -OR- |
| | 120-5906Y | [1] | FRAME GP-SCREED(8-FT) | |
| | 8I-0473Y | [1] | GATE GP-END | |
| | | | -OR- |
| | 120-4568Y | [1] | GATE GP-END | |
| | | | S/N 3GL1-235 |
| | 145-9437Y | [1] | GATE GP-END | |
| | | | S/N 3GL236-UP |
| | 8I-0732Y | [1] | ADJUSTER GP-HEIGHT | |
| | 8I-0656Y | [1] | LINES GP-BURNER | |
| | 8I-0604Y | [1] | LINES GP-EXTENSION | |
| | 8I-0600Y | [1] | LINES GP-VIBRATORY | |
| | 8I-0176Y | [1] | PLATE GP-SCREED(DIESEL HEAT) | |
| | 8I-0405Y | [1] | PLATFORM GP | |
| | 8I-0213Y | [1] | SLOPER GP-MANUAL | |
| | 8I-0730Y | [1] | SLOPER GP-MANUAL | |
| | 8I-0142Y | [1] | VIBRATORY GP | |
| | 8I-0594Y | [1] | WIRING GP-SCREED | |
| | Y | | SEPARATE ILLUSTRATION |
