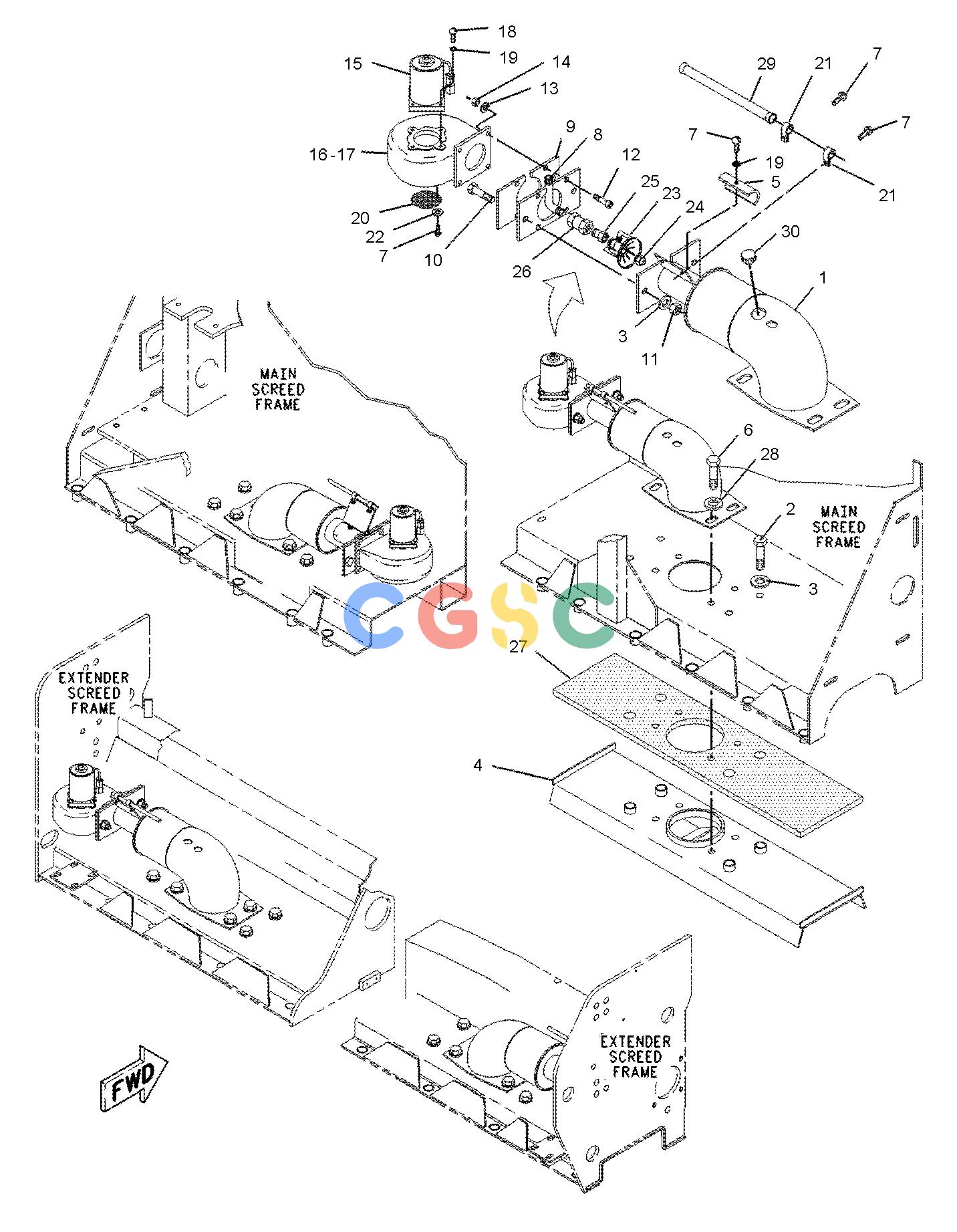

卡特零件查询（8） 8I-0153: BURNER GP
广数供应链运营团队, 17 02月, 2025，浏览：
492 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8I-0157 | [4] | CHAMBER AS-UPPER BURNER | |
| 2. | 8T-4835 | [16] | BOLT(1/2-13X2-IN) | |
| 3. | 8T-4223 | [24] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 4. | 8I-0155 | [4] | CHAMBER AS(LOWER) | |
| 5. | 8T-8013 | [4] | GLOW PLUG(12-VOLT) | |
| 6. | 8T-8917 | [16] | BOLT(1/2-13X1.25-IN) | |
| 7. | 104-2231 | [16] | NUT-SPRING | |
| 8. | 8I-0997 | [4] | CONNECTOR AS | |
| 9. | 8I-0998 | [4] | BRACKET-MOUNTING | |
| 10. | 5P-2566 | [8] | BOLT(1/2-13X1.5-IN) | |
| 11. | 6V-8188 | [8] | NUT(1/2-13-THD) | |
| 12. | 8M-6802 | [16] | SCREW-HEX SOCKET(1/4-20X1-IN) | |
| 13. | 8T-4205 | [16] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 14. | 6V-8185 | [16] | NUT(1/4-20-THD) | |
| 15. | 103-7347 | [4] | MOTOR AS | |
| | | | (EACH INCLUDES) |
| | 1G-8172 | [1] | MOTOR-BLOWER | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | 3E-3365 | [1] | WEDGE-RECEPTACLE LOCK(2-PIN) | |
| | 9W-0852 | [2] | PIN-CONNECTOR(14-GA TO 16-GA) | |
| | 9X-1813BE | | SLEEVE | |
| 16. | 102-2697 | [4] | WHEEL-BLOWER | |
| 17. | 102-2698 | [4] | HOUSING-BLOWER | |
| 18. | 2S-6895 | [16] | SCREW(10-32X0.75-IN) | |
| 19. | 9F-8125 | [16] | LOCKWASHER | |
| 20. | 102-2736 | [4] | SCREEN-INLET | |
| 21. | 6V-4648 | [8] | SCREW | |
| 22. | 4B-4274 | [8] | WASHER(5.5X13X1.2-MM THK) | |
| 23. | 102-2706 | [4] | RING-FLAME | |
| 24. | 102-2688 | [4] | NOZZLE | |
| 25. | 102-2725 | [4] | ADAPTER | |
| 26. | 102-2696 | [4] | VALVE-CHECK | |
| 27. | 8I-0164B | [4] | INSULATION | |
| 28. | 5P-1076 | [16] | WASHER-HARD(13.5X30X4-MM THK) | |
| 29. | 104-1797D | [4] | TUBE | |
| 30. | 104-1800 | [8] | CLAMP-TUBE | |
| 31. | 5F-5442 | [8] | SCREW-TAPPING | |
| 32. | 1H-4393 | [8] | LOCKWASHER | |
| | | | QUANTITIES SHOWN ARE THOSE REQUIRED FOR BOTH LH & RH SIDES |
| | B | | USE AS REQUIRED |
| | D | | ORDER BY THE METER |
| | E | | ORDER BY THE CENTIMETER |
